3.3.4 AC Wiring
Cable range:
23~31 mm
1. The packing has a AC Plug (item 4, Table 2-1) please rotate it to release part A & B
shown as Figure 3-10.
2. Insert the cable into Part A (AC gland), and fix the internal wires (tighten by Φ2.5mm
wrench with 2.5 N・m torque) into Part B . (Figure 3-12)
3. Rotate part A & B as Figure 3-13 to fit and fix it onto the inverter.

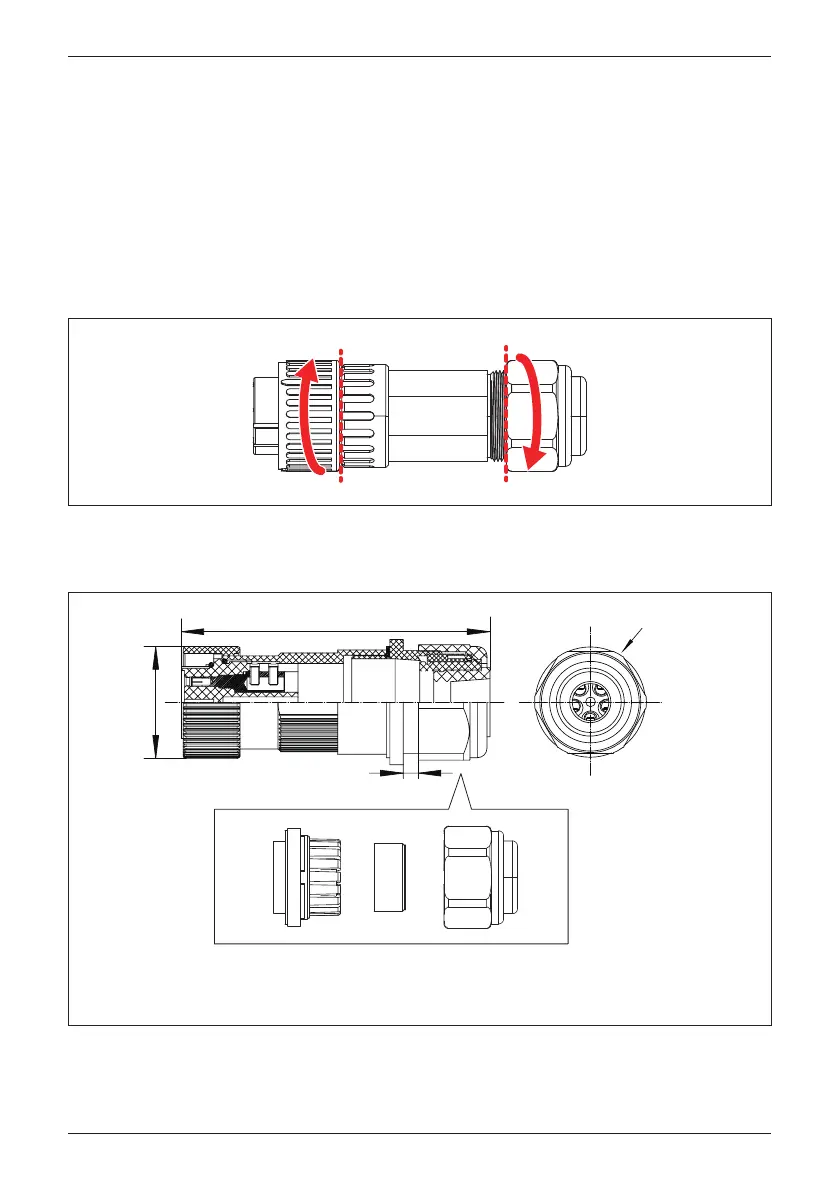

Figure 3-10 : Assemble the AC plug
* The connector is not designed for solid wire but only for stranded wires with end sleeves.
* The terminal gets a silver surface treatment.
Figure 3-11 : The rubber rings of AC gland
P
F
165.3 - 168.5 (REF)
Φ 60 ± 0.5
A
B
Part A
D1
Installation
26
