Delta M30A 230 User Manual

The communication module of M30A_230 is shown in Figure 3-17. It provides
VCC(12V), RS-485, dry contact, EPO, and digital input terminals for various
applications, and it can be extended to ability to use Sub_1G.
3.6 Communication Module Connections

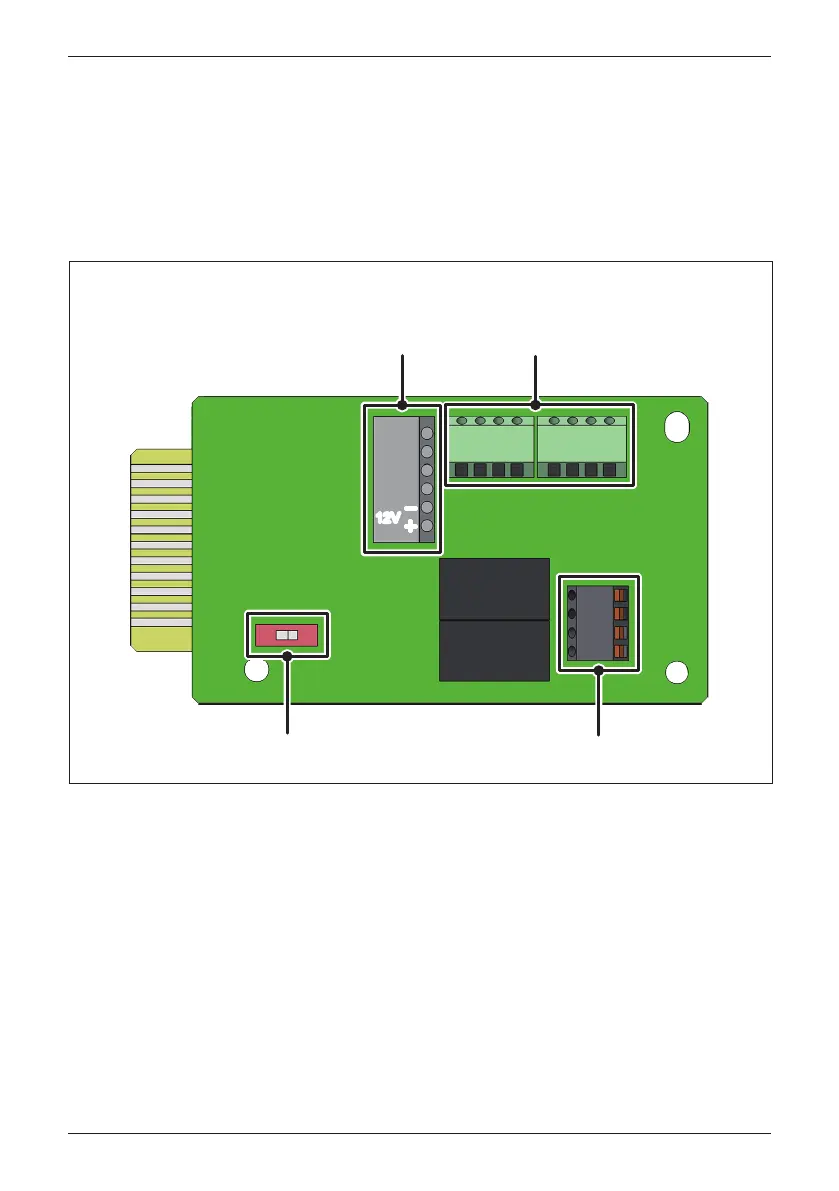

Figure 3-17: Communication module layout
Dry Contact x2
VCC & RS-485
V1 x1 & EPO x1
Digital Inputs x6
Terminal Resistor
+
12V
-
+
12V
-
ON
1
32
Installation

Delta M30A 230 Specifications

General

Phase	Single-Phase
Frequency	50/60 Hz
Input Voltage	230V
Output Voltage	230V
Protection	Overload, overvoltage, short circuit
Cooling	Fan
Storage Temperature	-20°C to 60°C
Humidity	5% to 95% (non-condensing)
