* Screw torque: 0.8 N•m * Screw torque: 0.6 N•m
* Screw torque: 0.8 N•m * Screw torque: 0.6 N•m
FAN 1
FAN 2

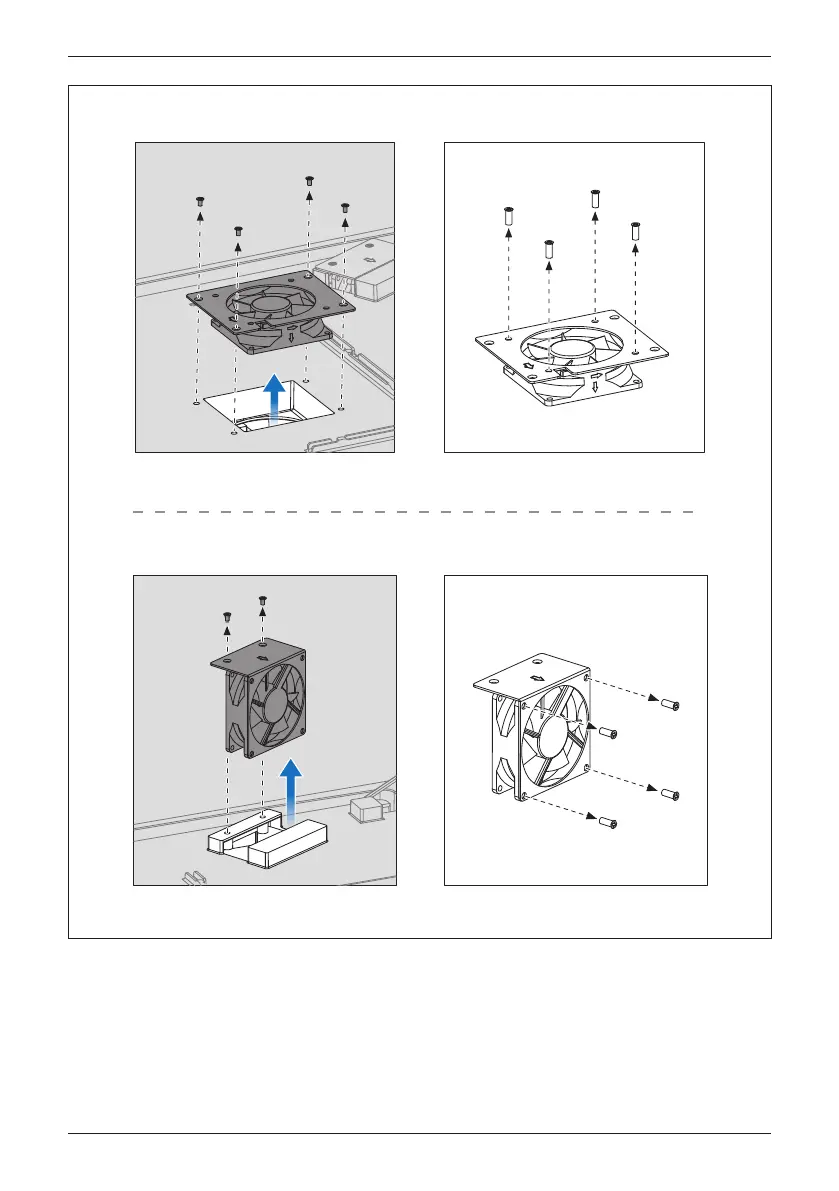

Figure 5-10: Replacement of internal fans
56
Maintenance
