Chapter 7 Optional AccessoriesMS300
95

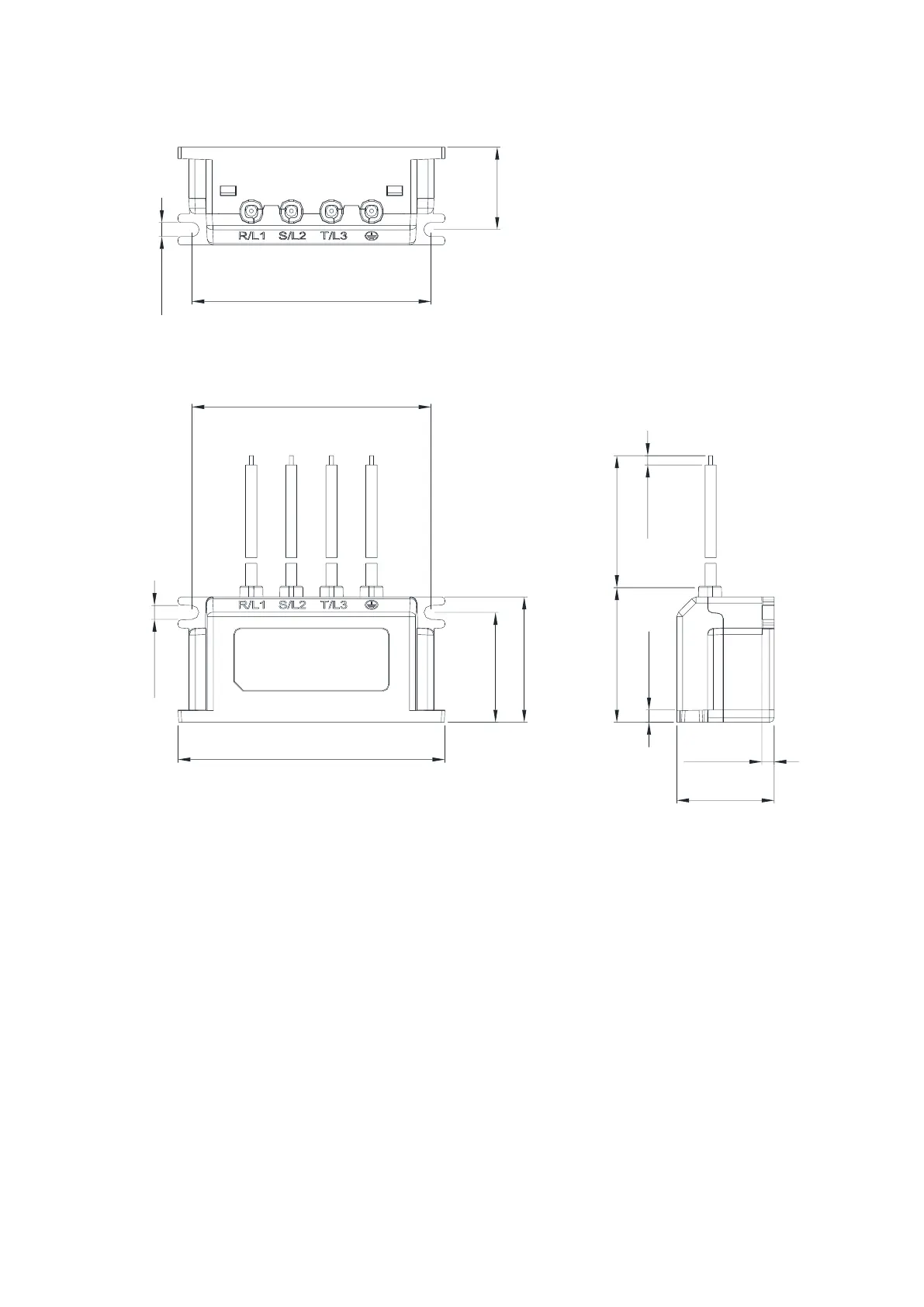

Dimensions:
CXY101-43A Unit: mm (inch)
Figure 7-48
86.5 [3.41]
35.5 [1.40]
40.5 [1.59]
77.5 [3.05]
4.5 [0.18]
350 [13.78]
10 [0.39]
43.5 [1.71]
4.0 [0.16]
31.6 [1.24]
4.0 [ 0.16]
77.5 [3.05]
26.6 [1.05]
4.5 [0.18]
