7-12 DIN-Rail Mounting
MKM-DRB (Applicable for Frame A and Frame B)
Screw
Torque
M4*2PCS
8–10 kg-cm
(6.9–8.7 lb-in.)
(0.78–0.98 Nm)
Table 7-55
Figure 7-72
MKM-DRC (Applicable for Frame C)
Screw
Torque
M5*4PCS
10–12 kg-cm
(8.7–10.4 lb-in.)
(0.98–1.18 Nm)
Table 7-56
Figure 7-73
72.0[2.83]
142.0[5.59]
8.0[0.31]
87.0[3.43] 8.0[0.31]
157.0[6.18]
10.2[0.40]
10.2[0.40]

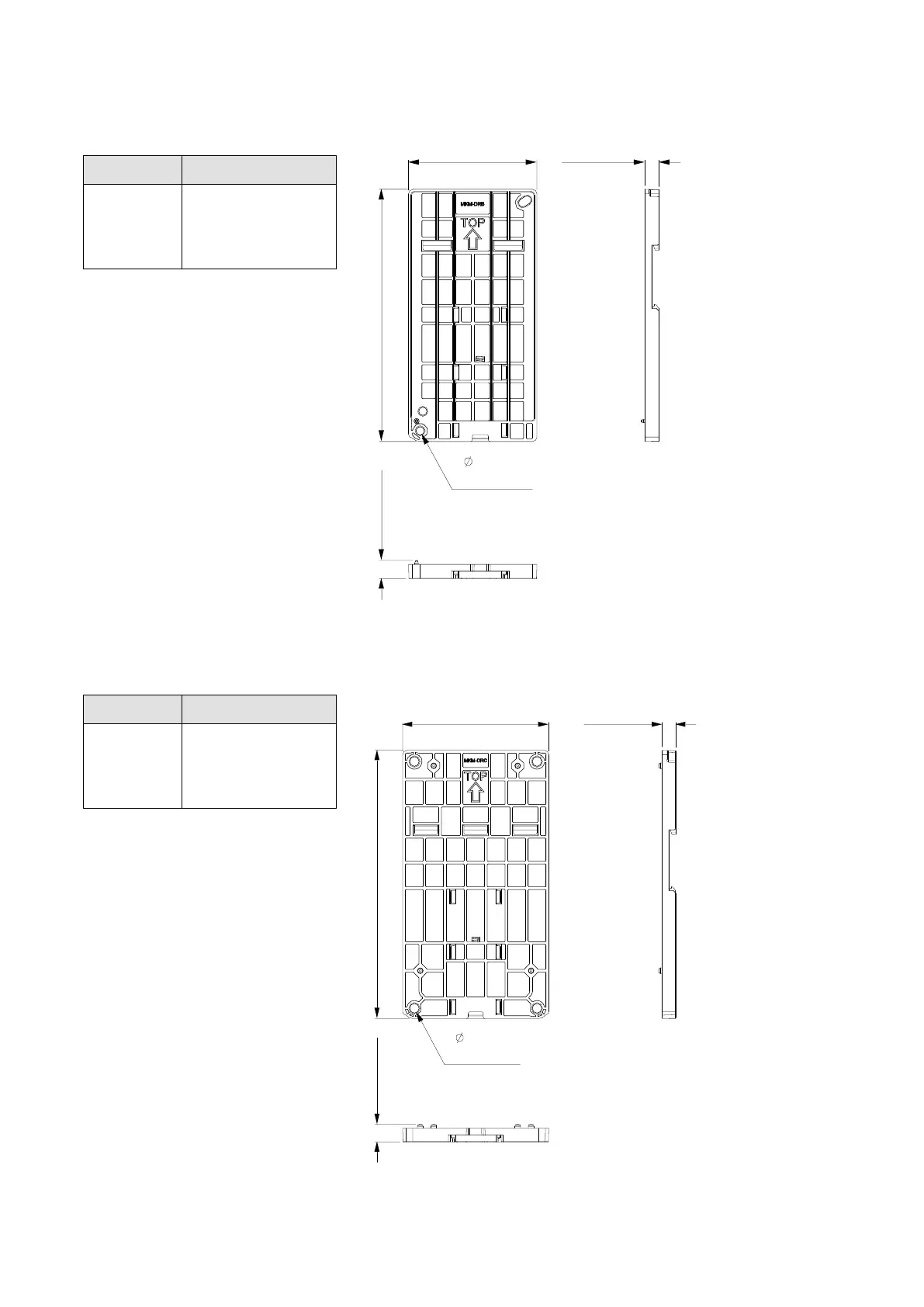

MKM-DRB
MKM-DRC
unit: mm[inch]
unit: mm[inch]
M4*2PCS
1.38~1.56 Nm
12.2~13.8 lb-in.
14~16 kg-cm
M5*4PCS
1.77~1.96 Nm
15.7~17.3 lb-in.
18~20 kg-cm
5.7[0.22]
(M5 NUT)
4.6[0.18]
(M4 NUT)
72.0[2.83]
142.0[5.59]
8.0[0.31]
87.0[3.43] 8.0[0.31]
157.0[6.18]
10.2[0.40]
10.2[0.40]
MKM-DRB
MKM-DRC
unit: mm[inch]
unit: mm[inch]
M4*2PCS
1.38~1.56 Nm
12.2~13.8 lb-in.
14~16 kg-cm
M5*4PCS
1.77~1.96 Nm
15.7~17.3 lb-in.
18~20 kg-cm
5.7[0.22]
(M5 NUT)
4.6[0.18]
(M4 NUT)
