Delta MS300 Series User Manual

Chapter 2 DimensionsMS300
11
2-2 Frame B
B1: VFD7A5MS23ANSAA; VFD7A5MS23ENSAA; VFD4A2MS43ANSAA; VFD4A2MS43ENSAA;
VFD3A0MS53ANSAA
B2: VFD4A8MS21ANSAA; VFD4A8MS21ENSAA
B3: VFD1A6MS21AFSAA; VFD2A8MS21AFSAA; VFD4A8MS21AFSAA; VFD1A5MS43AFSAA;
VFD2A7MS43AFSAA; VFD4A2MS43AFSAA

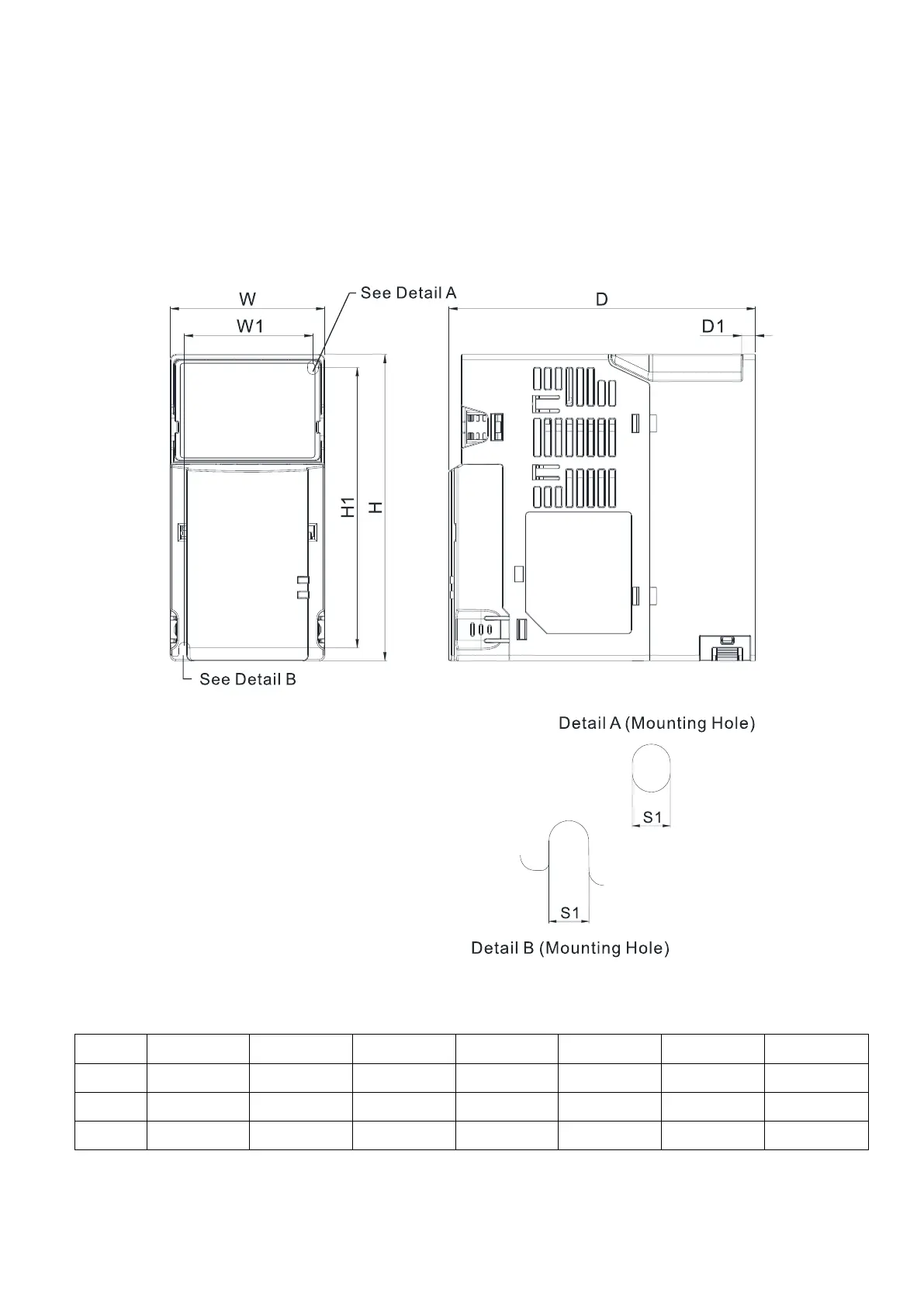

Figure 2-2
Unit: mm (inch)
Frame
W
H
D
W1
H1
D1
S1
B1
72.0 (2.83)
142.0 (5.59)
143.0 (5.63)
60.0 (2.36)
130.0 (5.63)
6.4 (0.25)
5.2 (0.20)
B2
72.0 (2.83)
142.0 (5.59)
143.0 (5.63)
60.0 (2.36)
130.0 (5.63)
3.0 (0.12)
5.2 (0.20)
B3
72.0 (2.83)
142.0 (5.59)
159.0 (6.26)
60.0 (2.36)
130.0 (5.63)
4.3 (0.17)
5.2 (0.20)
Table 2-2
