Frame B–F

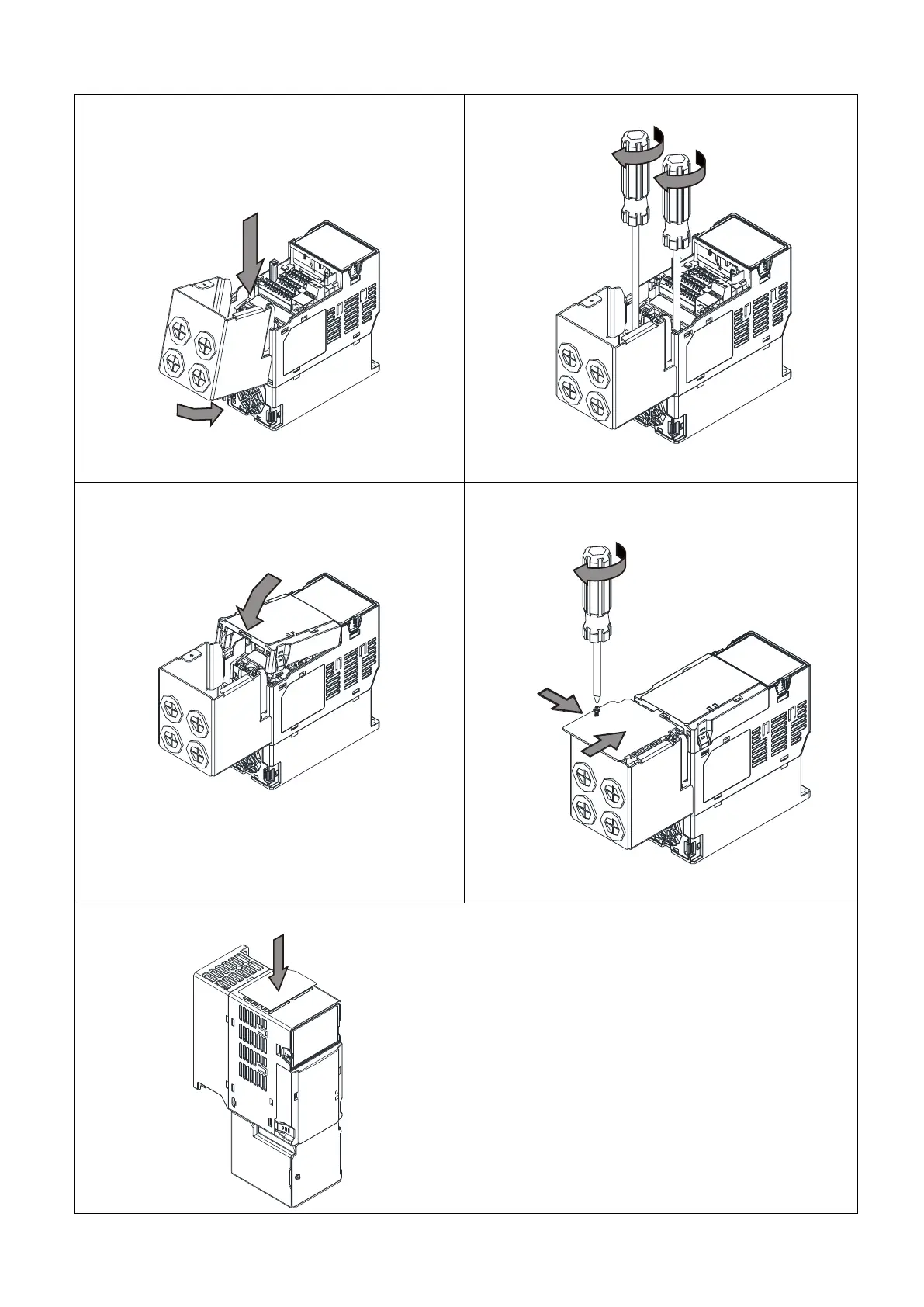

1) Aim the clips at the slots to assemble the
conduit box.
2) Tighten the screws to connect with the motor.
Figure 7-61
Figure 7-62
3) Install the front cover of the motor.
4) Install the front cover of the conduit box and
tighten the screw.
Figure 7-63
Figure 7-64
5) Attach the dust patch.
Figure 7-65
