Chapter 5 Main Circuit TerminalsMS300
29
Remove the front cover
Remove the front cover before wiring the main circuit terminals and control circuit terminals.
Remove the cover according to the figures below.
The example uses the Frame A model. For different frame size models, use the same removing
method.

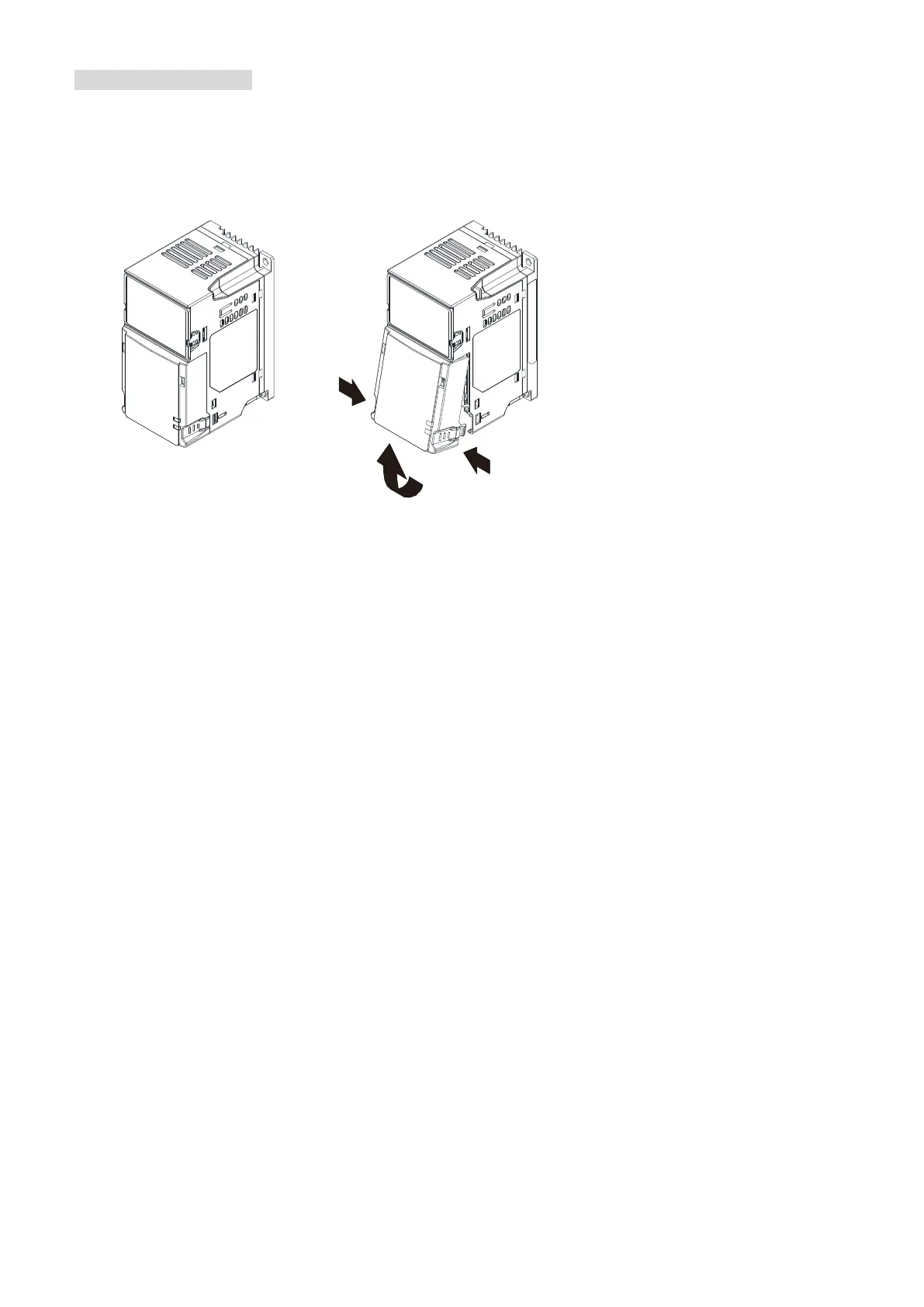

Figure 5-4
Press the clip on both sides, and then
remove the cover by rotating it.
