Delta MS300 Series - Page 82

Chapter 7 Optional AccessoriesMS300
73
Figure 7-15
Unit: mm

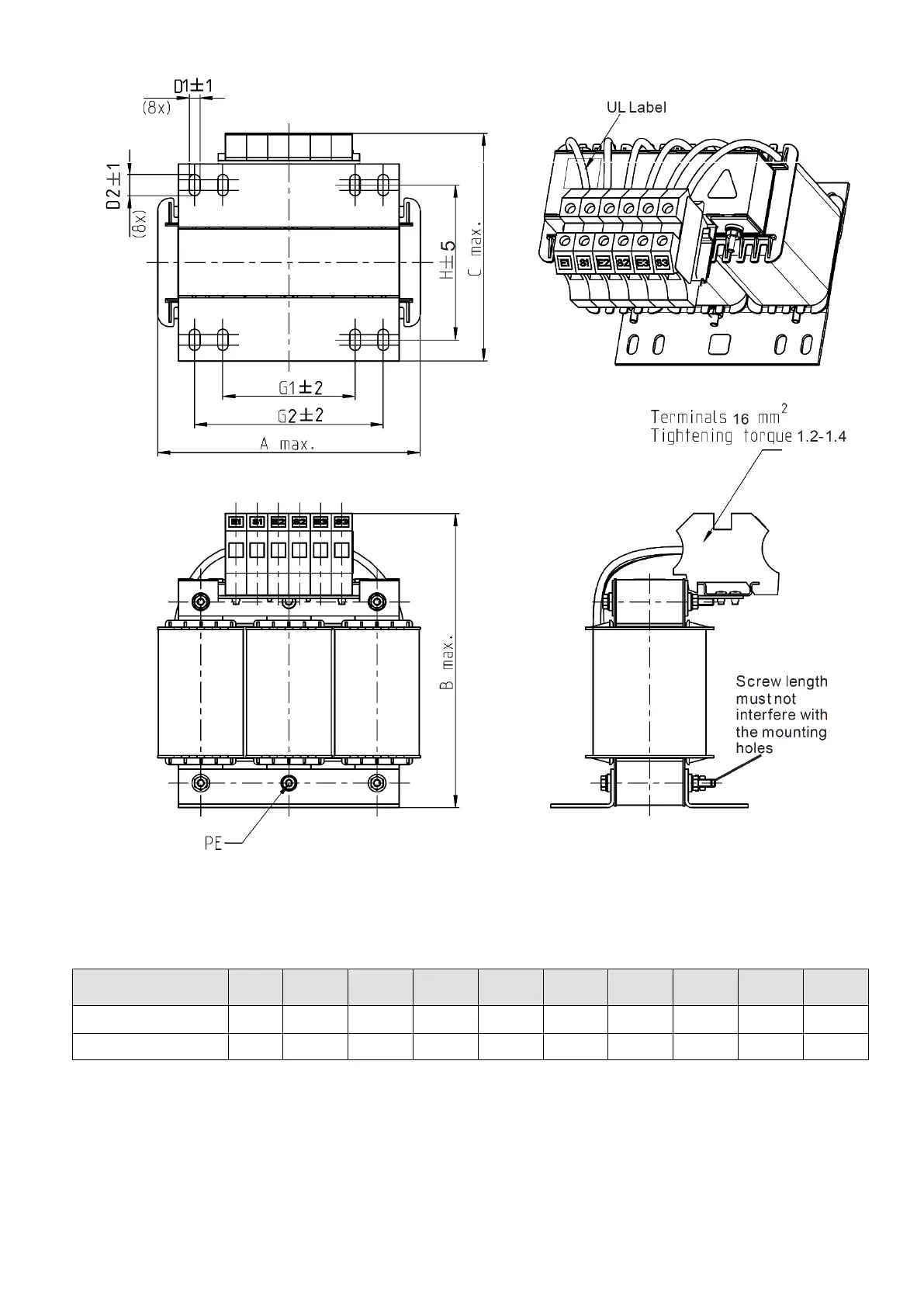

AC Output Reactors
Delta Part #
A
B
C
D1*D2
H
G
G1
Q
M
PE D
DR049LP215
180
205
175
6*12
115
85
122
16
1.2-1.4
M4
DR065LP162
180
215
185
6*12
115
85
122
35
2.5-3.0
M4
Table 7-31
