Chapter 7 Optional AccessoriesMS300
75

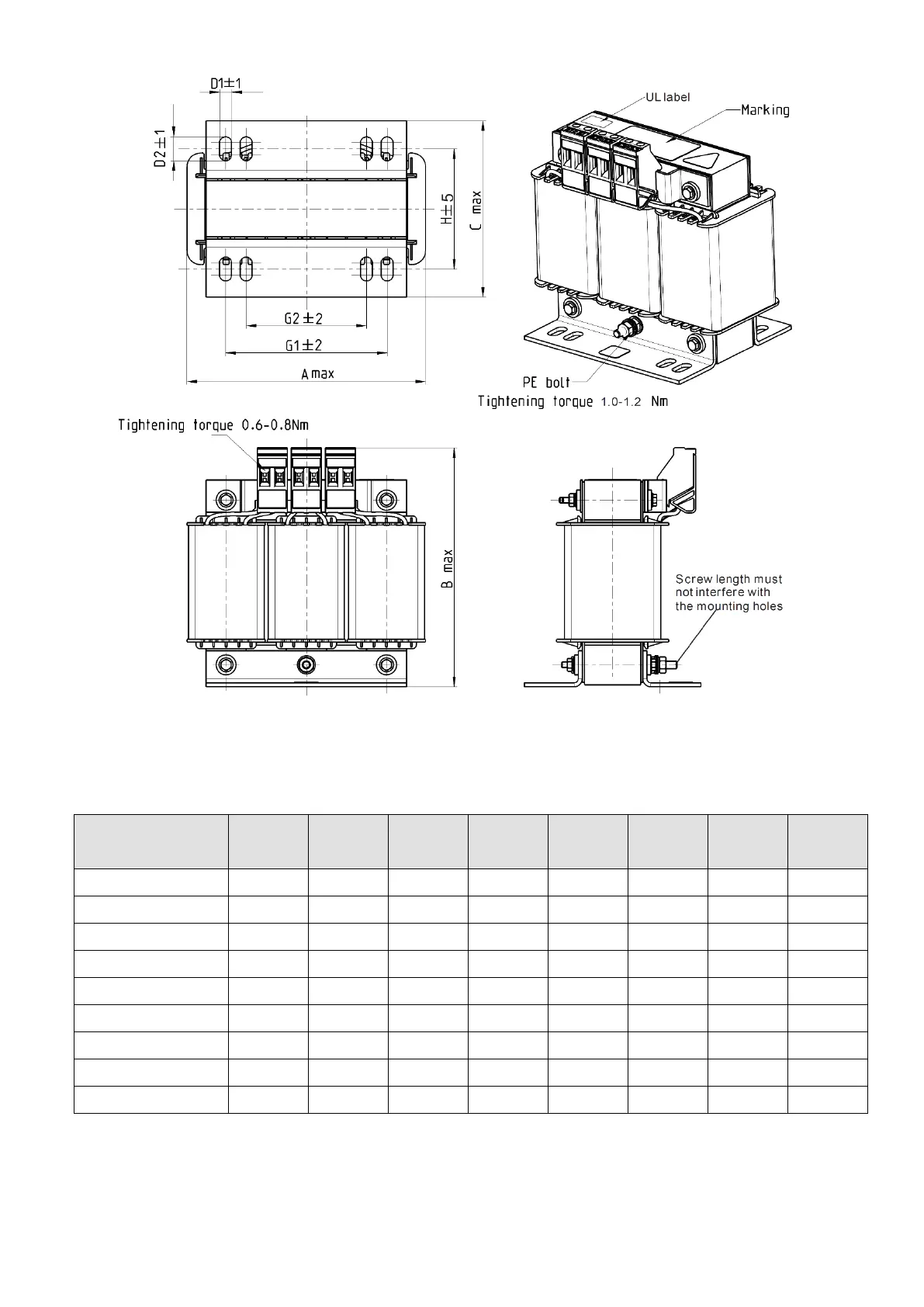

Figure 7-17
Unit: mm
AC Output
Reactors
Delta Part #
A
B
C
D1*D2
H
G1
G2
PE D
DR003L0810
96
115
65
6*9
42
60
40
M4
DR004L0607
120
135
95
6*12
60
80.5
60
M4
DR006L0405
120
135
95
6*12
60
80.5
60
M4
DR009L0270
150
160
100
6*12
74
107
75
M4
DR010L0231
150
160
115
6*12
88
107
75
M4
DR012L0202
150
160
115
6*12
88
107
75
M4
DR018L0117
150
160
115
6*12
88
107
75
M4
DR024LP881
150
160
115
6*12
88
107
75
M4
DR032LP660
180
190
145
6*12
114
122
85
M6
Table 7-33
