Chapter 7 Optional AccessoriesMS300
88
EMF27AM21B; EMF24AM23B
EMF33AM23B; EMF12AM43B
EMF23AM43B; EMF6A0M63B;
EMF16AM63B
Screw
Torque
M5 * 4
16–20 kg-cm / (13.9–17.3 lb-in.) / (1.56–1.96 Nm)
Table 7-48
Unit: mm (inch)

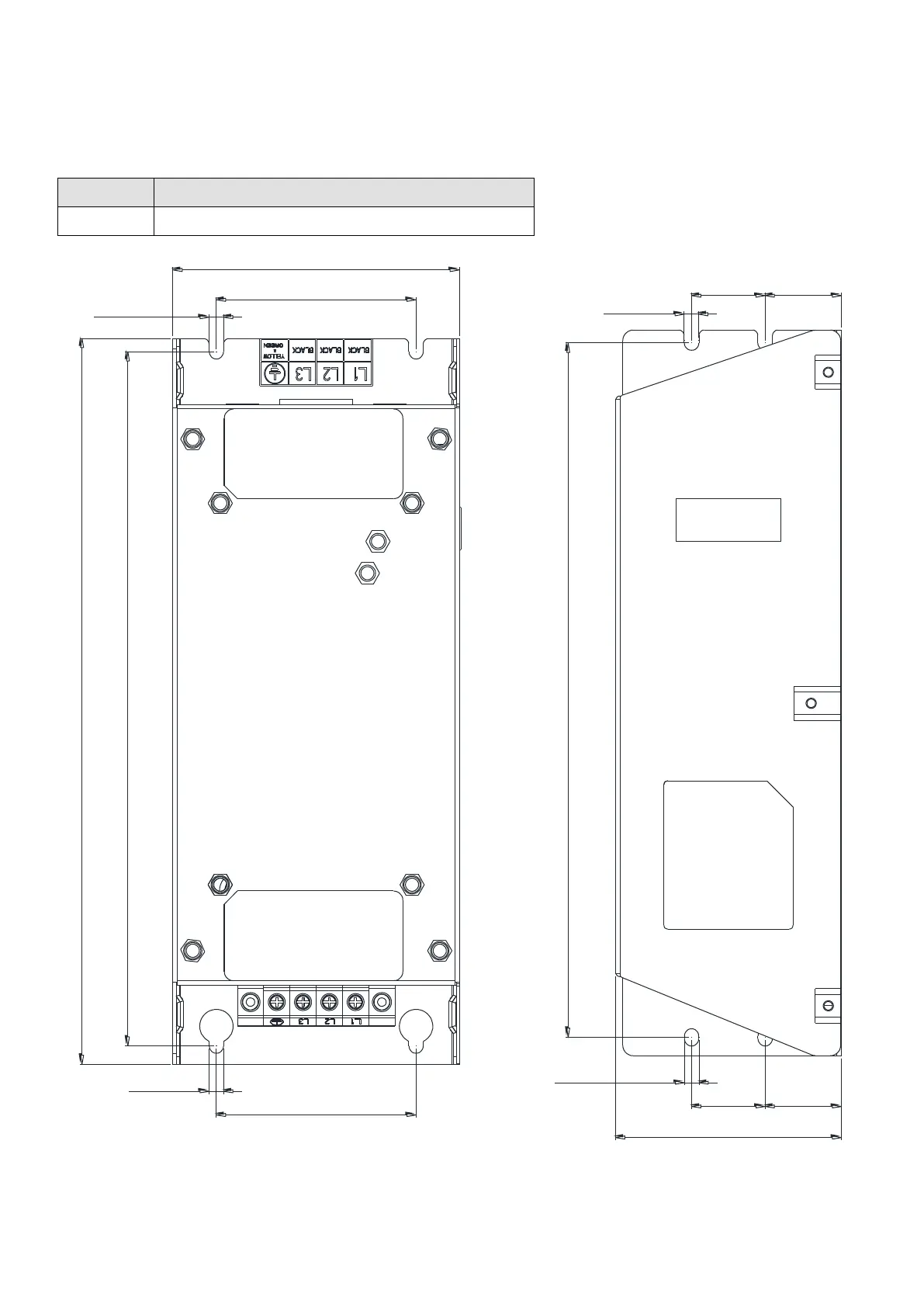

Figure 7-28
5.5 [0.22]
263.0 [10.35]
5.5 [0.22]
263.0 [10.35]
29.1 [1.14]
28.0 [1.10]
5.5 [0.22]
86.0 [3.39]
28.0 [1.10]
109.0 [4.29]
76.0 [2.99]
29.1 [1.14]
5.5 [0.22]
275.0 [10.83]
76.0 [2.99]
