RMC70 Startup Guide
44 Delta Computer Systems, Inc.

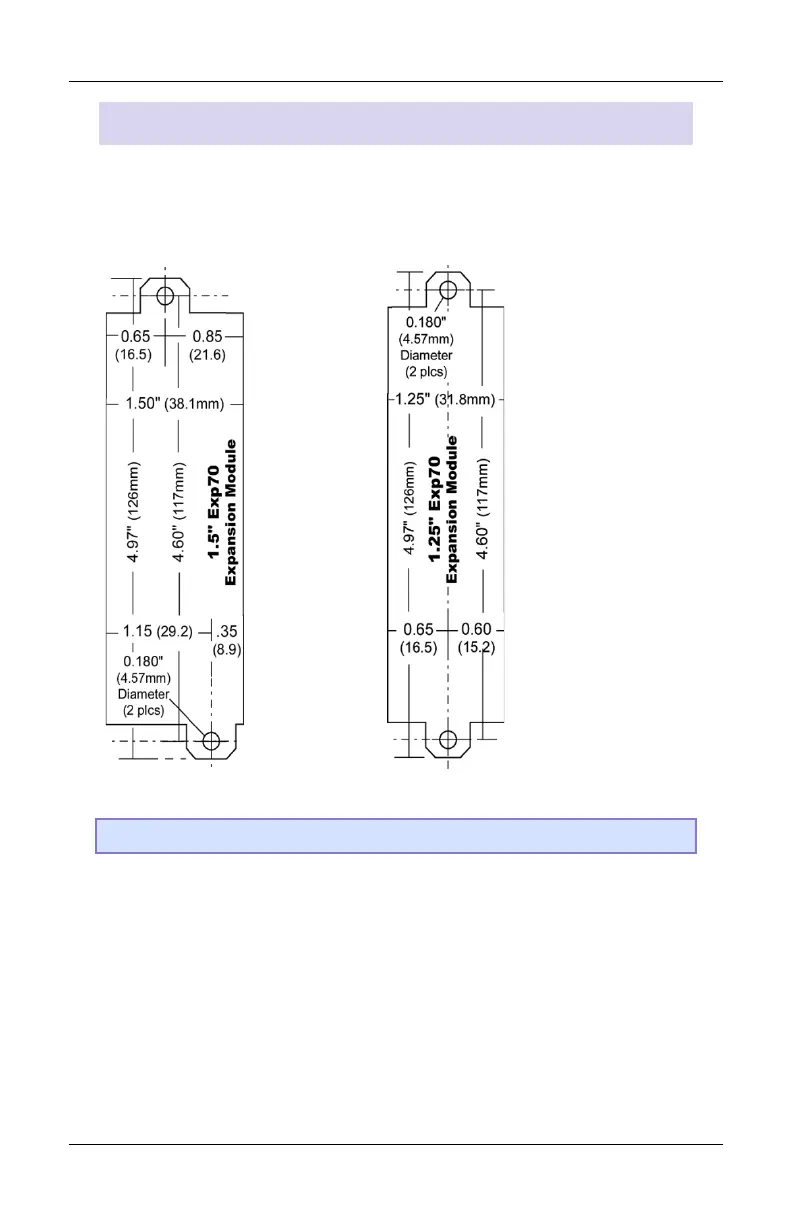

Expansion Modules
There are two different expansion module widths.
D8 AP2, A2, Q1
Note: Drawings are not 1:1 scale.
