Appendix B: Mounting Dimensions
deltamotion.com 43
Appendix B: Mounting Dimensions
This sections contains mounting hole dimensions for the RMC75 series
motion controller and expansion modules. Up to four expansion
modules may be added to the right side of the RMC75 base module.

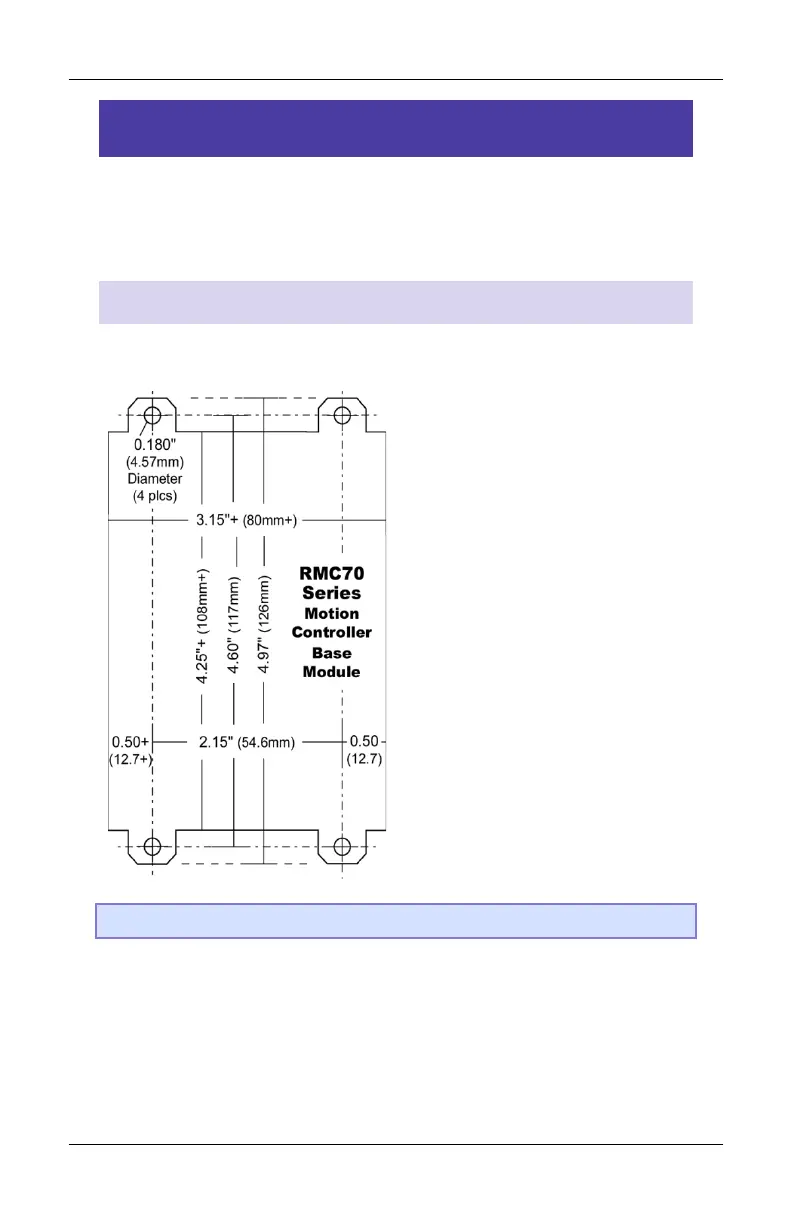

Base Module
RMC75S, RMC75P, RMC75E
Note: Drawing is not 1:1 scale.
