Delta RPI H3A

7
3 Product Overview
3.1 Dimensions

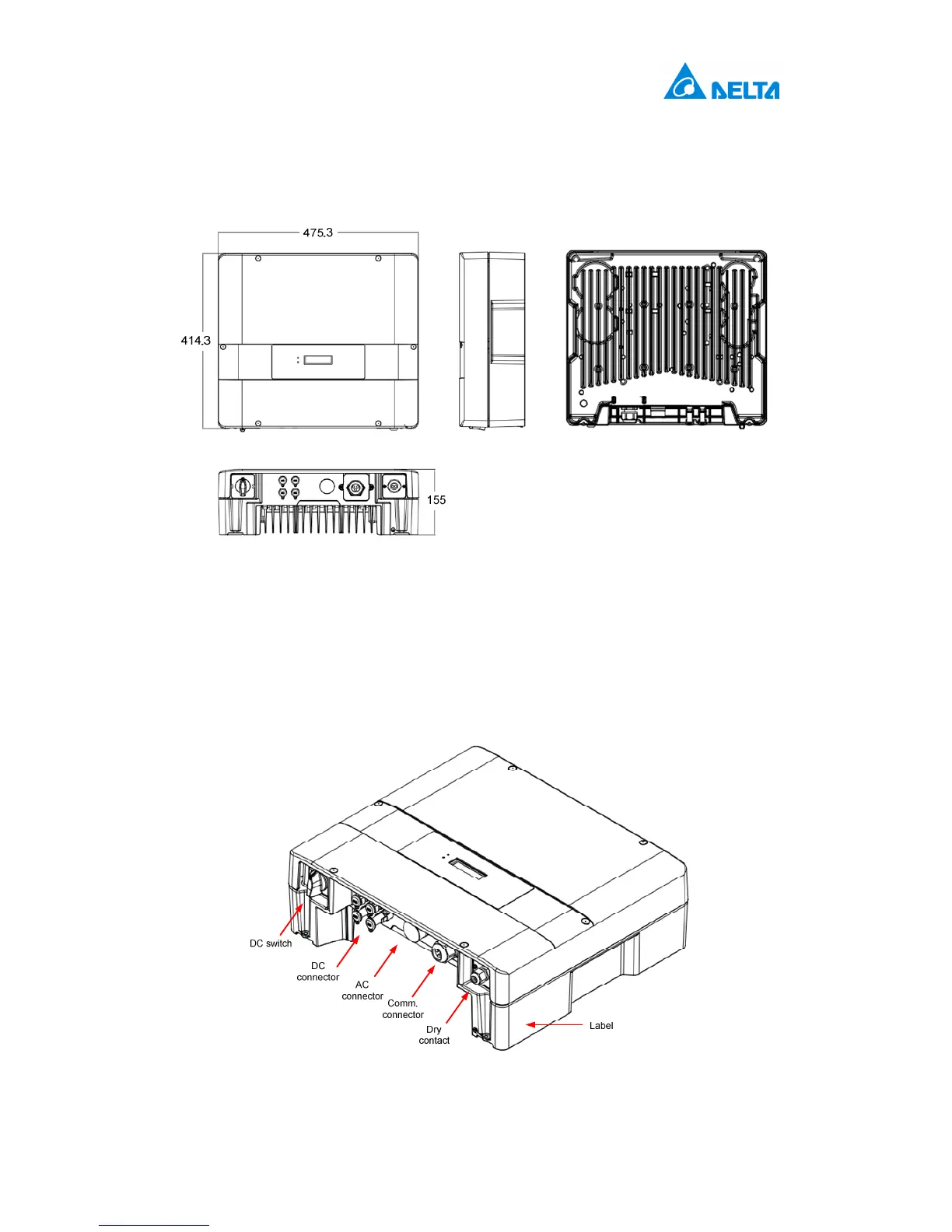

Figure 3-1: Dimensions of RPI H3A/ H4A/ H5A
3.2 Function Introduction
The Inverter’s exterior is shown in Figure 3-2. The description for individual
objects can be found in sections 3.2.1 and 3.2.2.
Figure 3-2: Inverter exterior objects
