Delta RPI H3A

3
1.5 How it Works

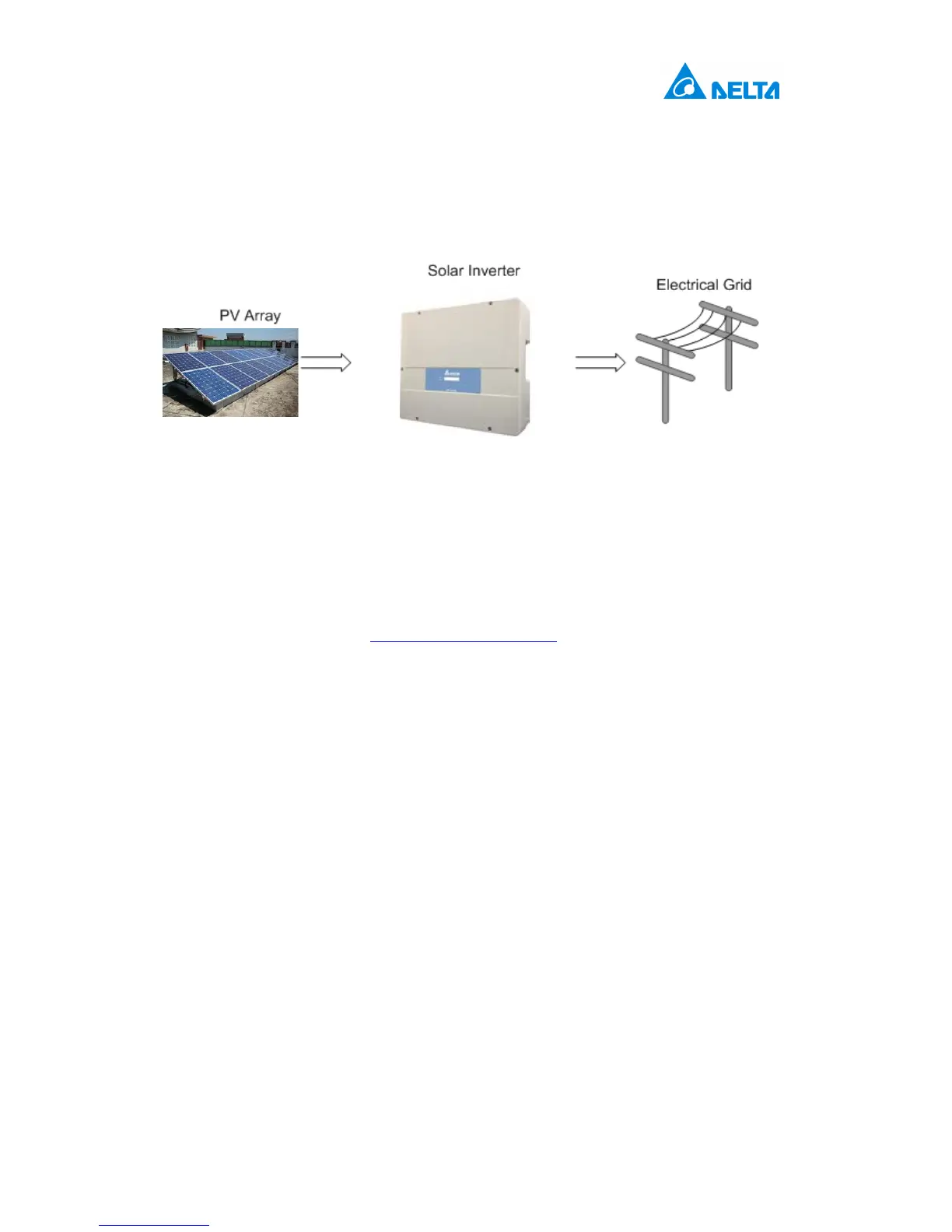

The operation of a solar inverter is shown in Figure 1-1. In order to save
energy and electricity, the solar inverter converts the DC input power supplied
from the PV Array into single-phase AC output power to Grid.
Figure 1-1: Solar system operation illustration
1.6 Additional Information
For more detailed information for RPI H3A/ H4A/ H5A or other related product
information, please visit : http://www.deltaww.com.
