13

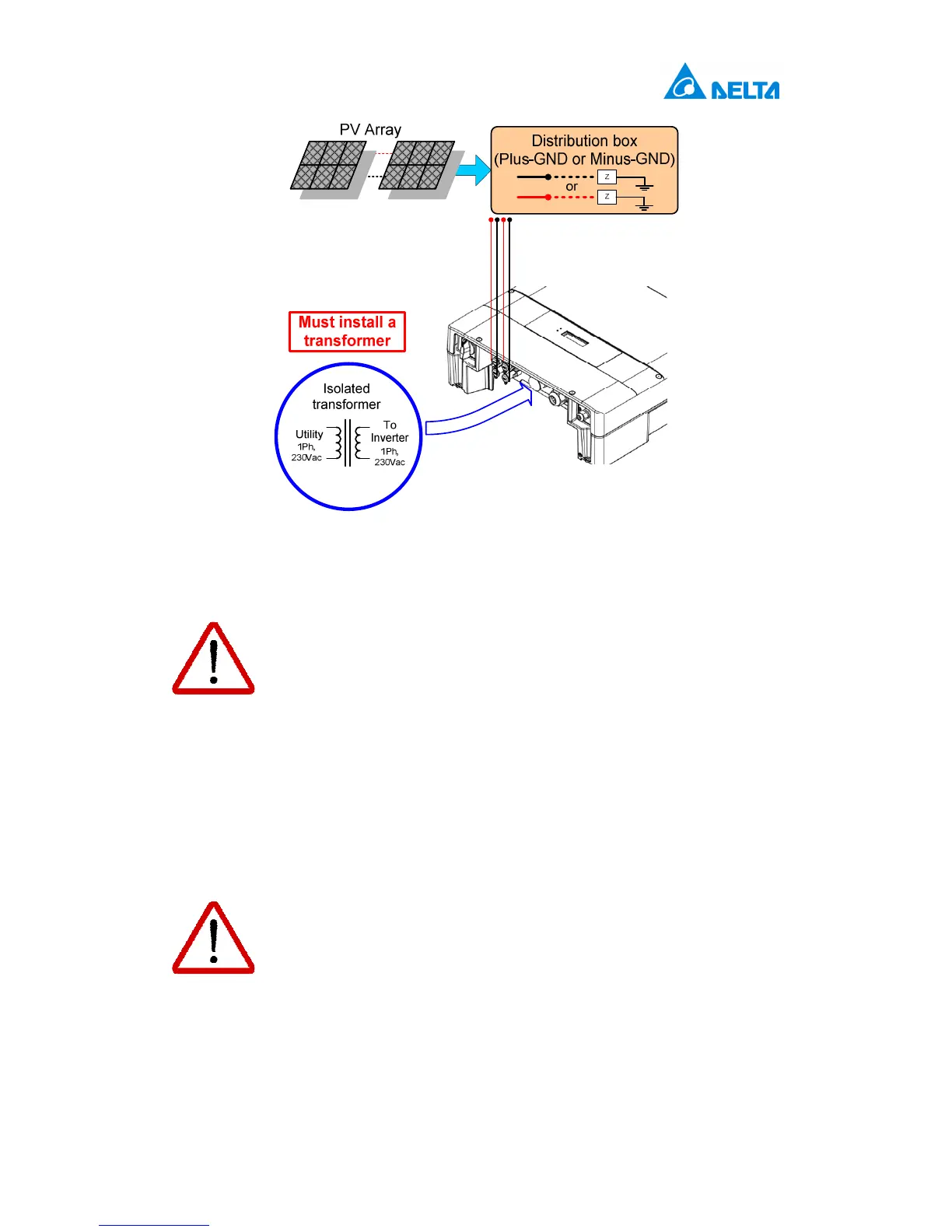

Figure 5-2: Connection of a system for solar array grounding
WARNING! SHOCK HAZARD
Note: Whenever a PV array is exposed to sunlight, a shock hazard may exist
due to output wires or exposed terminals. To reduce the risk of shock during
installation, cover the array with an opaque (dark) material and ensure that the
Disconnect Device in the inverter is set to OFF before commencing any wiring.
5.2 AC Grid Connection: L + N + PE
WARNING!
Before commencing AC wiring, please ensure AC breaker is switched off.
