Delta RPI-M20A User Manual

5.2.4. Event Log
此页面可纪录至多30笔过去曾发生的Error与fault。
于页面中按下 ENT 键后可检视所有事件发生次数的统计表。
5.2.5. Operation Data
此页面分为四个部分，分别记录逆变器运作期间的各种历史最大数据，包括输入
与输出的最大电压、最大电流、最大功率；功率散热片与逆变器内部的最高温度。
Event Log
21. Jun 2010 13:50
1. 15/02/2010 17:02
2. 02/12/2009 09:13
3. 23/11/2009 15:28
4. 03/10/2009 06:02
5. 27/05/2009 05:52
6. 18/02/2009 16:46
AC Freq High
No Grid
HW Fan
Insulation
Insulation
HW DC Injection
Summary
21. Jun 2010 13:50
HW DC Injection
Temperature
HW NTC1 Fail
HW NTC2 Fail
HW NTC3 Fail
HW NTC4 Fail
Event Count
2
1
0
0
0
0
Event Summary – 1/8
1
0
ENT
EXIT

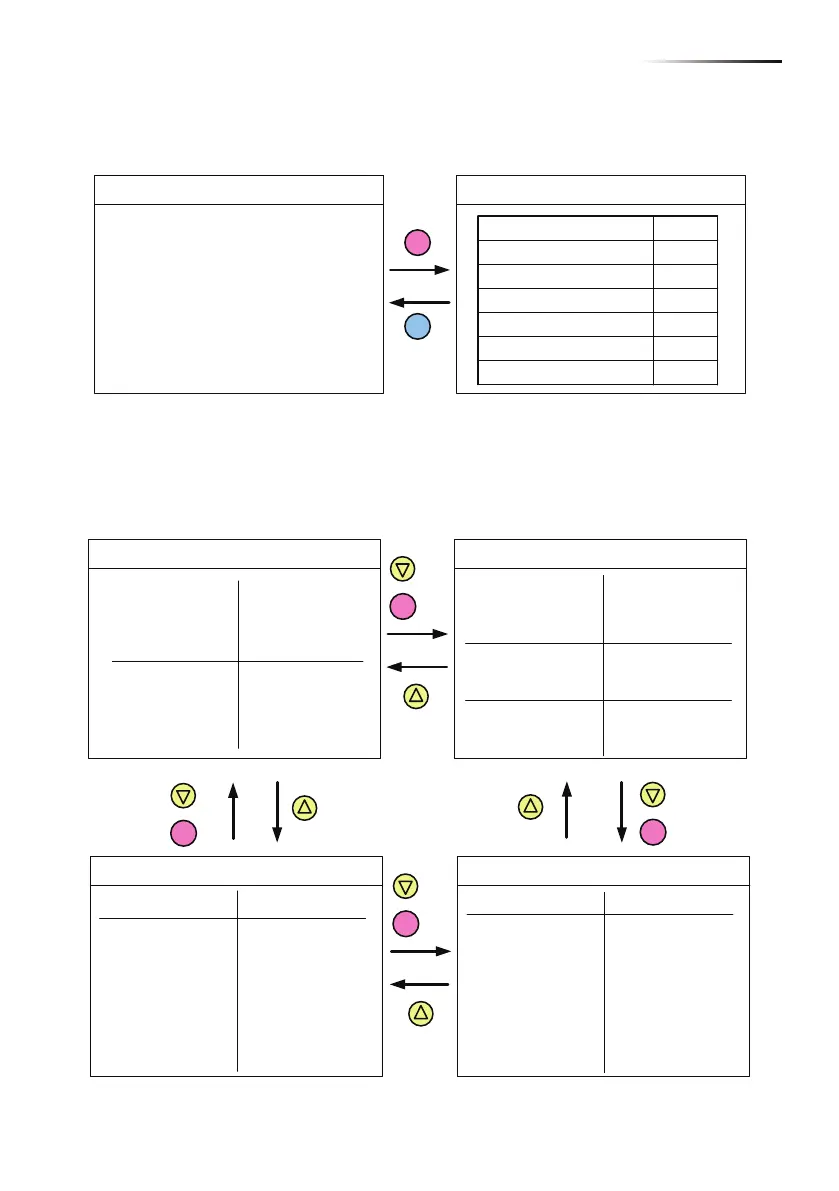

Figure 5-6 Event log flow chart
图5-7 Operation data页面
Operation Data – 1/4
21. Jun 2010 13:50
Input1
Voltage
Current
Power
Voltage
Current
Power
Input2
Maximum
(Vdc)
(A)
(W)
(Vdc)
(A)
(W)
811
25.2
11200
785
26.3
10301
Operation Data – 2/4
21. Jun 2010 13:50
L1
Voltage
Current
Power
Voltage
Current
Power
Voltage
Current
Power
L2
L3
Maximum
(Vdc)
(A)
(W)
(Vdc)
(A)
(W)
(Vdc)
(A)
(W)
247
30.5
6810
244
30.3
6756
245
30.1
6745
Operation Data – 4/4
21. Jun 2010 13:50
Temperature Max. Min.
Inside
Heatsink - 1
Heatsink - 2
Heatsink - 3
(℃)
(℃)
(℃)
(℃)
59.3
75.5
74.2
73.6
15.7
15.3
15.2
15.2
Operation Data – 3/4
21. Jun 2010 13:50
Output
Voltage
Current
Power
Frequency
(Vdc)
(A)
(W)
(Hz)
Maximum
247
30.5
20311
50.10
ENT
or
ENT
or
ENT
or
ENT
or
77
逆变器开机

Delta RPI-M20A Specifications

General

Brand	Delta
Model	RPI-M20A
Category	Inverter
Language	English
