16
2. To adjust, loosen the three screws (B) Fig. 29 that
fasten the table to the table mounting bracket and
trunnion. Adjust the table accordingly - then tighten
the three screws (B).
MITER GAUGE
Use the miter gauge (A) Fig. 30 on the disc table. You can
rotate the miter gauge body (A) right or left for angle or
miter sanding by loosening the lock knob (B), rotating the
miter gauge body, and tightening the lock knob (B).

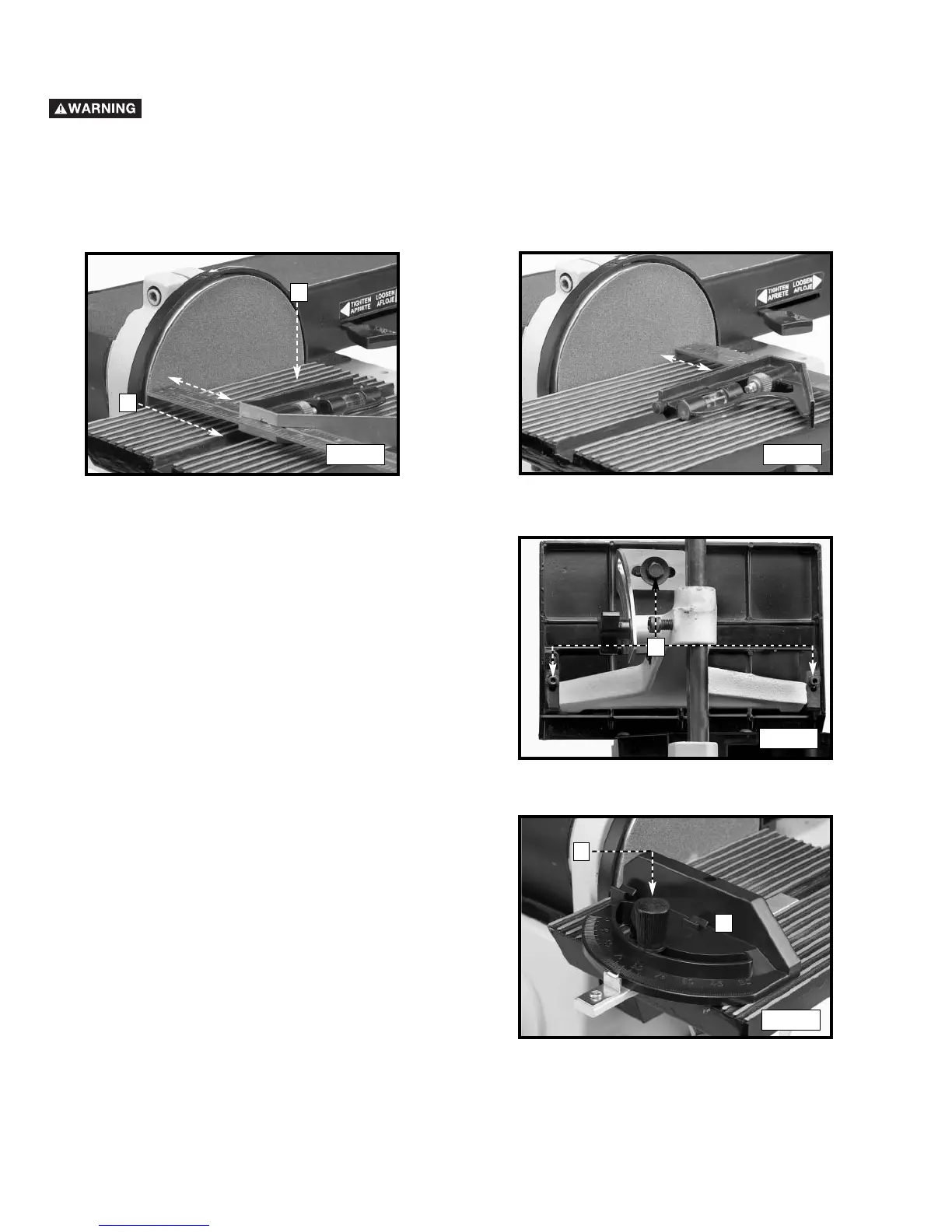

1. Place an adjustable combination square on the table with the part (A) Fig. 27 in the miter gauge slot (B) to check
the distance from the slot to the sanding disc. Check the other side of the disc in the same manner (Fig. 28). The
distances should be the same.
ADJUSTING THE MITER GAUGE SLOT PARALLEL WITH THE SANDING DISC
DISCONNECT MACHINE FROM POWER SOURCE.
A
B
Fig. 27
Fig. 28
B
A
B
Fig. 29
Fig. 30
