UNPACKING AND CLEANING
Carefully unpack the machine and all loose items from the shipping container(s). Remove the protective coating from
all unpainted surfaces. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone,
gasoline or lacquer thinner for this purpose). After cleaning, cover the unpainted surfaces with a good quality household
floor paste wax.

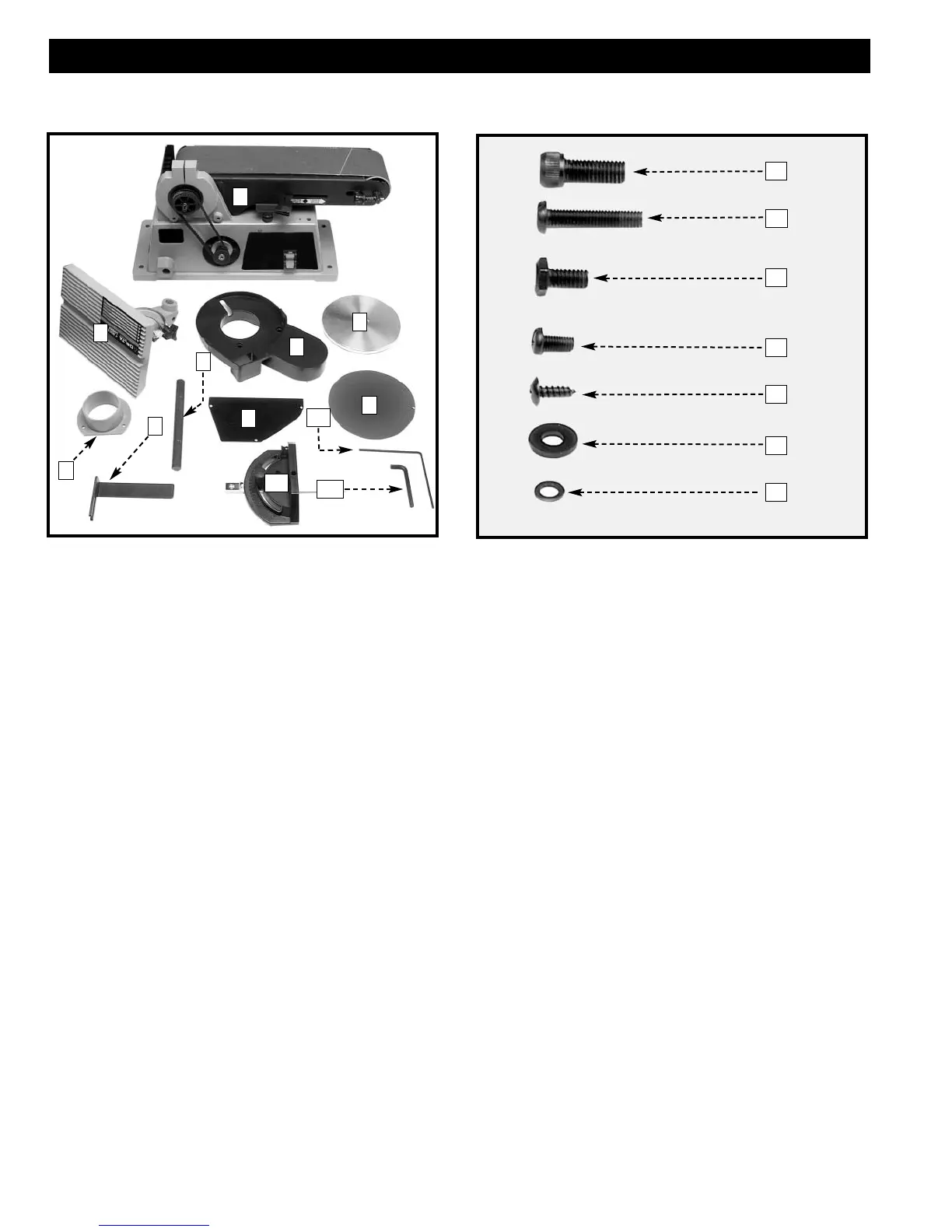

CARTON CONTENTS
1
2
3
4
8
7
10
6
5
9
11
12
13
1. Motor and Base
2. Disc Table
3. Belt and Pulley Guard
4. Disc Plate
5. Dust Chute
6. Support Rod
7. Lower Disc Guard
8. Sanding Disc
9. Backstop
10. Miter Gauge
11. 1/8" Hex Wrench
12. 6mm Hex Wrench
13. M8 x 1.25 x 20mm Hex Socket Head Screw (3)
14. M6 x 1 x 30mm Cheese Head Screws (2)
15. 1/4-20 x 1/2" Hex Head Screw (1)
16. M5 x .08 x 10mm Pan Head Screw (3)
17. M4 x .7 x 12mm Sheet Metal Screw (3)
18. 5/16" Flat Washer (1)
19. M5.3 Flat Washer (3)
14
15
16
17
18
19
