Delta SI 5000 Operation And Installation Manual

42

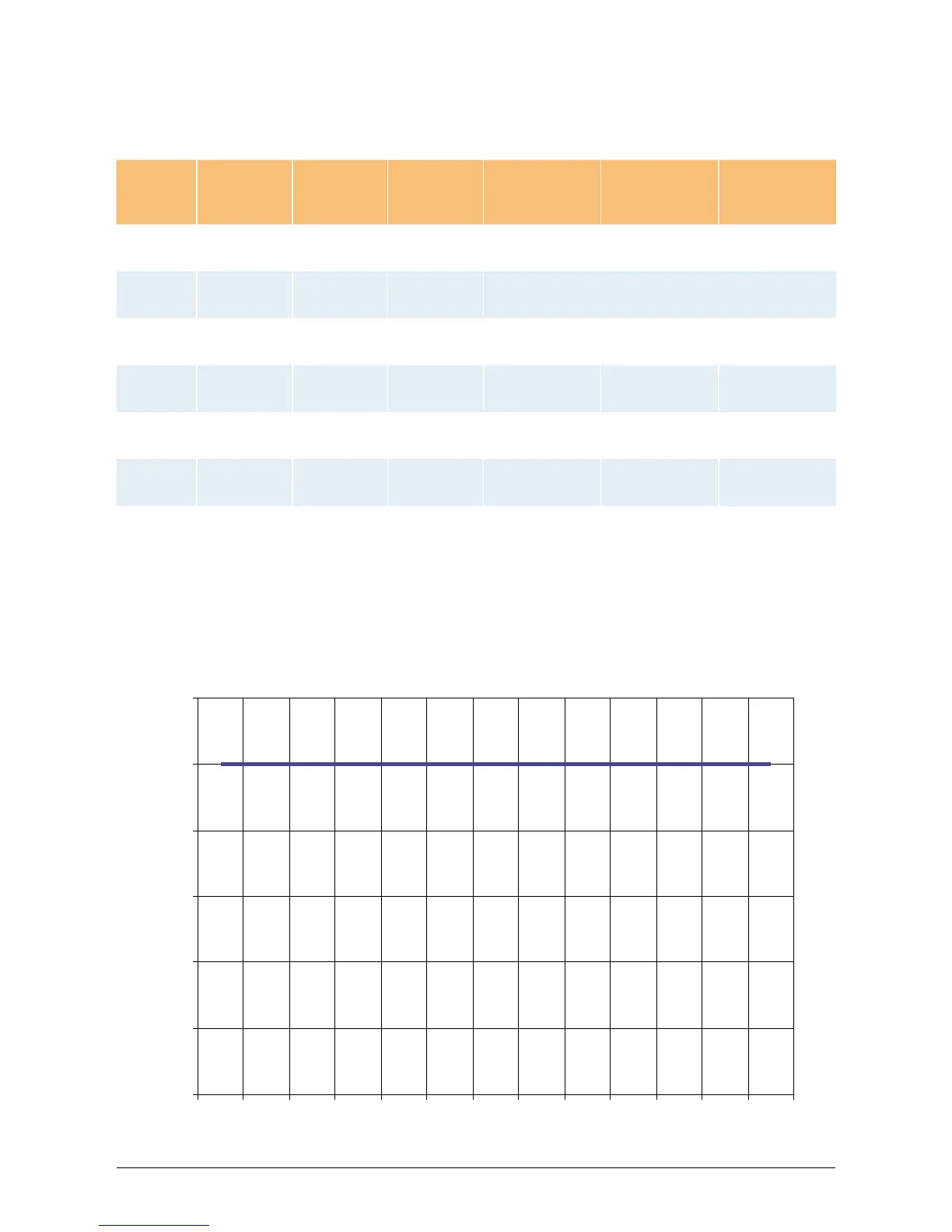

6.7.1 Solar inverter range
Pleaseconsiderthefollowinglimitcurvediagramofthesolarinverter:
0
1000
2000
3000
4000
5000
6000
150 175 200 225 250 275 300 325 350 375 400 425 450
Voltage of PV Modules (V)
Output power (W)
Cable
coupler
polarity
Wire size
2.5 mm
2
(AWG 14)
Wire size
4.0 mm
2
(AWG 12)
Wire size
6.0 mm
2
(AWG 10)
Female cable
coupler
Plus coded
Female cable
coupler
Minus coded
Tyco
Order
number
Plus
coupler
• • 1394462-1
Minus
coupler
• • 1394462-2
Plus
coupler
• • 1394462-3
Minus
coupler
• • 1394462-4
Plus
coupler
• • 1394462-5
Minus
coupler
• • 1394462-6
Alternatively,itispossibletoturnofftheinsulation-andgroundingmonitoring:
•ISO/GNDOFF.

Delta SI 5000 Specifications

General

Brand	Delta
Model	SI 5000
Category	Inverter
Language	English
