21

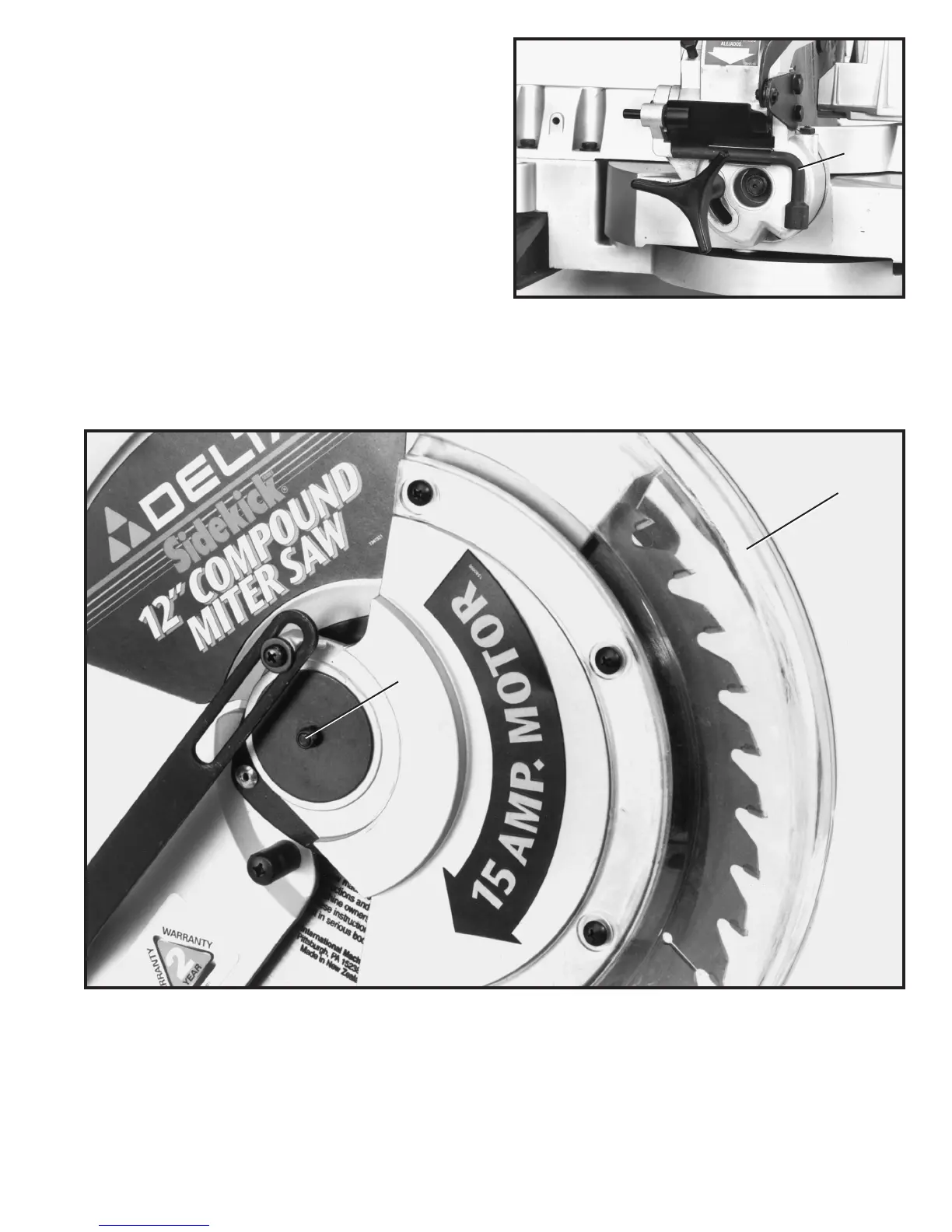

Fig. 39
TOOL STORAGE
A clip is provided on the rear of the saw and provides a con-
venient storage area for wrench (A) Fig. 39, as shown.
Fig. 40
1.Af ter an extended period of time the movable blade guard (A) Fig. 40, might become
sloppy and move erratically when the cuttinghead is lowered. This can be easily
corrected by slightly tightening nut (B) until the lower blade guard (A) moves smoothly.
A
B
A
ADJUSTING BLADE GUARD
