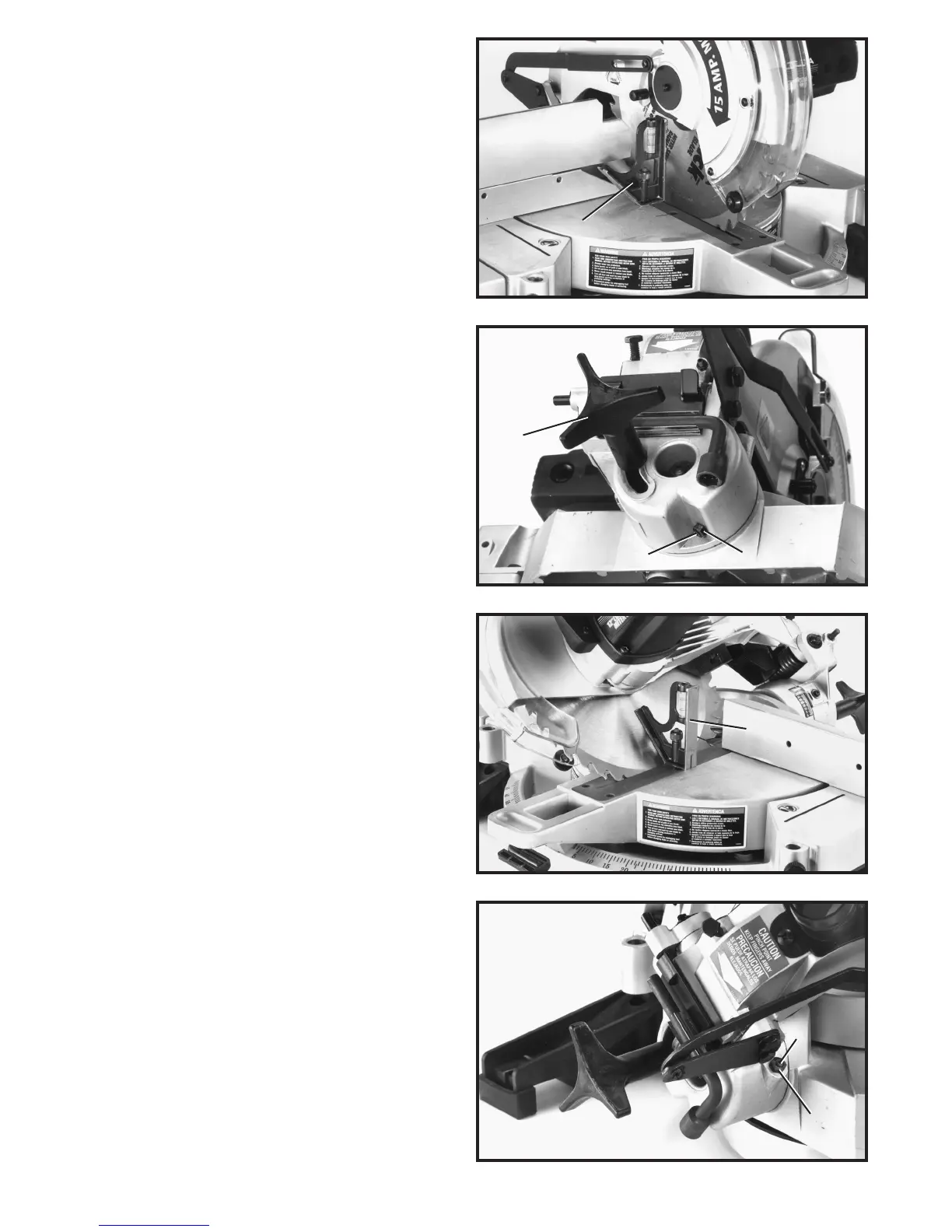

Fig. 30
Fig. 31
Fig. 32
Fig. 33
ADJUSTING
90 AND 45 DEGREE BEVEL
POSITIVE STO P S
1. DISCONNECT THE S AW FROM THE POWER
SOURCE.
2. Loosen bevel lock handle and move the cuttinghead
all the way to the right. Then tighten bevel lock handle
and lock cuttinghead in the down position.
3. Using a square (A) Fig. 30, place one end of the
square on the t able and the other end against the blade,
as shown. Check to see if the blade is at 90 degrees to
the t able.
4. If an adjustment is necessary, loosen bevel lock
handle (H) Fig. 31. Then loosen locknut (B) and turn
adjusting screw (C), with wrenches provided, until blade
is 90 degrees to the t able. Then tighten locknut (B) and
bevel lock handle (H).
5. When you are cert ain blade is 90 degrees to t able,
adjust pointer to line up with the 0 degree mark on bevel
scale.
6. Loosen bevel lock handle and move cuttinghead all
the way to the lef t bevel position and tighten bevel lock
handle.
7. Using a square (A) Fig. 32, check to see if the blade
is at 45 degrees to the t able, as shown.
8. If an adjustment is necessary, loosen bevel lock
handle. Then loosen locknut (E) Fig. 33, and turn adjust -
ing screw (F), with wrenches provided, until blade is 45
degrees to the t able. Then tighten locknut (E) and bevel
lock handle.
9. These positive stop s enable you to rapidly position
the blade at the most common bevel angles to the t able,
90 and 45 degrees.
A
H
C B
A
F
E
