25
CUTTING CROWN MOULDING
One of the many features of your saw is the ease of cutting
crown moulding. The following is an example of cutting both
inside and out side corners on 53/38 degree wall angle
crown moulding. NOTE: When cutting 45 degree wall angle
crown moulding, the following procedure for inside and out -
side corners is the same with the exception that the bevel
position will always be at 30 degrees and the miter position
will be 35-1/4 degrees to the right or lef t.
1. Move the t able to the 31-5/8 degree right miter position
and lock the t able in position. NOTE: A positive stop is
provided to find this angle quickly.
2. T ilt the saw blade to the 33-7/8 degree lef t bevel posi -
tion and tighten bevel lock handle. NOTE: A triangle indica -
tor is provided on the bevel scale to find this angle quickly.
3. Place the crown moulding on the t able with the CEILING
EDGE of the moulding against the fence, and make the cut,

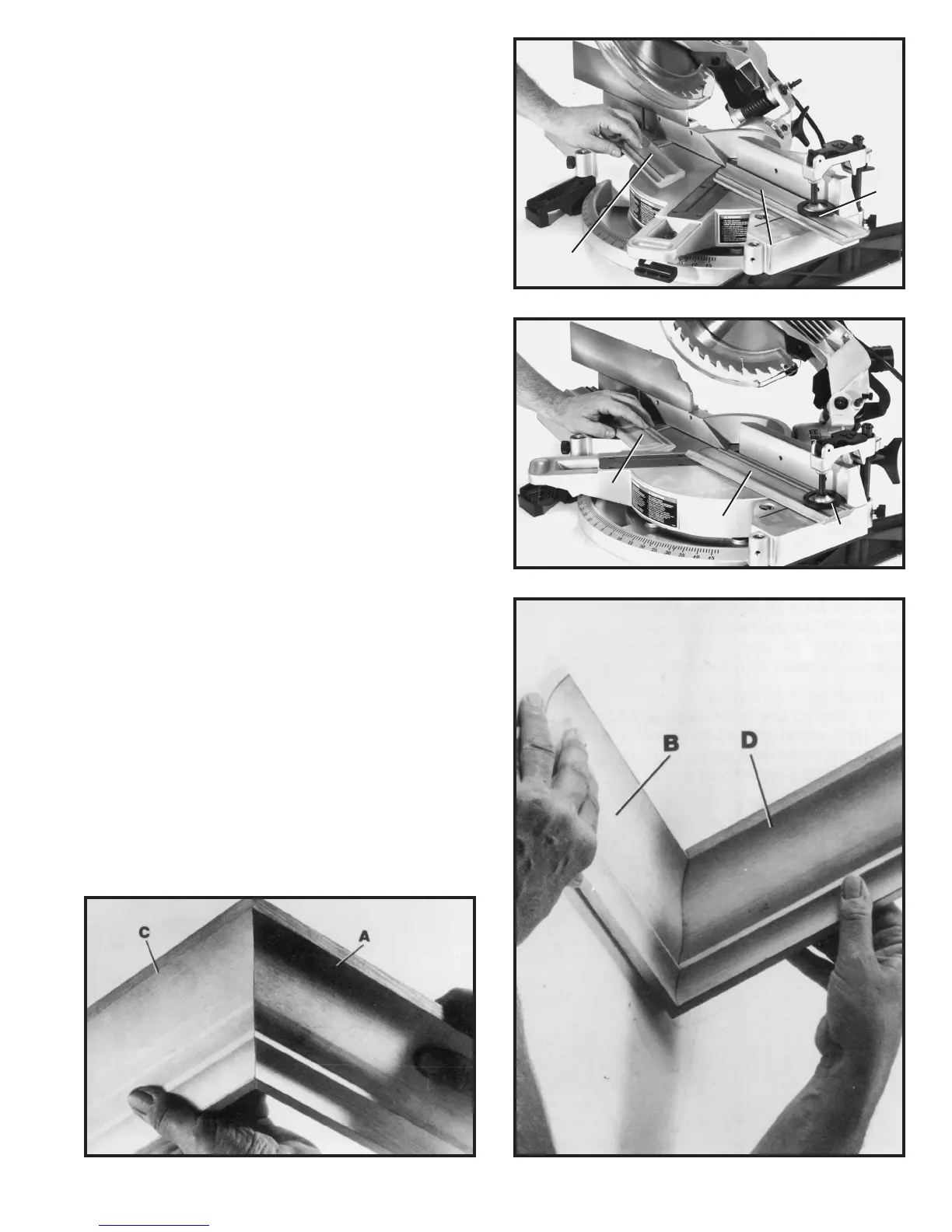

as shown in Fig. 49. NOTE: The piece of crown moulding
used for the out side corner will always be on the right hand
side of the blade, as shown at (A) Fig. 49. The piece of
crown moulding used for the inside corner will always be on
the lef t hand side of the blade, as shown at (B) Fig. 49. Note
that the st andard equipment work clamp (E) is being used
to hold the workpiece in position.
4. To make the matching halves of the inside and out side
corners, simply rot ate the t able to the 31-5/8 degree lef t
miter position. NOTE: A positive stop is provided to find this
angle quickly. The saw blade is already tilted to the 33-7/8
degree bevel position from the previous cut.
5. Place the crown moulding on the t able with the W A L L
EDGE of the crown moulding against the fence and make
the cut. Again, the piece of crown moulding used for the out -
side corner will always be on the right side of the blade, as
shown at (C) Fig. 50. The piece of crown moulding used for
the inside corner will always be on the lef t side of the blade, as
shown at (D) Fig. 50. Again, the st andard equipment work
clamp (E) is being used to hold the workpiece in position.
6. Fig. 51, illustrates the two out side corner pieces; (A)
being the piece cut at (A) Fig. 49, and (C) being the piece
cut at (C) Fig. 50.
7. Fig. 52, illustrates the two inside corner pieces; (B)
being the piece cut at (B) Fig. 49, and (D) being the piece
cut at (D) Fig. 50.
Fig. 51 Fig. 52
Fig. 49
Fig. 50
B
A
E
E
C
D
