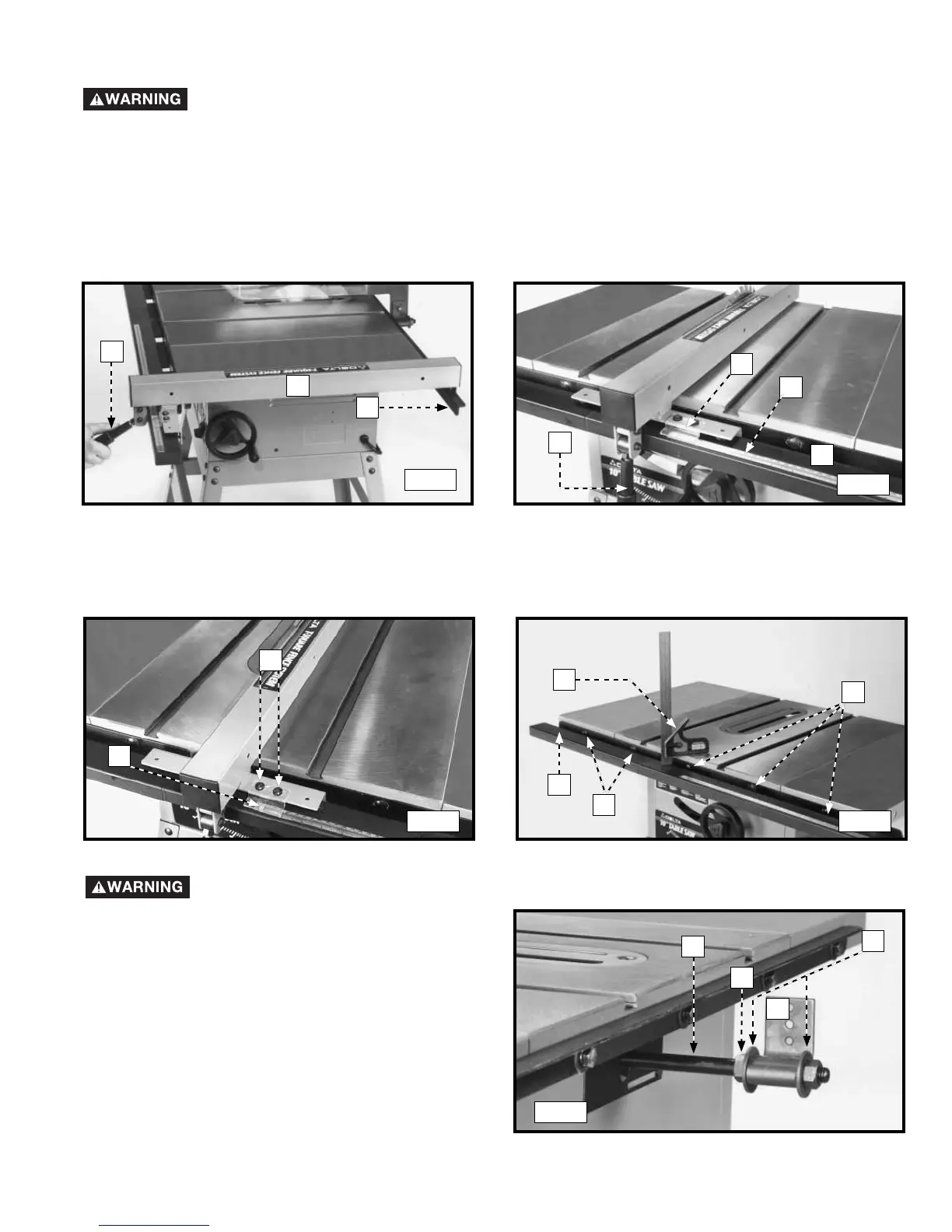

15 - English
You can make minor adjustments to the cursor (E) Fig. 26 by loosening the two screws (G), adjusting the cursor left or
right, and tightening the two screws (G). Remove the rip fence and lower the saw blade.
4. Place a square (H) Fig. 27 locked in at 13/16" on the saw table and against the top of guide rail (D). Align the guide
rail until it is parallel to the saw table by loosening or tightening the mounting hardware (K) Fig. 27.
5. Check the guide rail adjustment again to make certain that the rip fence is aligned with the guide rail scale.
Fig. 24
C
Fig. 25
D
F
E
A
Fig. 26
G
E
Fig. 27
K
H
K
D
A
B
Fig. 28
R
A
C
B
LEVELING AND ADJUSTING THE FRONT GUIDE RAIL
1. Raise the saw blade to its highest level.
2. With the fence handle (A) Fig. 24 in the raised position, place the rip fence (B) on the saw table.
NOTE: Make certain that the rip fence (B) is engaged on the rear guide rail (C). Move the rip fence (B) against the saw
blade (Fig. 25).
3. Carefully move the front guide rail (D) Fig. 25 left or right until the line on the cursor (E) aligns with the zero (“0”)
on the guide rail scale (F). Push the handle (A) down to lock the rip fence in position. Tighten the front guide rail
mounting hardware.
BLADE GUARD/SPLITTER ASSEMBLY
1. Thread an M12 x 1.75 hex nut (A) on the splitter
support rod (R) Fig. 28 as far as it will go.
2. Place a 5/8" flat washer (B) Fig. 28 on the splitter
support rod (R).
3. Place the splitter bracket (C) Fig. 28 on the splitter
support rod (R).
4. Place a 5/8" flat washer (B) Fig. 28 on the splitter
support rod (R).
5. Thread an M12x1.75 hex nut (D) on the splitter
support rod (R) Fig. 28. Tighten the nut to hold the
splitter bracket (C) in place.
Disconnect the machine from the power source!
Disconnect the machine from the power source!
