11
ASSEMBLING UNIFENCE
BODY TO GUIDE RAIL

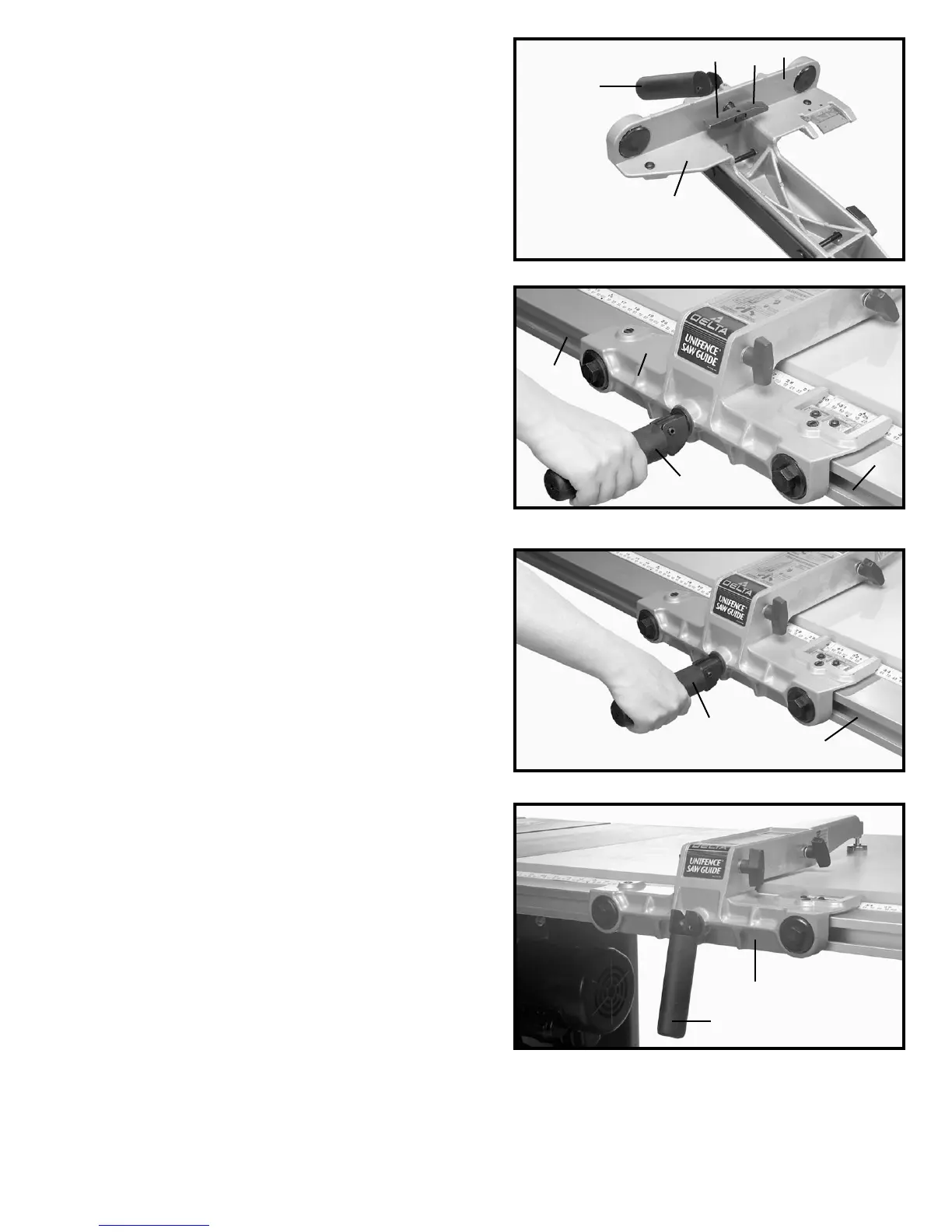

1. Turn fence body (A) Fig. 34, upside down and lay it
on a table or bench. Push handle (B) in against fence
body. Make certain the surface (C) of clamp bracket is
parallel to the face (D) of the fence body, and that the
inside edge (E) of the clamp bracket is parallel to surface
(F) of the fence body. Turn handle (B) Fig. 32, if
necessary.
2. Place fence body (A) Fig. 35, onto the guide rail as
shown, making sure clamp bracket is inserted into
channel (G) on rail. Notice that the clamp handle (B) is
turned to the left indent position.
3. While pushing in on handle, turn to the right indent
position as shown in Fig. 36. This will prevent fence
clamp from sliding out of the channel (G).
4. Lock fence body (A) to the guide rail by pushing
down on handle (B) as shown in Fig. 37.
Fig. 34
Fig. 35
Fig. 36
Fig. 37
B
C
E
F
D
A
B
G
G
B
G
A
B
