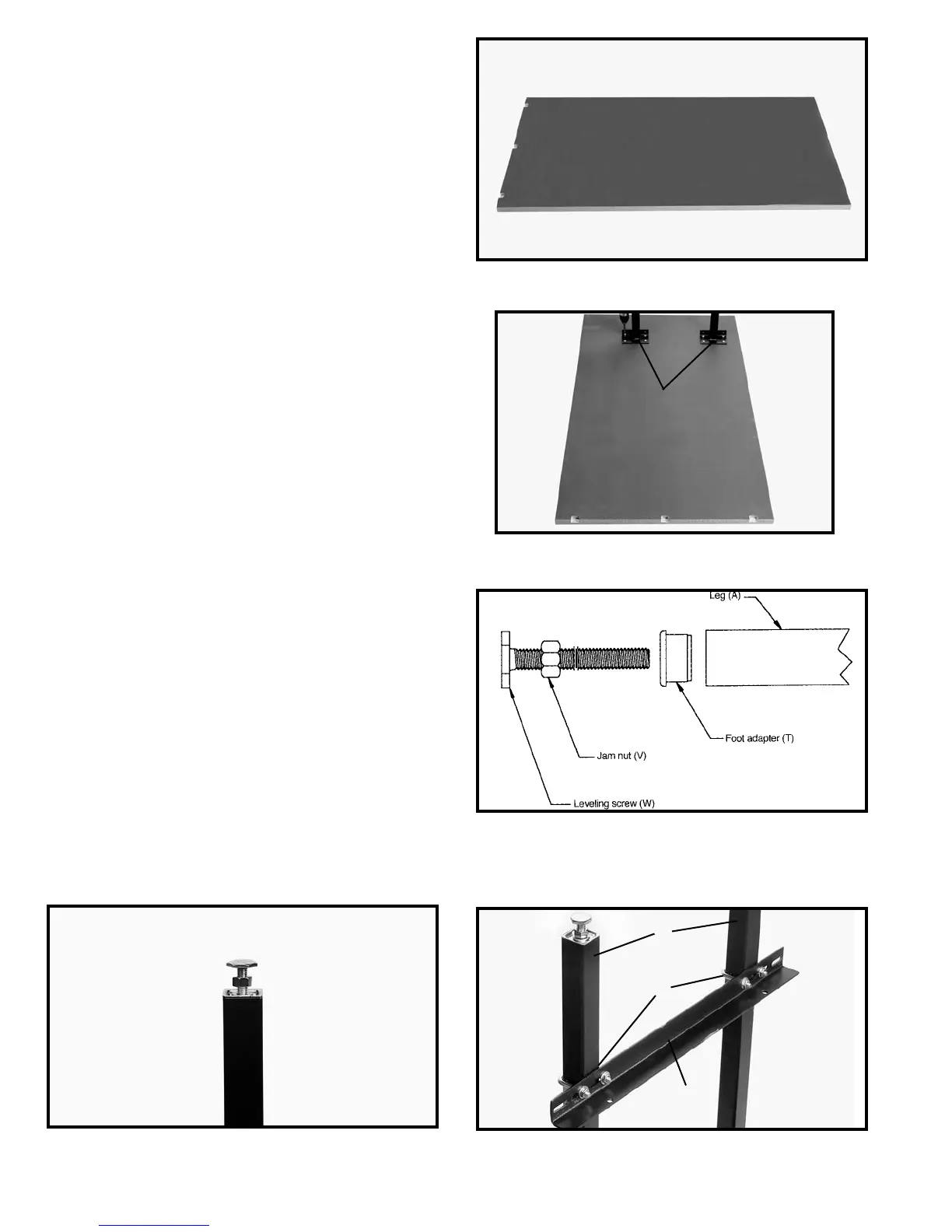

ASSEMBLING TABLE
TO SAW
1. If your saw has a right extension wing, front and rear
guide rails, they must be removed.
2. Lay the table upside down on the floor or bench, as
shown in Fig. 4.
3. Assemble the two table legs (A) Fig. 5 to the bottom
of the table using eight #8x7/8" self tapping screws
supplied. NOTE: Refer to Fig. 2 for the hole location for
the 36-902 30" Unifence.
Fig. 4
Fig. 5
4. Insert foot adapter (T) Fig. 6, into the bottom of each
leg (A). Assemble the 3/8" jam nut (V) approximately 3/4
of the way onto leveling screw (W). Thread the leveling
screw (W) into foot adapter. Fig. 7 illustrates the foot
leveling assembly on the table leg. Assemble the
remaining foot assembly to the other table leg in the
same manner. NOTE: Height adjustments can be made
later.
Fig. 6
Fig. 7
B
A
C
Fig. 8
4. Assemble table leg support bracket (B) Fig. 8, to the
table legs (A) using two U-clamps (C), flat washers, and
hex nuts.
A
To Next Page
