16

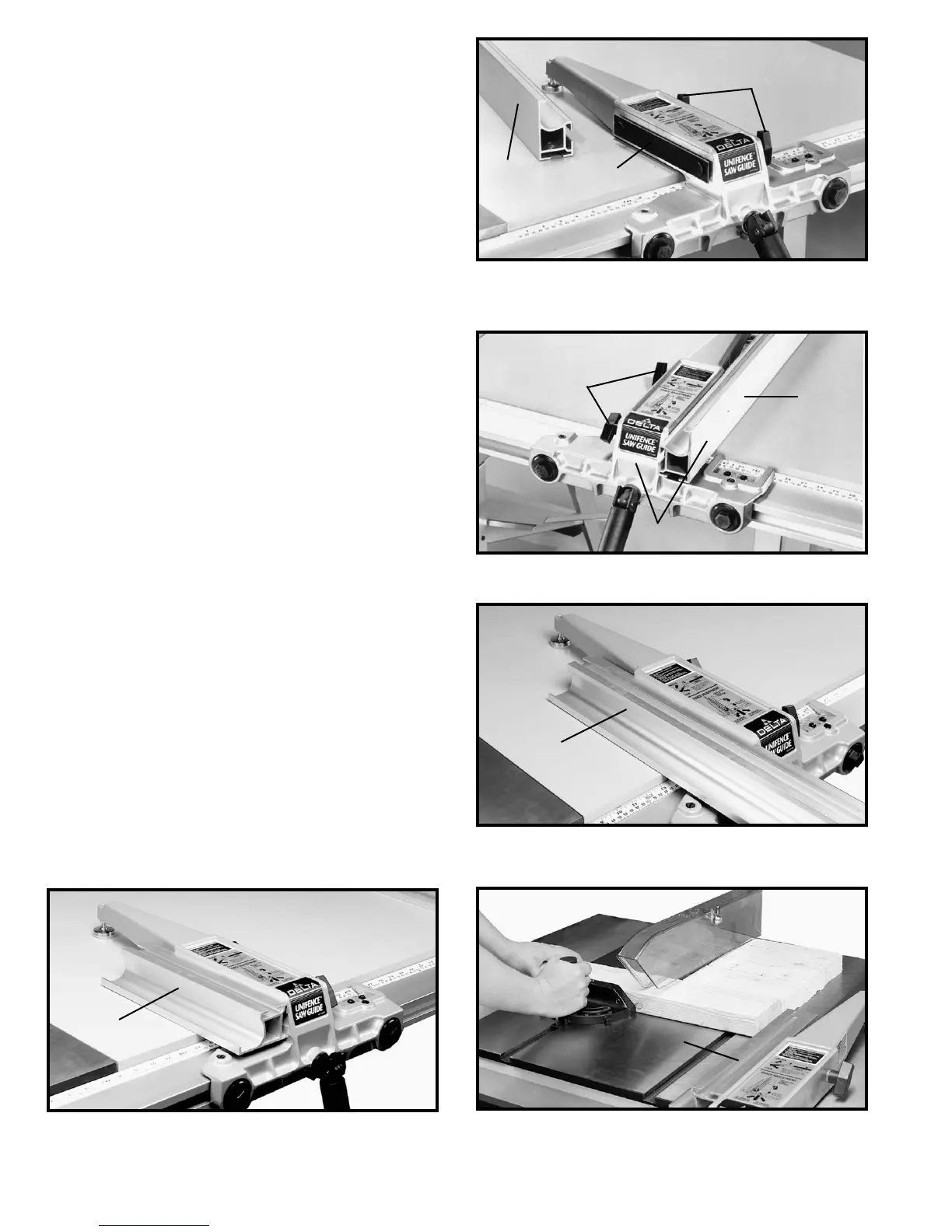

Fig. 54
Fig. 55
Fig. 56
Fig. 58
RIPPING ON LEFT SIDE OF
SAW BLADE
In some cases it may be desirable to use the fence on the
left side of the saw blade. This is accomplished by
repositioning the fence (A) Figures 54 and 55, fence
clamp bar (B) and lock knobs (C) so that the fence (A) will
be attached to the right side of the fence body, as shown
in Fig. 55. The complete fence assembly (D) Fig. 55, can
easily be moved to the left side of the saw table.
USING THE FENCE AS A
CUT-OFF GAUGE
The fence can be used as a cut-off gage when cross
cutting a number of pieces to the same length.
IMPORTANT: When using the fence as a cut-off gage, it
is very important that the rear end of the fence be
positioned in front of the saw blade. When using the
fence as a cut-off gage, simply position the fence (A) to
the front as shown in Fig. 56, or purchase a 12" long
fence (B) catalog # 34-878, as shown in Fig. 57. A typical
operation using the 12" long fence (B) as a cut-off gage
is shown in Fig. 58.
Fig. 57
A
B
C
C
A
D
A
B
B
