Delta VFD-ED Series

Chapter 6 Optional Accessories | VFD-ED
6-18

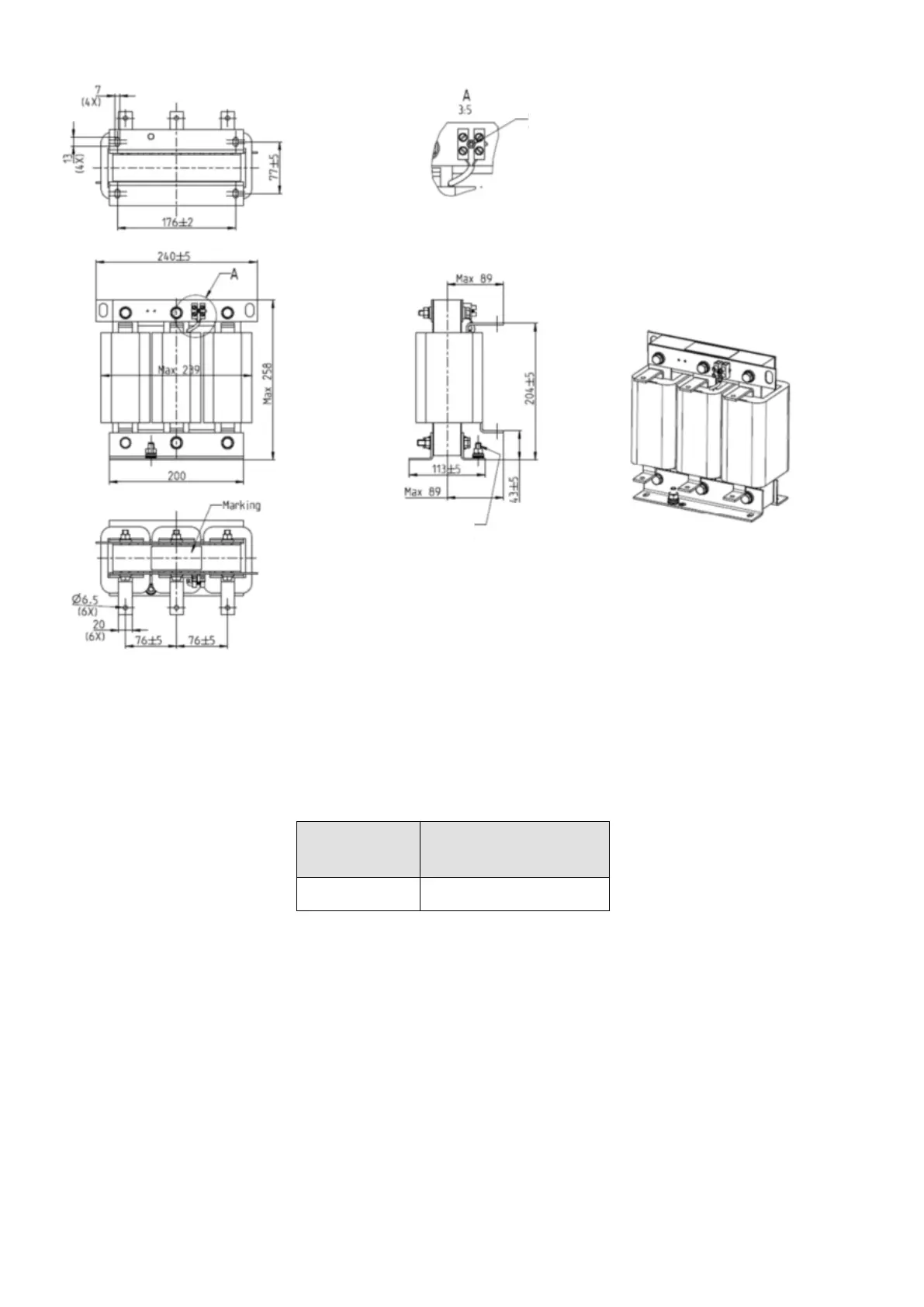

Figure 6-13
Unit: mm
Input Reactors
Delta Part #
DR146AP087 See above.
Table 6-17
Terminal gauge: 4 mm
2
Tightening torque: 0.6–0.8 Nm
PE M8 x 23
Tightening torque: 6±0.3 Nm
