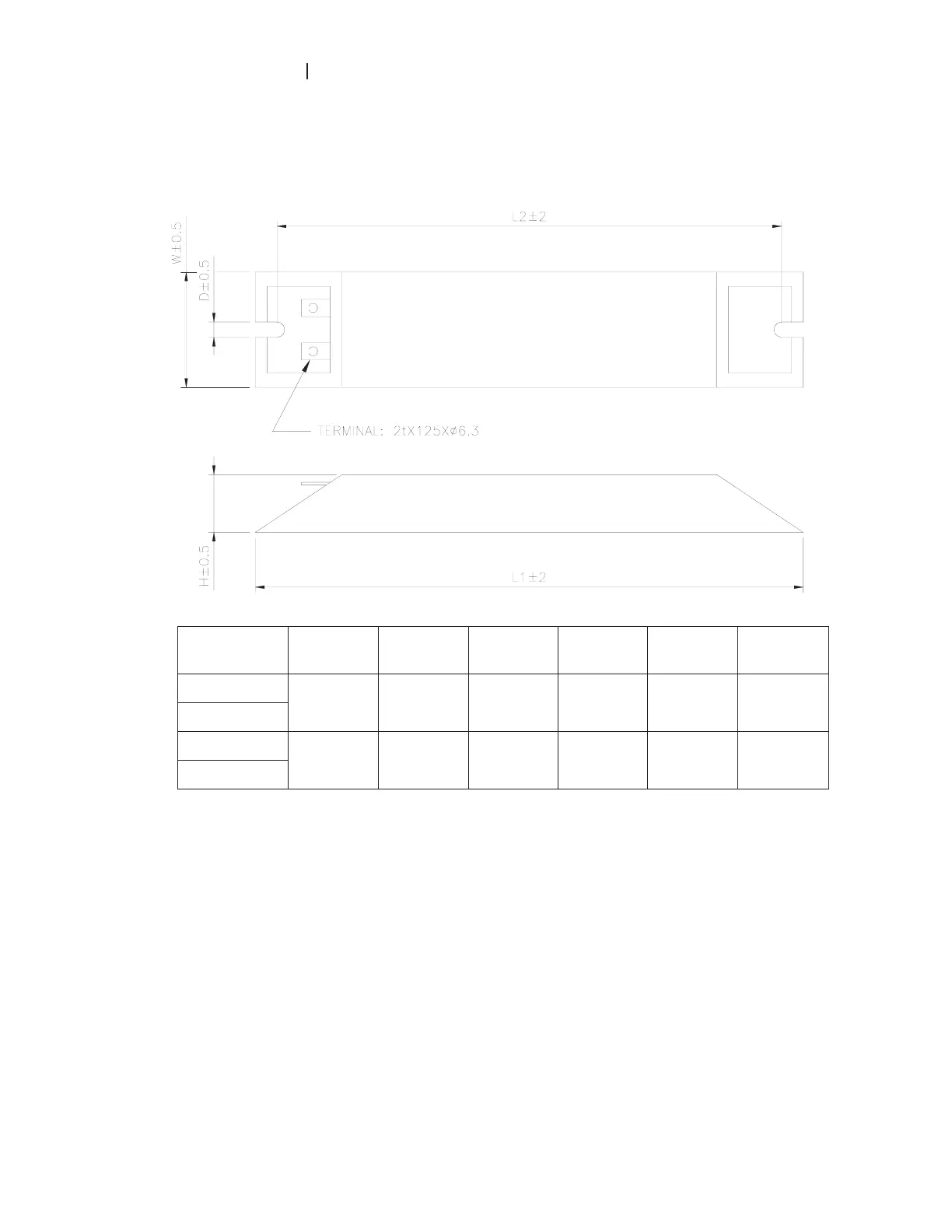

Appendix B Accessories
_
VFD-B Series
B-4
Revision
10/2005, BE13, S
W V4.08
Order P/N: BR500W030, BR500W100, BR1KW020, BR1KW075
Model no.
L1
L2
H
D
W
Max. Weight
(g)
BR500W030
BR500W100
335
320
30
5.3
60
1100
BR1KW020
BR1KW075
400
385
50
5.3
100
2800
203
205
