Chapter 4 Description of Parameters | VFD-VJ
4-49
73: Resistance of braking resistor is too small (brF)
74: Braking chopper overheated (oH4)
75: Error occurred on Brake chopper’s thermal protection line (tH4o)
76~81: Reserved
82: Output Phase Loss on Phase U (oPL1)
83: Output Phase Loss on Phase V (oPL2)
84: Output Phase Loss on Phase W (oPL3)
85, 86, 88~100: Reserved
87: Hybrid motor drive overloading while running at low frequency (oL3)
101: Software error 1 occurred on CANopen (CGdE)
102: Software error 2 occurred on CANopen (CHbE)
103: Reserved
104: Hardware error occurred on CANopen (CbFE)
105: Index setting error occurred on CANopen (CIdE)
106: Slave # setting error occurred on CANopen (CAdE)
107: CANopen’s Index is out of range (CFrE)
As soon as a fault is occurred, the whole system is forced shutting down. The fault will be recorded. During
shutting down, the LvS (low voltage when stop) is not recorded.

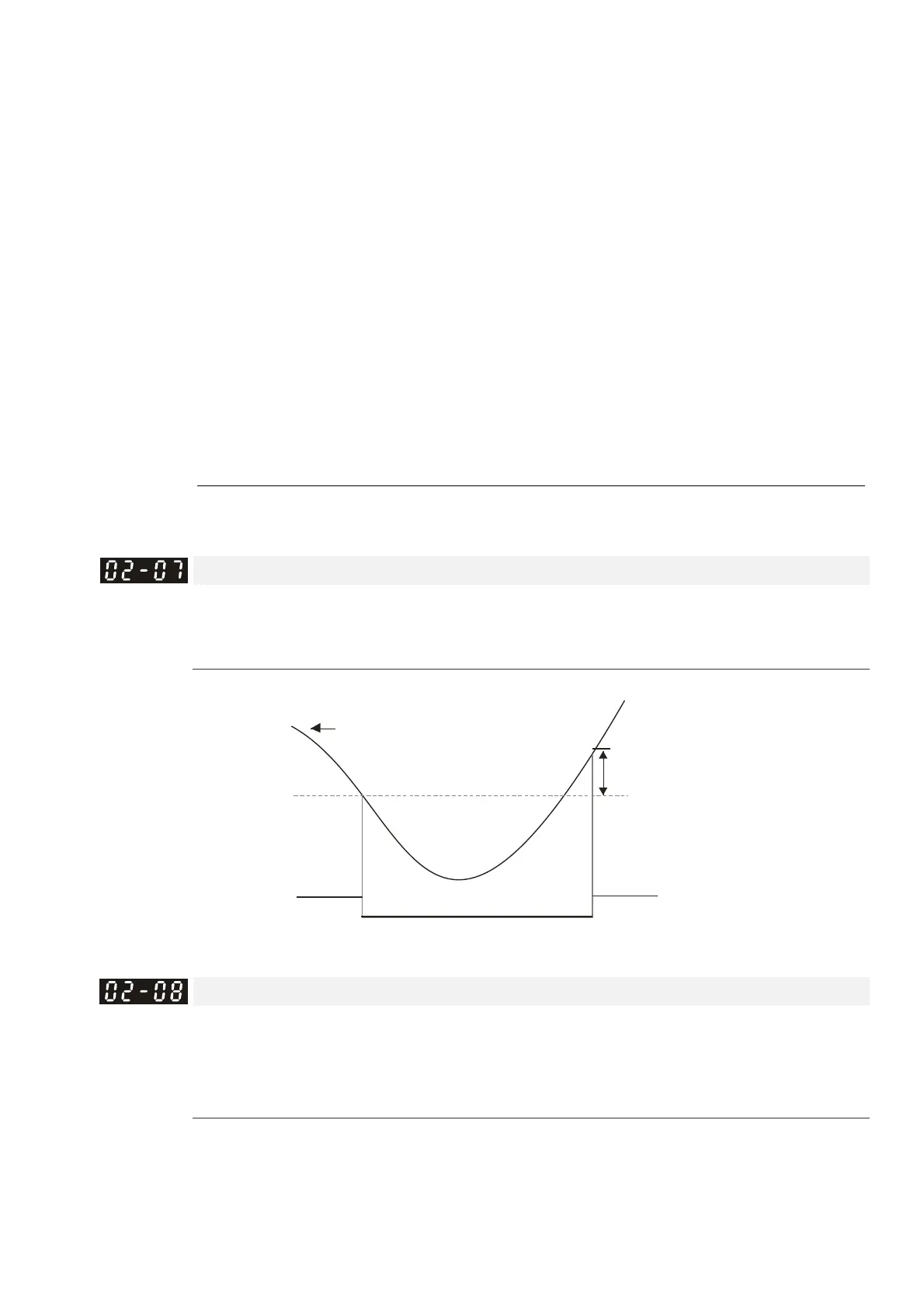

Low voltage level
Control mode
VF FOCPG FOCPM
Factory setting: 180/360
Settings 230V Models: 160 ~ 220V
460V Models: 320 ~ 440V
This parameter is to set the LV discrimination level.
LV
02-07
Input Voltage
30V(60V)
PTC action selection
Control mode
VF FOCPG FOCPM
Factory setting: 1
Settings 0: Warn and keep operation
1: Warn and ramp to stop
2: Warn and coast to stop
Set Pr.02-08 to define the operation mode of the drive after the PTC is activated.
