Delta VFD220VL43C-J - C-6 Wiring of Servo Oil Pump

Appendix C: MSJ 220V & 380V Hybrid Servo Motor | VFD-VJ
Apx C-11

C-6 Wiring of Servo Oil Pump

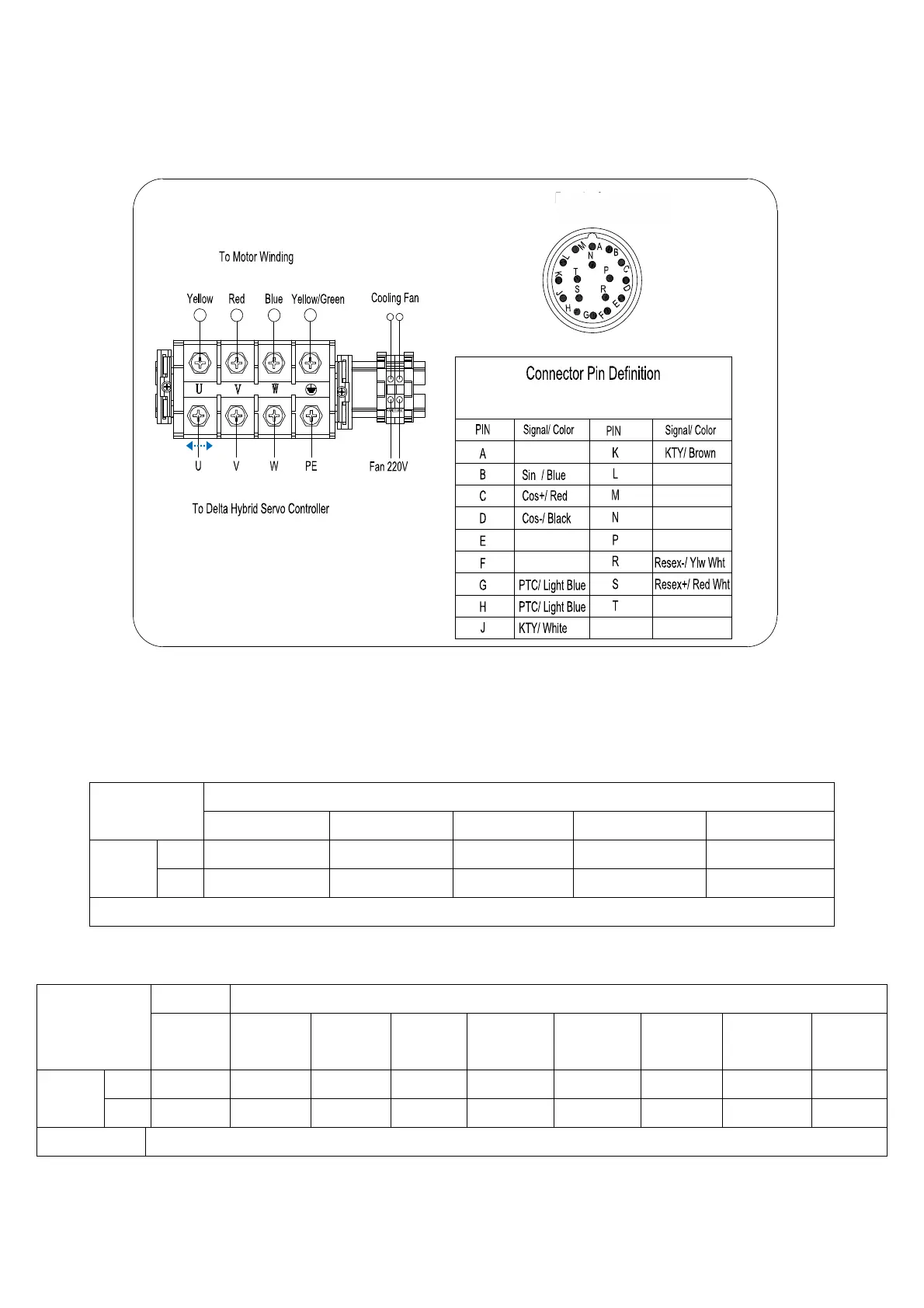

C-6-1: Wiring Box of 220V & 380V
power
military grade
(Earth
connection)
Encoder Connector
military grade
-
Sin + / Yellow
The R pin and S pin use AC current,
the + and - signs are for reference only.
*
*
AC
C-6-2: Recommended Wiring Size and Temperature Rating
220V:
380V:
Model
MSJ-______________C
DR201AE42 DR201EE42 DR201IE42 GR202DE42 DR202FE42
Minimum
Wiring
Size
AWG
6 5 4 3 2
mm
2
13.5 17 21 27 35
*Must use copper wires of temperature rating 90℃ for installation.
Model
MSJ-______________C
IR2070E42 IR201AE42 IR201EE42 IR201IE42 OR202DE42
LR202FE42,
IR202HE42
IR203CE42
OR264FE48,
IR265CE48
IR266IE48
Minimum
Wiring
Size
AWG 10 8 7 6 5 4 3 2 1
mm
2
5.3 8.5 10.5 13.5 17 21 27 35 45
*Must use copper wires of temperature rating 90℃ for installation.
Terminal width
