APX A: Optional Accessories | VFD-VJ
Apx A-21

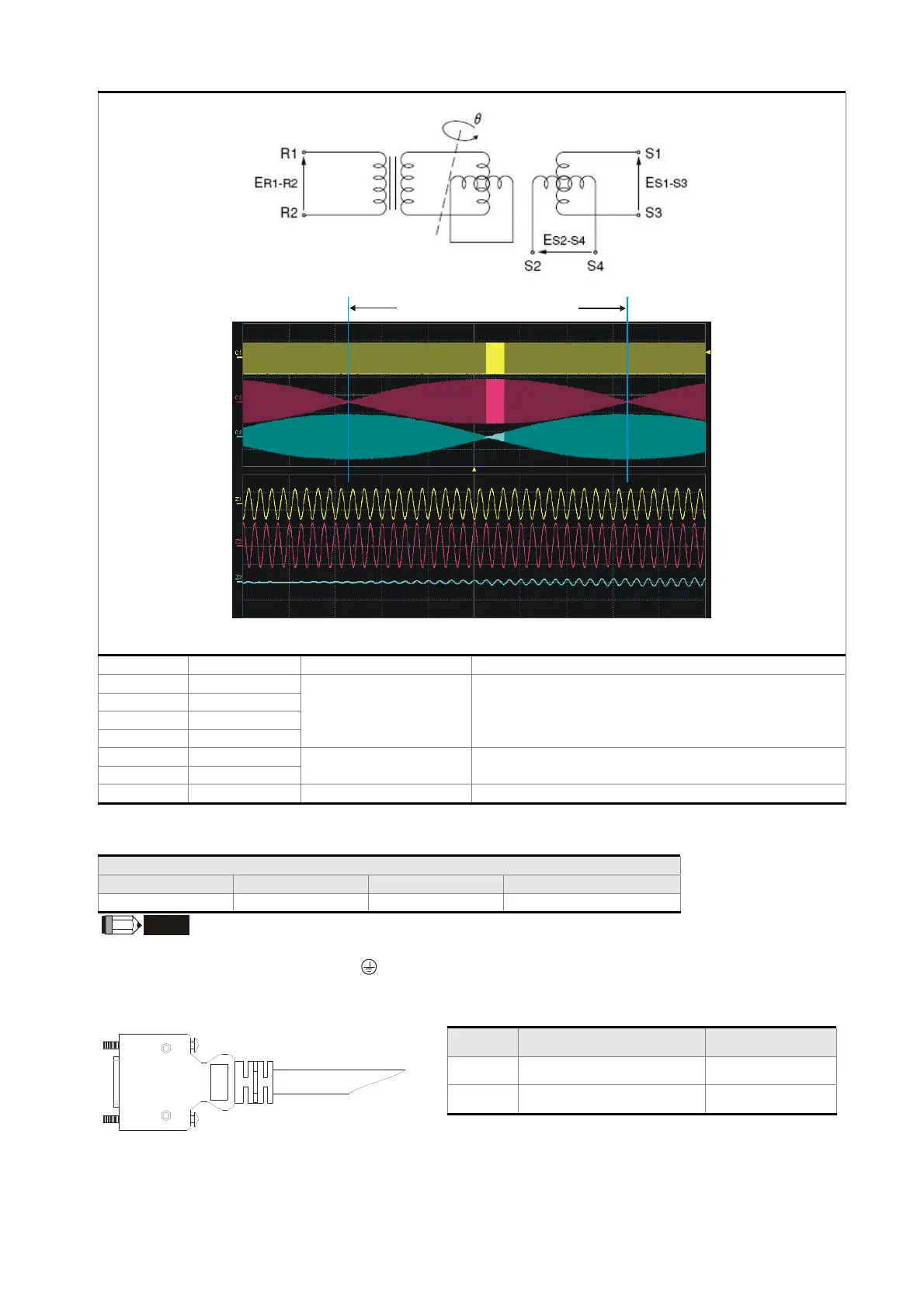

Function of J1 Terminal
360
0
As shown in the image above, from top to bottom: C1『E
R1-R2
』, C2『E
S1-S3
』, C3『E
S2-S4
』
Pin # Terminal Function Specification
4 SIN- (S4)
Resolver output signal 3.5±0.175Vrms, 10kHz
5 SIN+ (S2)
7 COS+ (S1)
9 COS- (S3)
14,16 REF+ (R1)
Resolver input power 7Vrms, 10kHz
13,15 REF- (R2)
blocked Blocked
Selection of Wiring Rod
Encoder Wiring — Wire Gauge mm² (AWG)
Size # of cores (pairs) Specification Standard Length
0.13 mm²(AWG26) 10 cores(4 pairs) UL2464 3m (9.84 ft)
NOTE
1） Please use shielded twisted-pair cable for encoder wiring so as to reduce the interference of the noise.
2）
The shield should connect to the phase of SHIELD.
3）
Please follow the Selection of Wire Rod when wiring in order to avoid the danger it may occur.
Connector Specification
Title Part # Manufacturer
PLUG 3M 10120-3000PE 3M
SHELL 3M 10320-52A0-008 3M
To Next Page
