Chapter 12 Description of Parameter SettingsMS300 (High Speed Model)
12-02-16


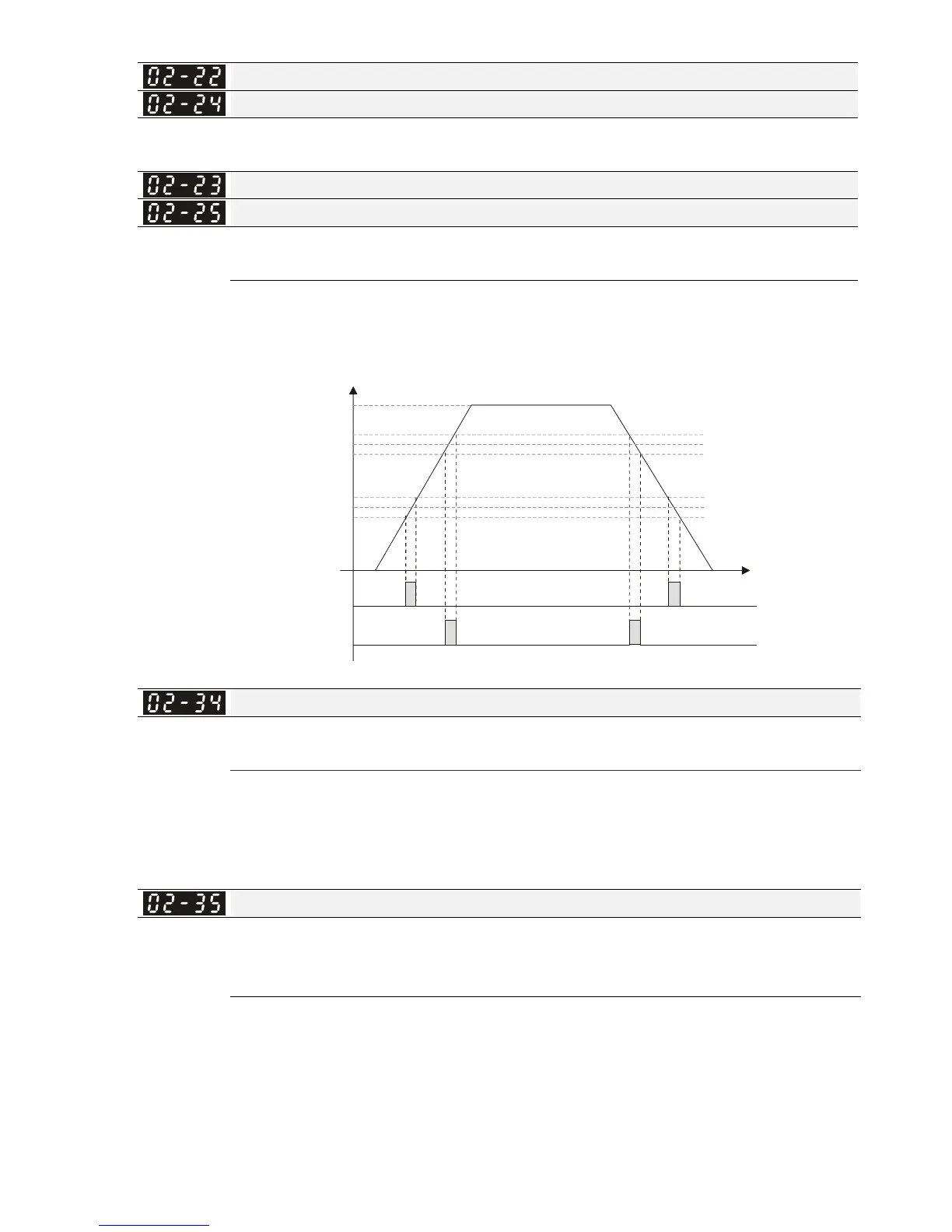

Desired Frequency Attained 1

Desired Frequency Attained 2
Factory Setting: 600.0 / 500.0
Settings 0.0~1500.0 Hz

The Width of the Desired Frequency Attained 1

The Width of the Desired Frequency Attained 2
Factory Setting: 20.0
Settings 0.0~1500.0 Hz
 Once output speed (frequency) reaches desired speed (frequency), if the corresponding
multi-function output terminal is set to 3 ~ 4 (Pr. 02-13, Pr. 02-36, and Pr. 02-37), this
multi-function output terminal will be “closed”.
02-13,02-14,
02-36,02-37,
Fcmd=60Hz
02-22=10Hz
02-23=2Hz
02-24=40Hz
02-25=2Hz
H
38Hz
40Hz
42Hz
10Hz
12Hz
8Hz
T
=3
02-13,02-14,
02-36,02-37,
=4

Output Frequency Setting for Multi-function Output Terminal
Factory Setting: 0.0
Settings 0.0~1500.0 Hz (Motor speed when using PG Card)
 When output frequency is ≥ Pr. 02-34 (actual output H ≥ 02-34), the multi-function terminal
(Pr. 02-13, 02-16, 02-17) be set to 29 will activate.
 When output frequency is < Pr. 02-34 (actual output H < 02-34), the multi-function terminal
(Pr. 02-13, 02-16, 02-17) be set to 30 will activate.

External Operation Control Selection after Reset and Activate
Factory Setting: 0
Settings 0: Disable
1: Drive runs if the run command still exists after reset or re-boots.
Set value is 1:
 Status 1: After the drive is powered on and the external terminal for RUN keeps ON, the drive will
run.
 Status 2: After clearing fault once a fault is detected and the external terminal for RUN keeps ON,
the drive can run after pressing RESET key.
