Chapter 12 Description of Parameter SettingsMS300 (High Speed Model)
12-02-17
Zero-speed Level of Motor
Factory Setting: 0
Settings 0~65535 rpm
This parameter should be used with the multi-function output terminals set to 43. Required to be
used with PG cared and motor with encoder feedback.
This parameter is used to set the level of motor at zero-speed. When the actual speed is lower
than this setting, the corresponding multi-function output terminal which is set to 43 will be ON,

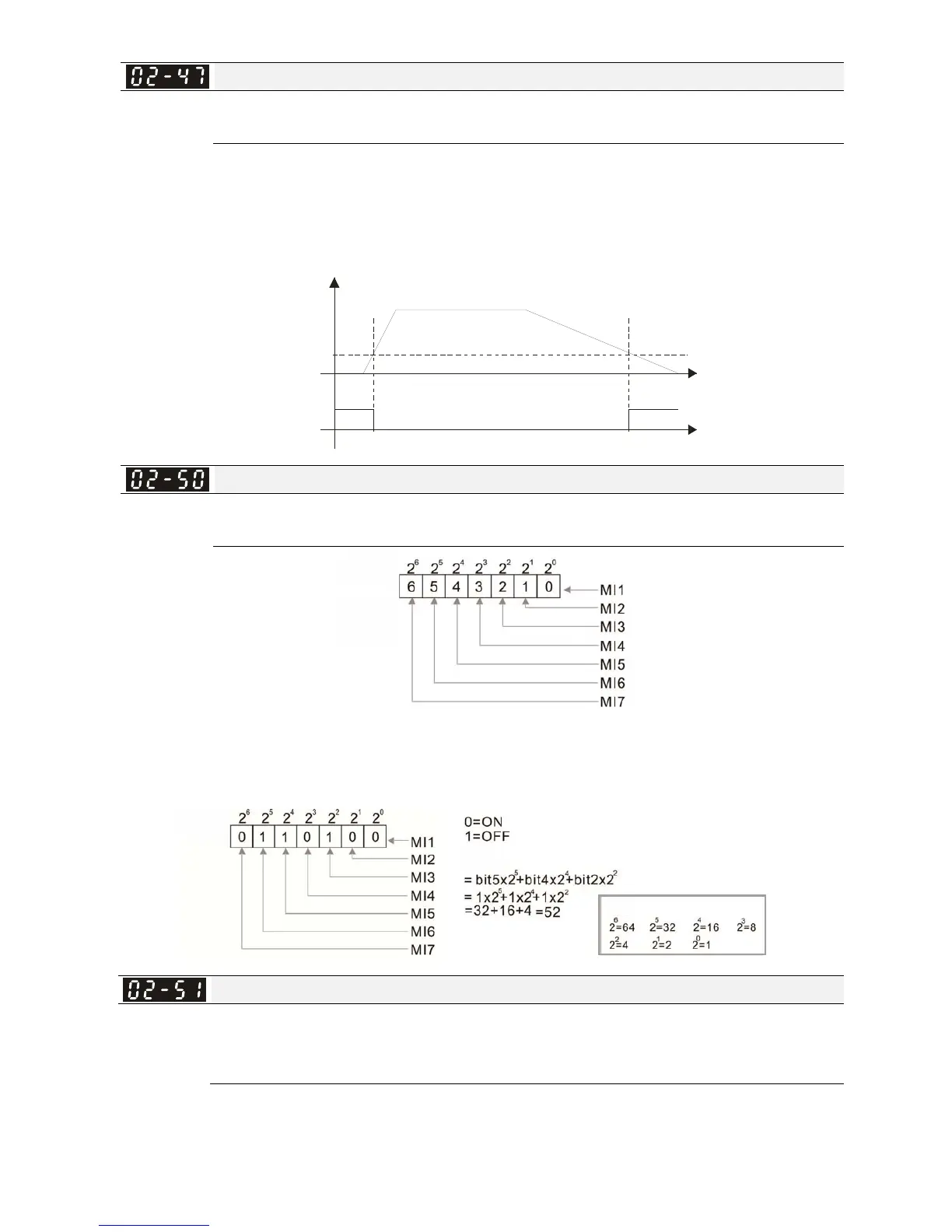

as shown below:
02-47
MO=d43
actual motor
speed
Time
Display the Status of Multi-function Input Terminal
Factory Setting: Read only
Settings Monitor the status of multi-function input terminals
Weight
Weights
Bit
0=ON
1=OFF
For Example:
If Pr. 02-50 displays 0034h (Hex), i.e. the value is 52 (decimal), and 110100 (binary). It means
MI3, MI5 and MI6 are ON.
Weights
Bit
Settings
NOTE
Status of Multi-function Output Terminal
Factory Setting: Read
only
Settings Monitor the status of multi-function output terminals
For Example:
When Pr. 02-51 displays 000Bh (hex), i.e. the value is 11 (decimal), and switched to 1011 (binary)
which means RY. MO1 is at ON status.
