Chapter 12 Description of Parameter SettingsMS300 (High Speed Model)
12-02-18
Weights
Bit
0=ON
1=OFF
Reserved
Reserved
Relay
MO1
MO2
NOTE

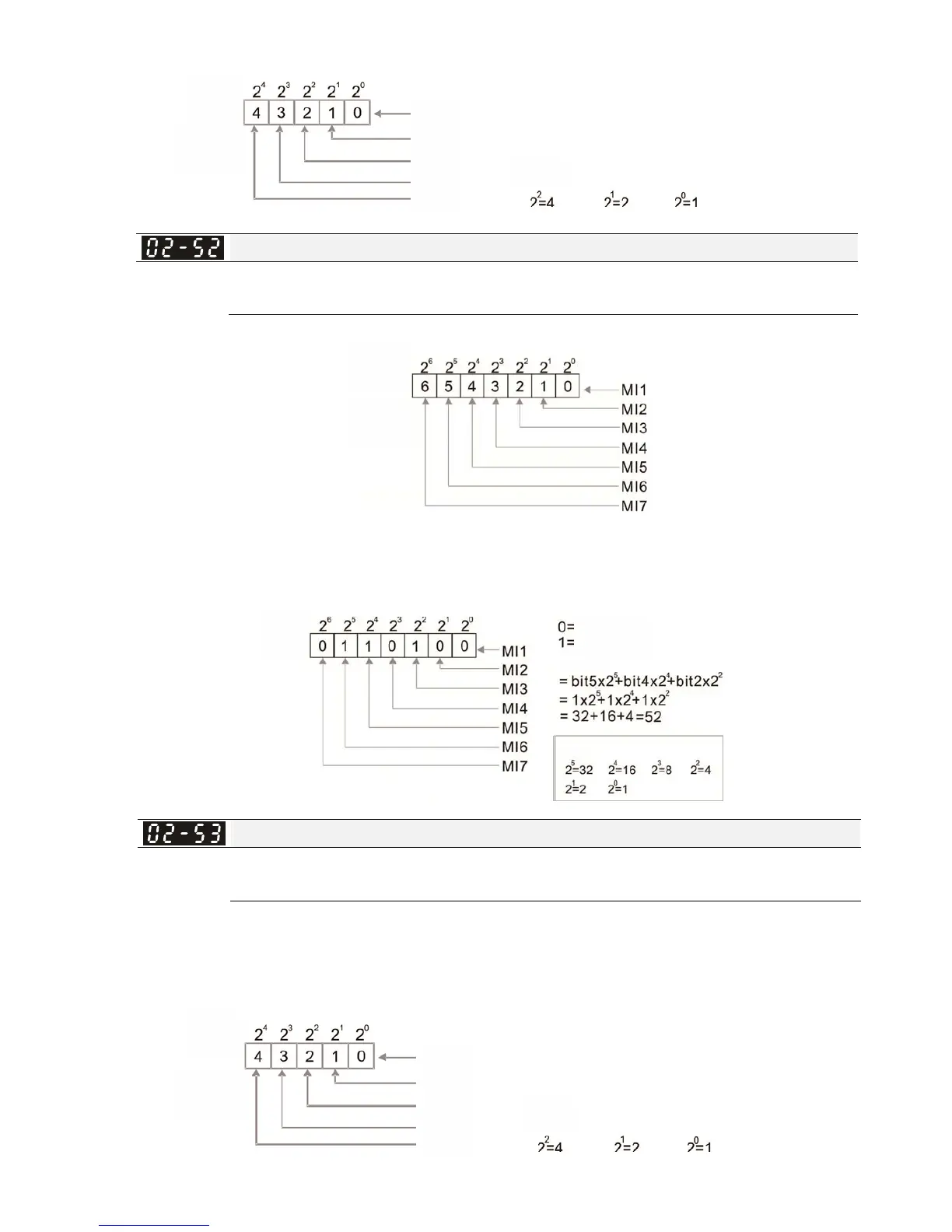

Display External Multi-function Input Terminal Used by PLC
Factory Setting: Read only
Settings Monitor the status of PLC input terminals
Pr. 02-52 displays the external multi-function input terminal that used by PLC.
Weights
Weights
Bit
0=ON
1=OFF
For Example:
When Pr. 02-52 displays 0034h (hex) and switched to 110100 (binary), it means MI3, MI5 and
MI6 are used by PLC.
Weights
Bit
Not used by PLC
Used by PLC
Displays
NOTE
Display External Multi-function Output Terminal Occupied by PLC
Factory Setting: Read only
Settings Monitor the status of PLC output terminals
Pr. 02-53 displays the external multi-function output terminal that used by PLC.
For Example:
When Pr. 02-51 displays 000Bh (hex), i.e. the value is 11 (decimal), and switched to 1011 (binary)
which means RY. MO1 is at ON status.
Weights
Bit
0=ON
1=OFF
Reserved
Reserved
Relay
MO1
MO2
NOTE
