TT-2000 Ticket Eater™ by Deltronic Labs February 2013
Maintenance Checklist
1. To avoid damaging the sensor board, remove it before releasing or removing the
Guide Assembly.
2. When the Guide Assembly is released or the entire assembly is removed for
servicing or cleaning, follow this procedure to replace it:

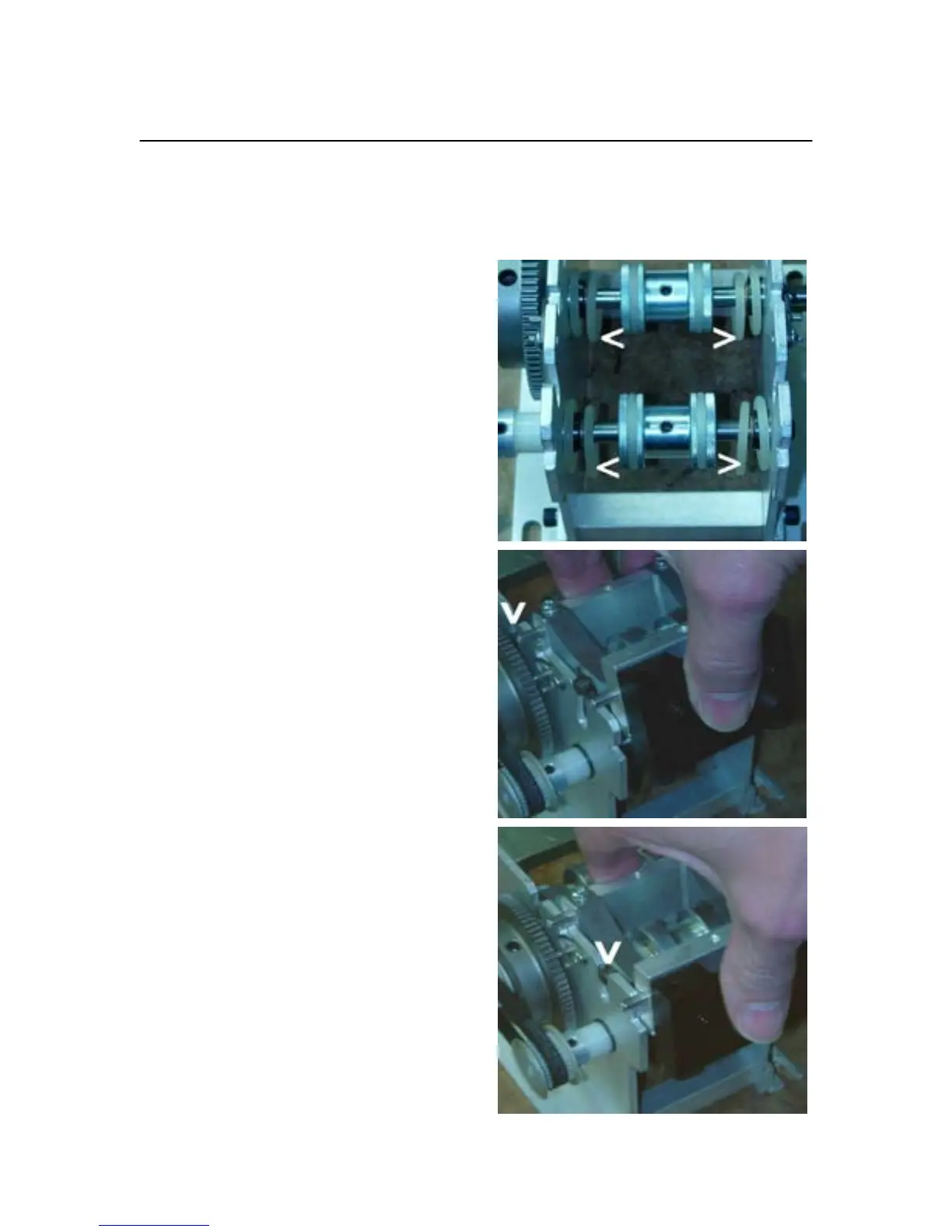

a. The motor assembly has extra
O rings installed on both the
Lower Drive Roller Shaft
and the Motor Shaft. Before
replacing the guide assembly,
make sure the O rings are not
riding on the sides of the
rollers. They should be next
to the Side Plates and away
from the rollers.
b. Place the Rear Idler Roller
(the one closest to the cutter)
into its slots in the side plates.
c. Let the Front Idler Roller
Shaft drop into its slots in the
side plates.
To Next Page
