TT-2000 Ticket Eater™ by Deltronic Labs February 2013

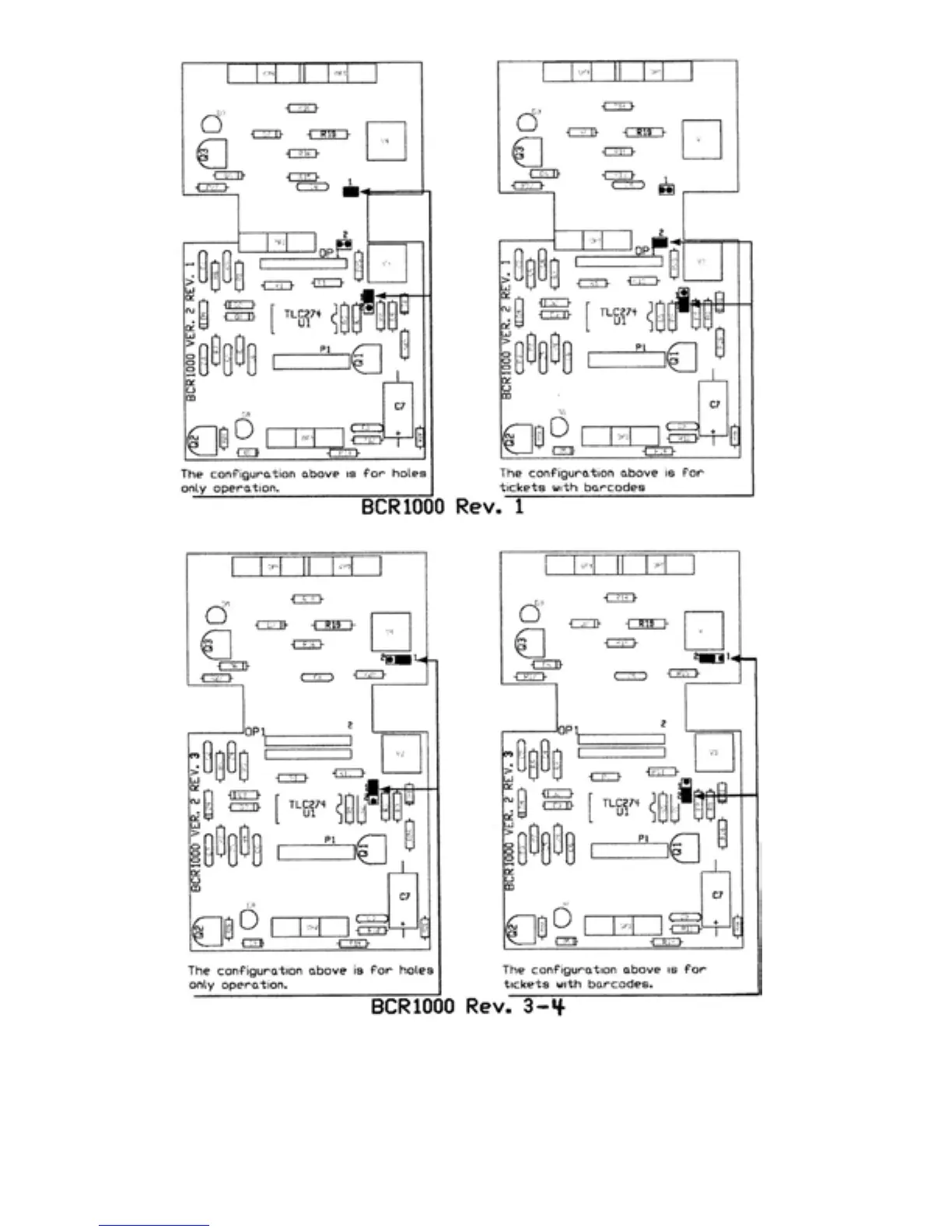

These drawings show configurations for BCR1000 sensor board revisions that can be configured to read
barcoded or holes-only tickets. The top drawings are for revision V2R1; the bottom are for revisions V2R3
& V2R4. The drawings on the right show the jumper positions for barcoded tickets. Those on the left are
for holes-only tickets. Holes-only operation is intended for emergency situations only. Note that the logic
board options must also be changed to match the jumpers. Version 5 BCR1000 boards can not be
configured as holes-only boards.
