TT-2000 Ticket Eater™ by Deltronic Labs February 2013
32

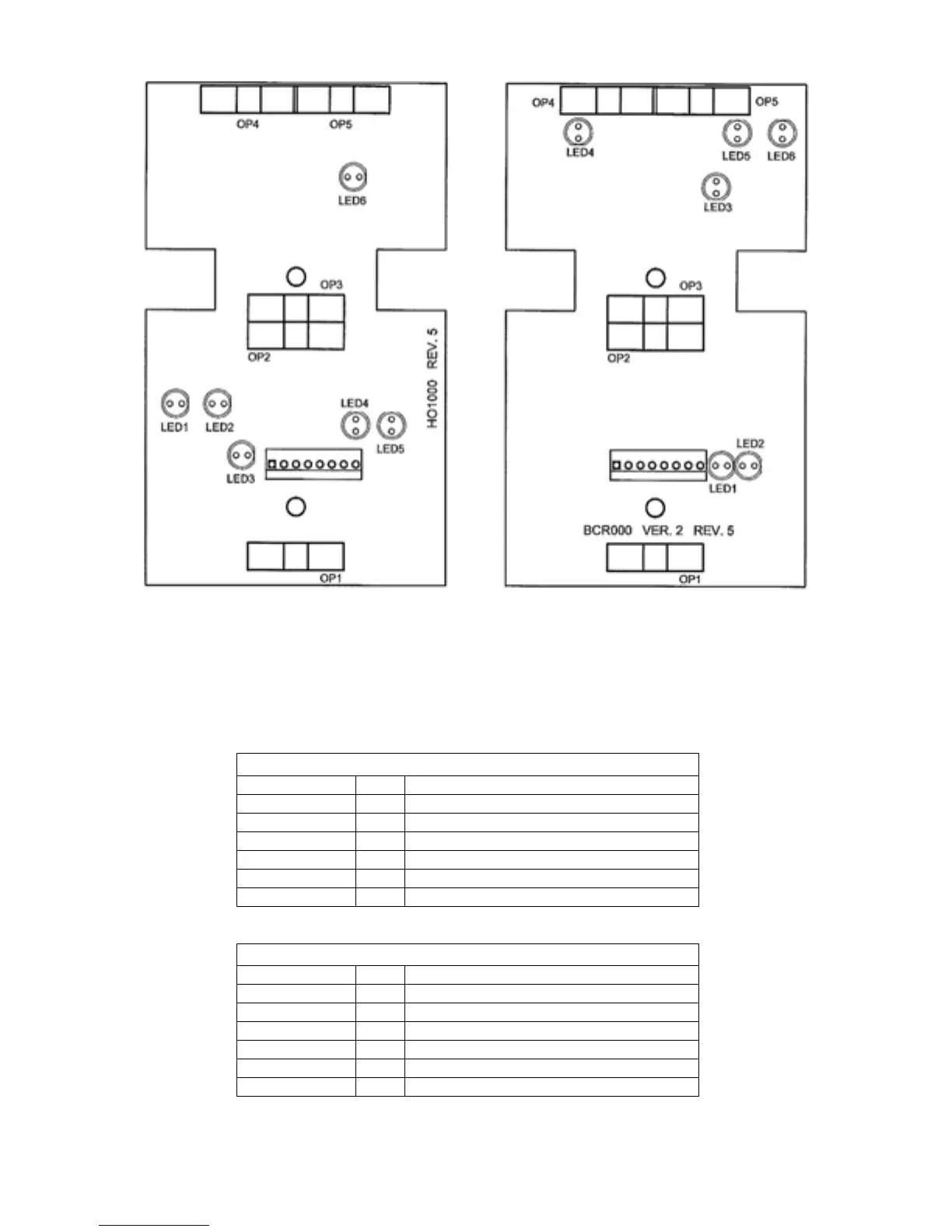

The Rev. 5 sensor boards have 6 LED’s and 5 sensors. There is an LED for each sensor,
and an LED to indicate a cheating or an error condition. The front sensor detects the
ticket to turn the motor on. The middle sensors work together to count the tickets and
detect cheating. The rear sensors provide additional cheat detection.
HO-1000
SENSOR
LED
NOTES
Front
4
On when sees ticket
Middle Front
1
On when sees ticket
Middle Rear
6
On when sees ticket
Rear Left
3
On when sees ticket
Rear Right
2
On when sees ticket
5
Flashes on for error or cheating
BCR-1000
SENSOR
LED
NOTES
Front
2
On when sees ticket
Middle Front
3
On and off as it sees ticket and barcode
Middle Rear
4
On when sees ticket
Rear Left
5
On when sees ticket
Rear Right
6
On when sees ticket
1
Flashes on for error or cheating
