6.2 KP-T16 clamp-type buffer
1
1
2
2
90˚
1
1

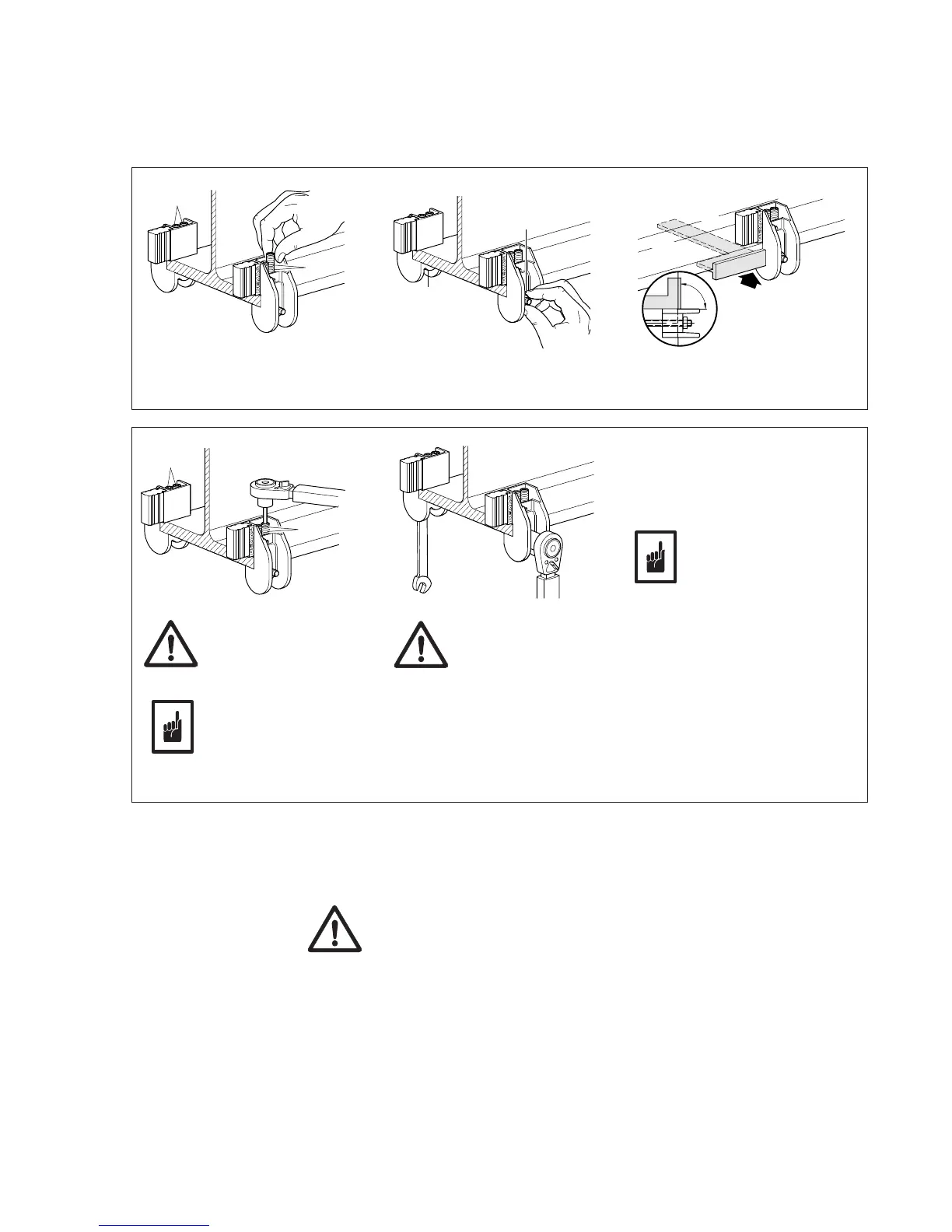

Slide the clamp-type buffer onto the runway girder. Slightly
tighten grub screws (1) on both sides.
Slightly tighten hexagon nuts (2) on both sides.
Align the clamp-type buffer.
41910844.eps
41910944.eps
41911044.eps
41911144.eps
41911244.eps
Fig. 3
Fig. 4
Grub screws (1)
Tightening torque = 20 Nm
alternately tighten to same amount.
Only the supplied grub screws may be used.
M 10 x 70 to DIN 916
Hex. nuts (2)
Tightening torque = 40 Nm
Buffer profile part nos.: KP-T16 826 953 44
Safety instructions
All bolted connections of the clamp-type buffer must be checked for tight fit once a
year. Retighten to tightening torques specified in fig. 4 as required.
Loosened screws might result in the travel unit falling down.
For testing, run the hoist unit
against the clamp-type buffer
