21491244.p65/201204
24
6
11
1
5
4
2
10
7
9
12
3
400
500
2000
≤
2000
≤
2000
≤
250
250
13
5
8
7 Electrical components
Depending on the span of the crane bridge the following quantities of the sub-
assemblies item 8 to item 11 are used:
The scope of delivery includes:

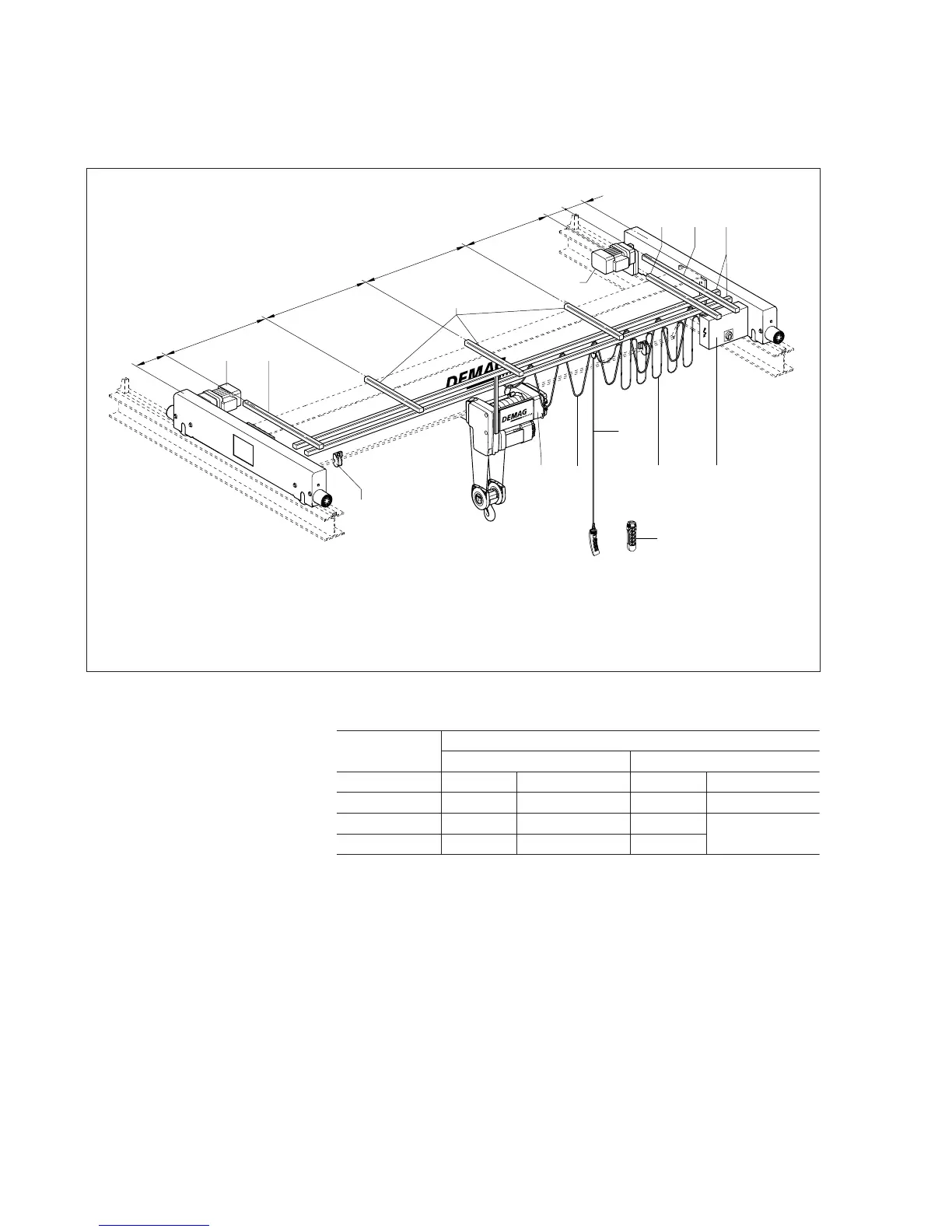

Fig. 5
42678344.eps
1 EKDR incl. equipment set
2 Crane bridge enclosure complete
3 Power supply of the monorail hoist -W2, -W6
4 Mobile control/power supply system -W11
9 C rail subassembly 40 x 40 x 3 x 1500 mm
10 C rail subassembly 40 x 25 x 3 x 1500 mm
11 C rail subassembly 40 x 25 x 3 x 2200 mm
12 Track section 5000 mm
Track coupling (no illustration)
13 Clamp-type buffer
5 DSE suspension complete -W12
or DRC radio remote control
6 Long-travel drive supply line -W4
7 Long-travel drive supply line -W5
8 C rail subassembly 40 x 40 x 3 x 2200 mm
EKKE single-girder crane
ylbmessabuS enarcrepstsiohliaronomforebmuN
12
8metIx144635297x144635297
9metIx144035297x144035297
01metIxn44925297xn
54
910037
11metIx144535297x1
n ~ span x 0,6 - 1,28
C rail subassembly for crane bridges with one monorail hoist
• Item 8 - C rail subassembly 2200 x 40 x 40 x 3 (part no. 792 536 44)
for fixing the crane bridge enclosure, item.2 , which is simultaneously used for
guiding the cable to the long-travel drive.
• Item 9 - C rail subassembly 1500 x 40 x 40 x 3 (part no. 792 530 44)
for fixing the crane bridge enclosure, item 2
• Item 10 - C rail subassembly 1500 x 40 x 25 x 3 (part no. 792 529 44)
• Item 11 - C rail subassembly 2200 x 40 x 25 x 3 (part no. 792 535 44),
which is simultaneously used for guiding the cable to the long-travel drive.
C rail subassembly for crane bridges with two monorail hoists
• Item 8 - C rail subassembly 2200 x 40 x 40 x 3 (part no. 792 536 44)
for fixing the crane bridge enclosure, item 2
• Item 9 - C rail subassembly 1500 x 40 x 40 x 3 (part no. 792 530 44)
for fixing the crane bridge enclosure, item 2
• Item 10 and item 11
-n + 1 x C rail subassembly 2200 x 40 x 25 x 3 (part no. 730 019 45)
