21491244.p65/201204
14

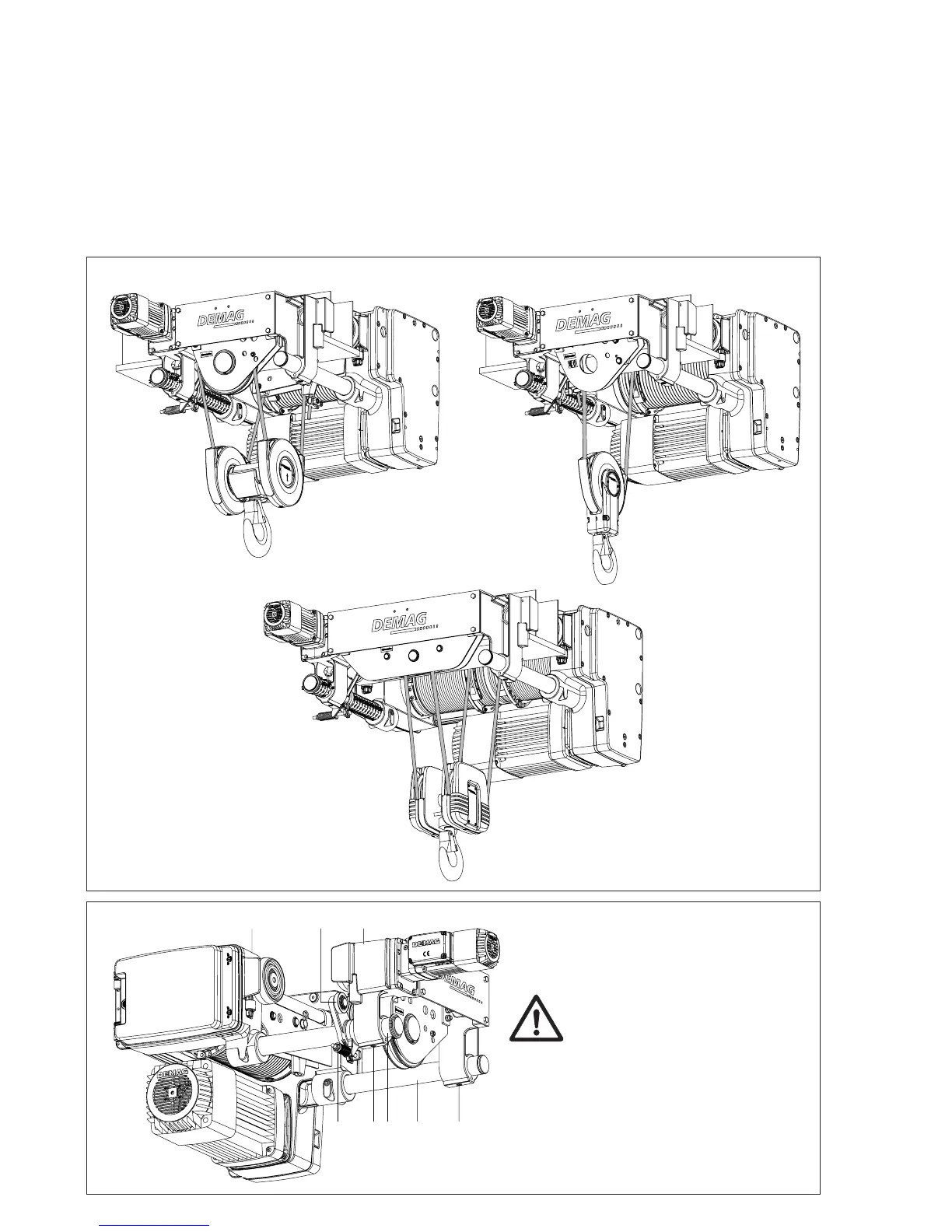

Overview of the necessary assembly work.
The following illustarations show the general work steps.
For correct assembly observe the specifications in the corresponding
Operating instructions: EKDR Pro 3 - 5 - 10 214 725 44
Operating instructions: EKDR Com 3 - 5 – 10 214 916 44
1
4
6
3
2
5
7
5
4/1 reeving
3.1.1 Assembling trolleys of the 3,
5 and 10 range
3 Overview of DR rope hoist assembly
3.1 Adjusting EKDR Pro/-Com 3 – 5 – 10 low-headroom monorail hoists,
4/1, 2/1 and 4/2 rope reeving
2/1 reeving
42576445.eps
4/2 reeving
EKDR Pro 10
42063545.eps
42583644.eps
42584244.eps
Safely support the travel unit, before you place it onto the
girder in order to avoid any danger due to
• crushing hazard
• shearing hazard.
This support may only be removed after supporting roller
(6) has been adjusted.
Slide wheel legs (1) – travel motor side – on connecting rods
(2 + 3)(loosen threaded pin (5) before).
