The following cable modules are assembled according to the design variant:
Intermediate switch (different from the intermediate switches without anti-collision
device)
• Intermediate switch with connector designation 1X16.2 FIN BACK and
-2X48.2 Prelim BACK
• Intermediate switch with connector designation 2X16.2 FIN FORW and
-1X48.2 Prelim FORW
Light barrier
• Light barrier with connector designation –1X16.2 FIN BACK
• Light barrier with connector designation –1X16.2 FIN FORW
• Light barrier with connector designation –1X16.2 Prelim BACK
• Light barrier with connector designation –1X16.2 Prelim FORW

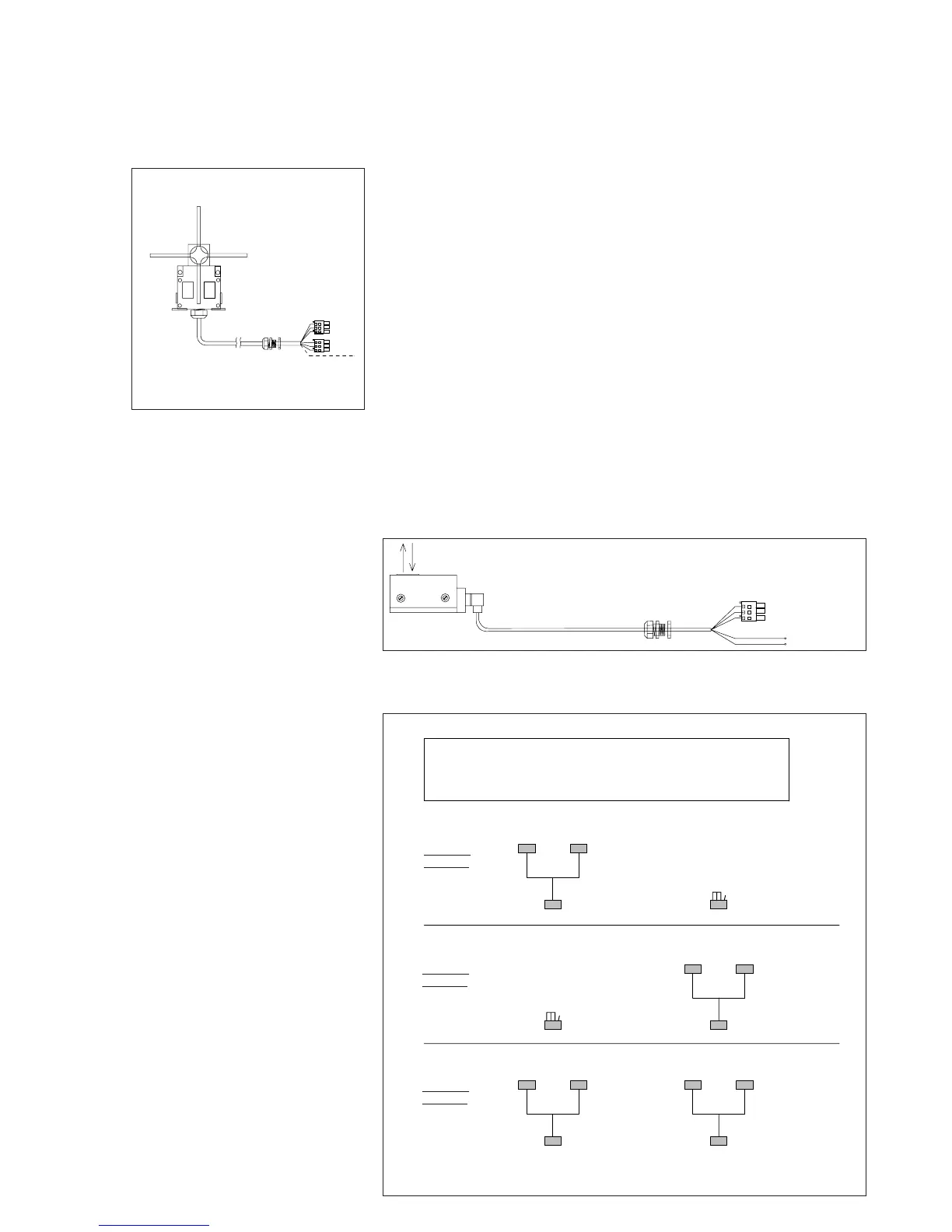

Additionally when connecting, a parameter must be set and a jumper must be
inserted depending on the design variant (see drawing below).
Jumpers (X16 and X48) are inserted in the board of the
crane bridge enclosure. Each cable module is equipped
with a jumper (suitable for forward and backward).
1X48.1
Forward
2X48.1
Backward
Cable with Y
connector
719 864 45
X48 – prelim / fast X16 - jumper
Parameter
E 020K08
Fast = 2
2X16.1
forward
1X16.1
backward
Cable with Y
connector
719 863 45
X16 - Fin / generalX48 - jumper
Parameter
E 020K08
General = 1
1X48.1
Forward
2X48.1
Backward
Cable with Y
connector
719 864 45
X48 – prelim / fast
Parameter
E 020K08
2-stage = 3
2X16.1
forward
1X16.1
backward
Cable with Y
connector
719 863 45
X16 - Fin / general
Fast
General
2-stage
42679244.eps
2
4
3
1
A
B1
B2
B
A2
A1
0
1
3
2
2
1
3
5
6
42679044.eps
42679144.eps
