Denon AVR-1513 Service Manual

51
YES
YES
YES
(20) Check xtal oscillator.
Is there 28.6363MHz oscillation of X101?
(21) Check RESET.
Is RESET waveform conrmed at IC11 (97pin)? (If reference
waveform, proceed to "YES".)
HDMI output circuitry is defective (IC11 and surrounding circuitry).
Replace the IC11.
(22) Check control signal(I2C).
Is waveform conrmed at Test point (SDA/SCL). (If not continued
to " L", proceed to "YES".)
The X101 or IC11 is defective.
Replace the new parts.
The RESET pattern or IC11 is defective.
Replace the new parts.
The SDATA/SCL line pattern is defective.
NO
NO
NO
YES

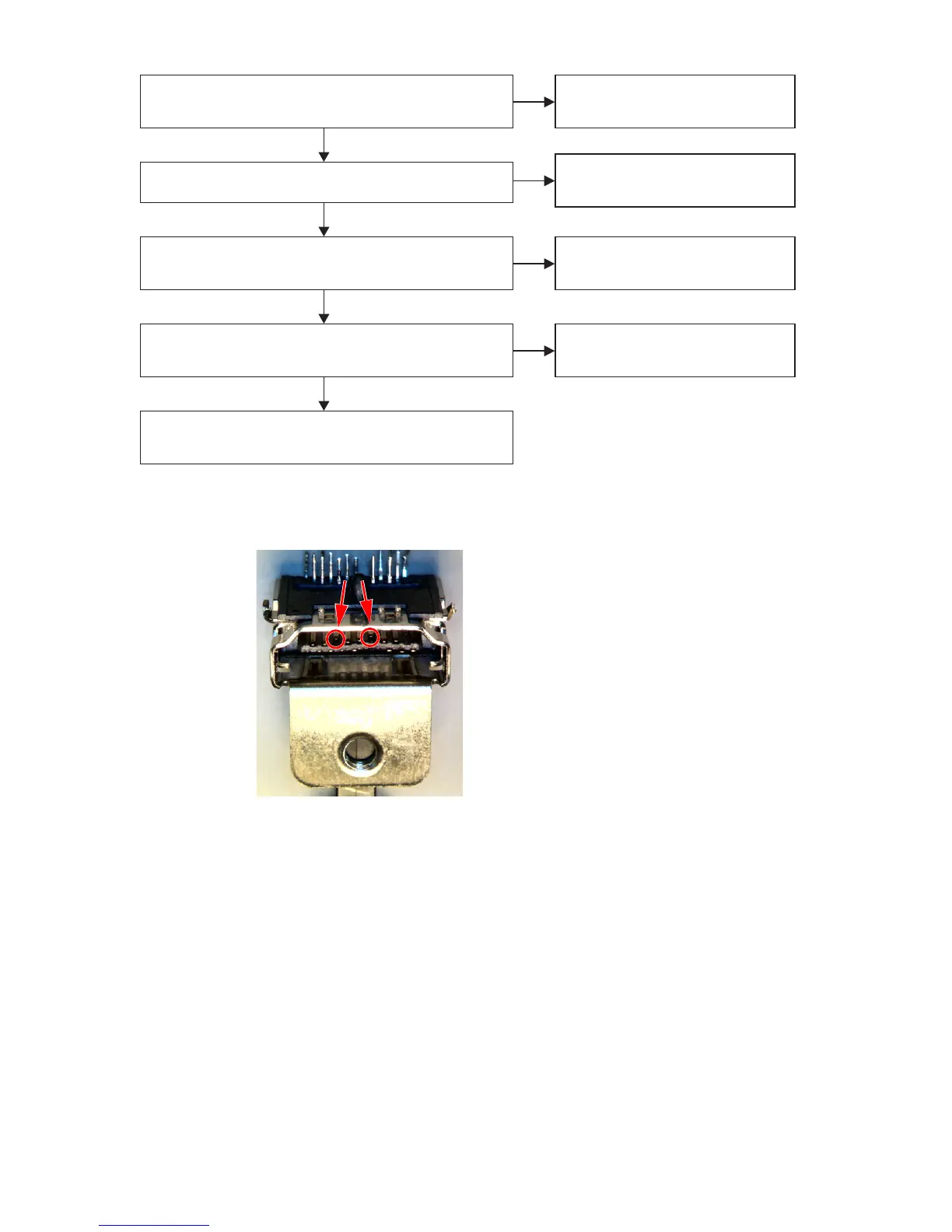

(19) Check power supply.
Are 1.8V or 3.3V supplied to IC11 (each power supply pin)?
The power supply circuitry is defective.
NO
(*1) Abnormal sample of HDMI connector : The internal terminal has bent.

Denon AVR-1513 Specifications

General

Receiver type	-
Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Power output per channel (1KHz@6 Ohm)	110 W
Power output per channel (20-20KHz@8 Ohm)	75 W
HDMI in	4
Composite video in	2
Digital audio optical in	1
Connectivity technology	Wired
Ethernet LAN	No
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Radio Data System (RDS)	Yes
Preset stations quantity	56
Supported video modes	1080p, 720p
Analog signal format system	NTSC, PAL
Display	LCD
Product color	Black
Audio decoders	Dolby Pro Logic II, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-HD
Apple docking compatibility	Not supported
Graphical user interface (GUI) language	English
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	319 mm
Width	434 mm
Height	151 mm
Weight	7800 g
