Denon AVR-1513

58

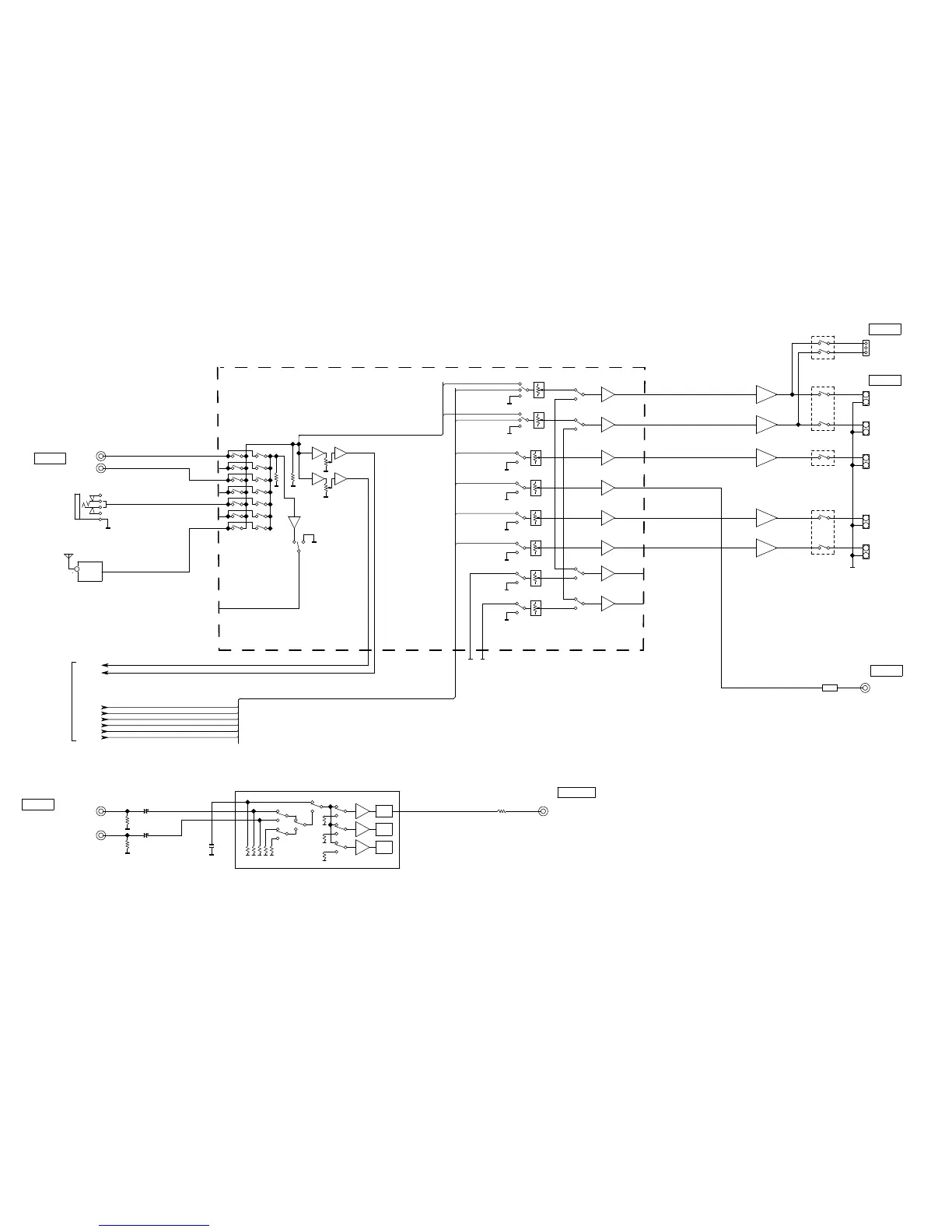

ANALOG AUDIO/VIDEO BLOCK DIAGRAM
DVD
AUDIO IN
MAIN AMP
CEN
FR
FL
H/P L
GND
H/P R
+
-
-
+
-
+
+
-
-
+
SL
SR
2SD2390/2SB1560
SAT/CBL
NJU72340A
DA_FL
VOL IC
H/P OUT
SPK OUT
PRE OUT
DA_FR
DA_CEN
DA_SW
DA_SL
DA_SR
DA_SBL
DA_SBR
ANA_FL
ANA_FR
MAIN
SWMUTE
PORTABLE(FRONT)
TUNER
AD_FL
AD_FR
TO DIGITAL
AUDIO BLOCK
DA_FL
DA_FR
DA_CEN
DA_SW
DA_SL
DA_SR
6dB
75ohm
Driver
6dB
75ohm
Driver
6dB
75ohm
Driver
20K
20K
20K
20K
DVD
CVBS IN
SAT/CBL
75
75
NJM2595
CVBS OUT
MONITOR OUT
75
FM/AM
DA01
DA02
DA03
DA04
DA05
DA06
