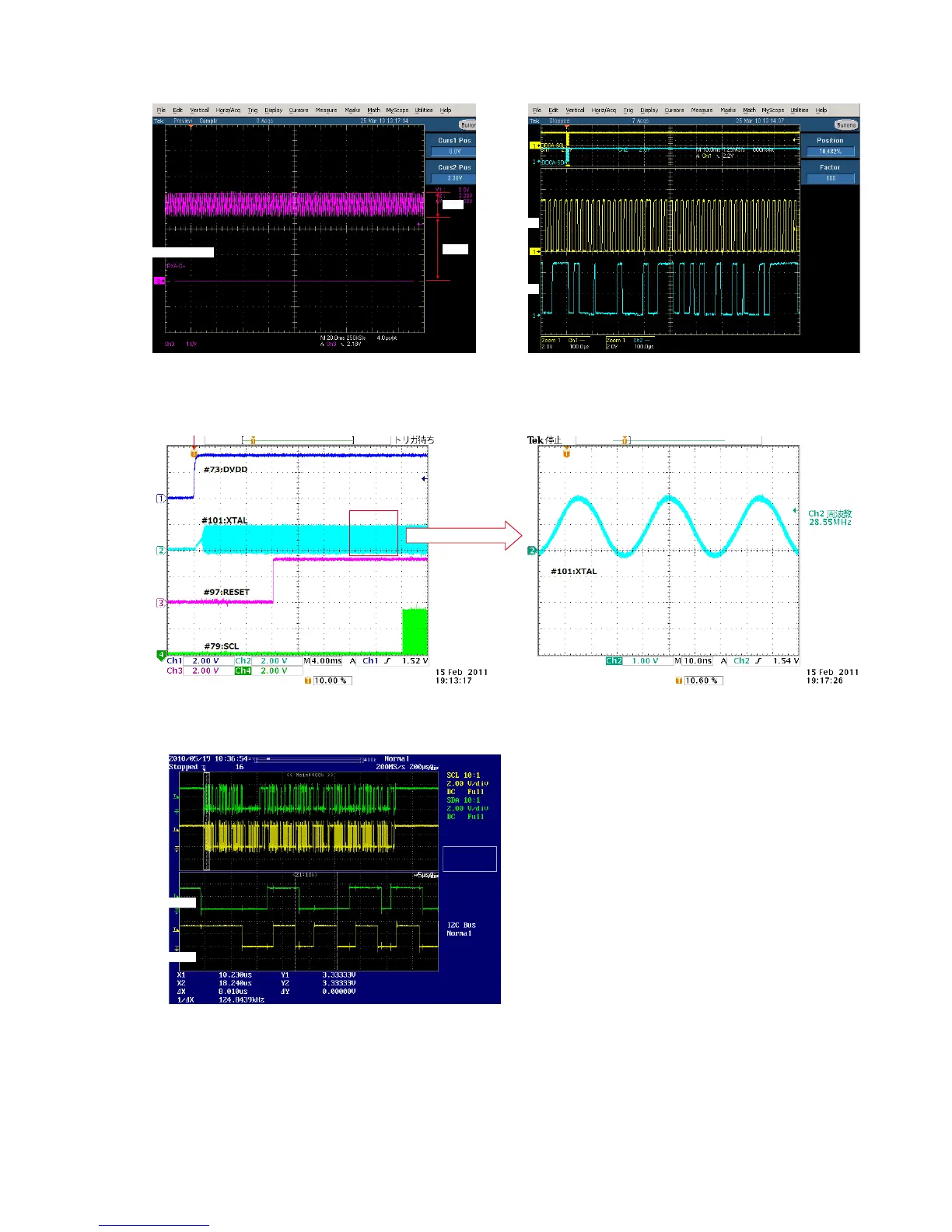

DDC_CLK/DDC_DATA/TMDS : Check items (16),(18)
DVDD/XTAL/RESET/SCL : Check items (19),(20),(21)
HDMI_SDA/SCL(I2C) : Check item (22)
0.9V
2.48V
TMDS SIGNAL
DDC_CLK
DDC_DATA
HDMI_SDA
HDMI_SCL
