4
AVR-1603/683

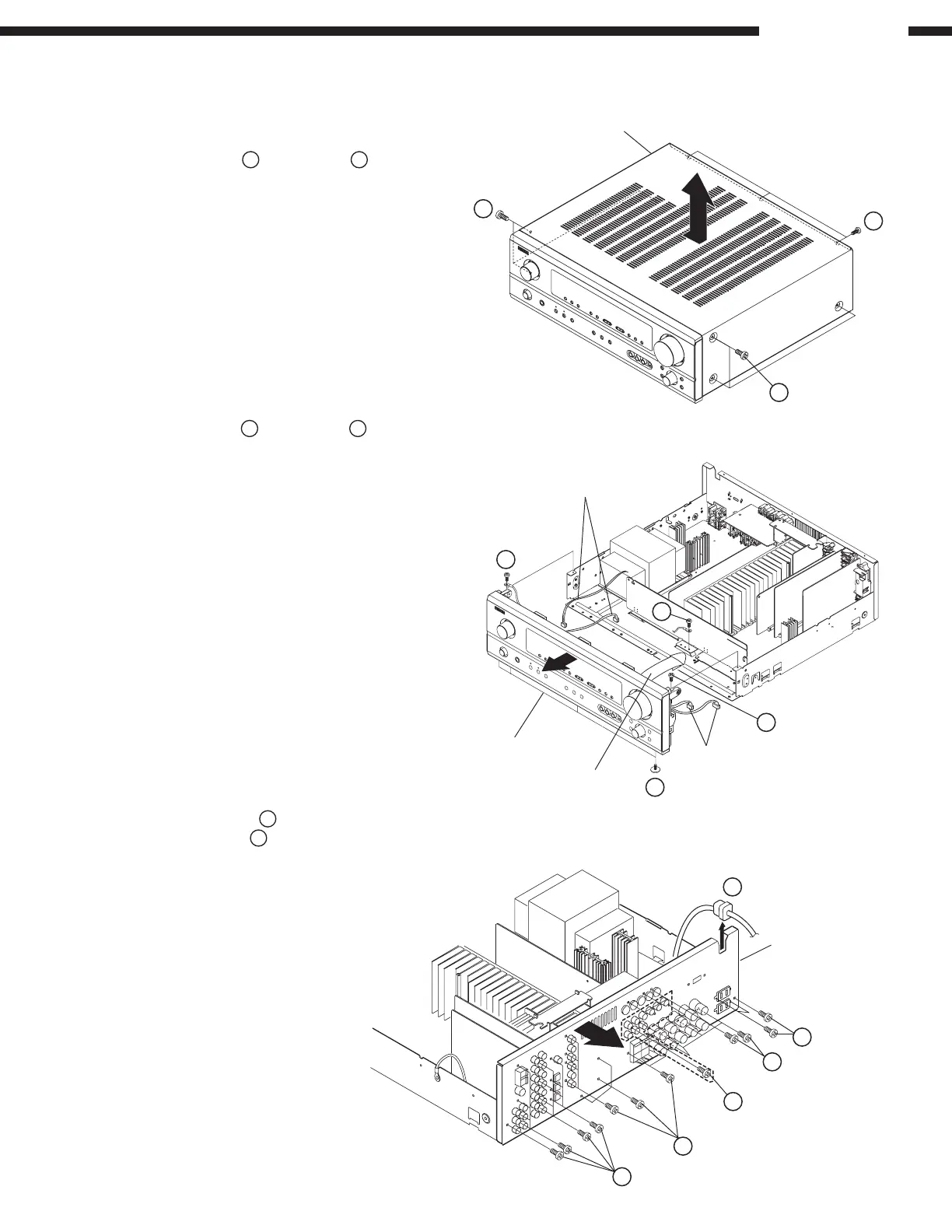

DISASSEMBLY
(Follow the procedure below in the reverse order when reassembling)
1. Top Cover
Remove 6 screws
1
and 3 screws
2
, then detach the
Top Cover to the arrow direction.
1
2. Front Panel
(1) Remove 4 screws
3
and 3 screws
4
.
(2) Disconnect 3 connectors and FFC coming from the
Front Panel side.
(3) Disconnect the connector coming from the Trans., and
detach the Front Panel to the arrow direction.
1
2
Top Cover
3
4
Connector
Connector
FFC
Front Panel
6
Rear Panel
6
6
6
5
(U.S.A. & Canada models)
6
3. Rear Panel
(1) Take off the AC cord
5
.
(2) Remove 32 screws
6
(36 pieces for U.S.A. & Canada models).
(3) Detach the Rear Panel to the arrow direction.
4
4
