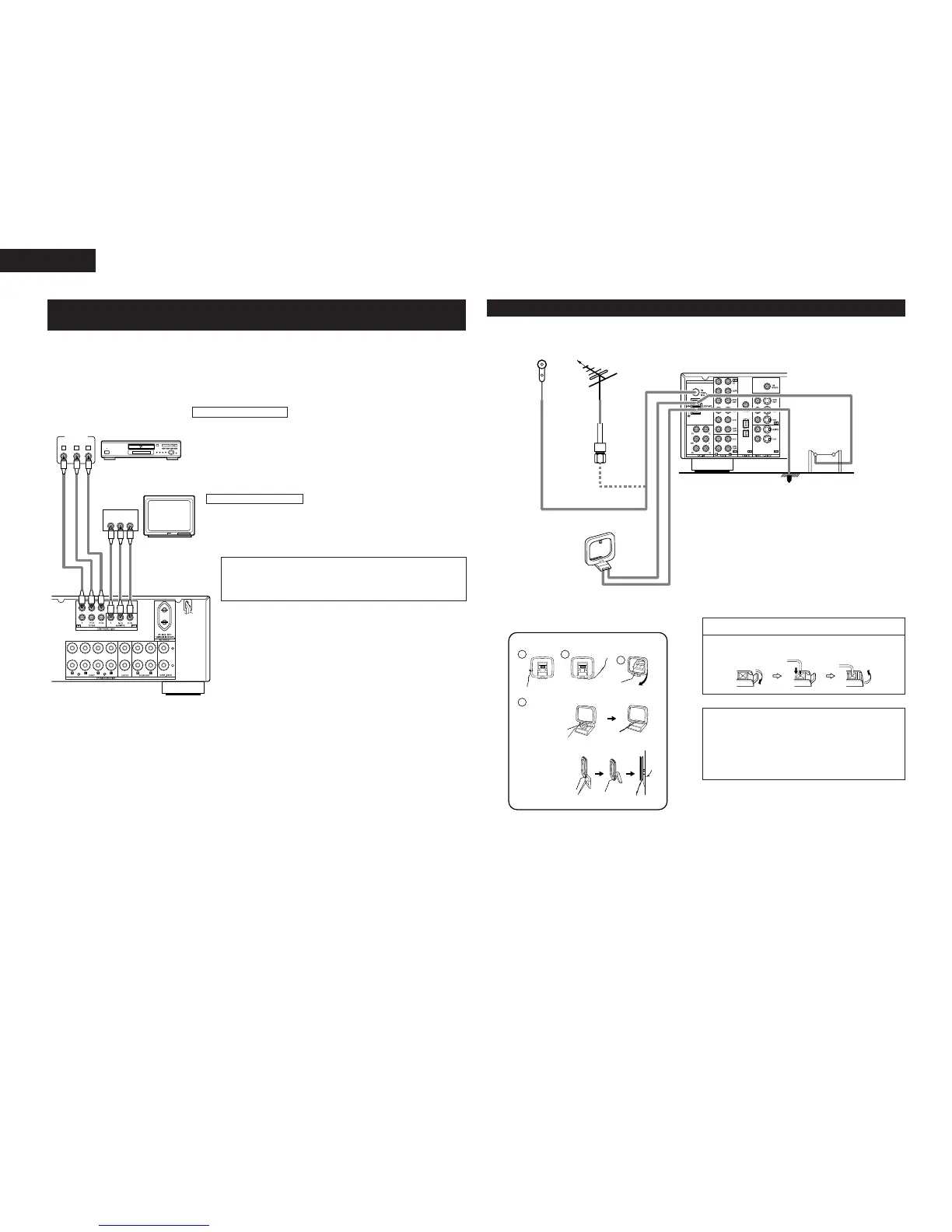

AM loop antenna assembly
Connect to the AM
antenna terminals.
Remove the vinyl tie
and take out the
connection line.
Bend in the reverse
direction.
a. With the
antenna on top
any stable
surface.
b. With the antenna
attached to a
wall.
Mount
Installation hole Mount on wall, etc.
Connection of AM antennas
1. Push the lever. 2. Insert the
conductor.
3. Return the
lever.
NOTES:
• Do not connect two FM antennas simultaneously.
• Even if an external AM antenna is used, do not
disconnect the AM loop antenna.
• Make sure AM loop antenna lead terminals do
not touch metal parts of the panel.
Connecting the video component equipped with Color Difference
(Component - Y, P
R/CR, PB/CB) Video jacks
• When making connections, also refer to the operating instructions of the other components.
• The signals input to the color difference (component) video jacks are not outputs to the VIDEO output jack
(yellow) or the S-Video output jack.
• Some video sources with component video outputs are labeled Y, C
B, CR or Y, Pb, Pr or Y, R-Y, B-Y. These
terms all refer to component video color difference output.
DVD player
Monitor TV
Connecting a DVD player
DVD IN jacks
• Connect the DVD player‘s color difference (component) video output jacks
(COMPONENT VIDEO OUTPUT) to the COMPONENT DVD IN jack using 75
Ω/ohms coaxial video pin-plug cords.
• In the same way, another video source with component video outputs such as a
TV/DBS tuner, etc., can be connected to the TV/DBS color difference (component)
video jacks.
Connecting a monitor TV
MONITOR OUT jack
•Connect the TV‘s color difference (component) video input jacks (COMPONENT
VIDEO INPUT) to the COMPONENT MONITOR OUT jack using 75 Ω/ohms
coaxial video pin-plug cords.
• The color difference input jacks may be indicated differently on some
TVs, monitors or video components (“C
R, CB and Y”, “R-Y, B-Y and
Y”, “Pr, Pb and Y”, etc.). For details, carefully read the operating
instructions included with the TV or other component.
