Denon AVR-1708 Service Manual

13
AVR-1708/1508/688/588/488 AVC-1508

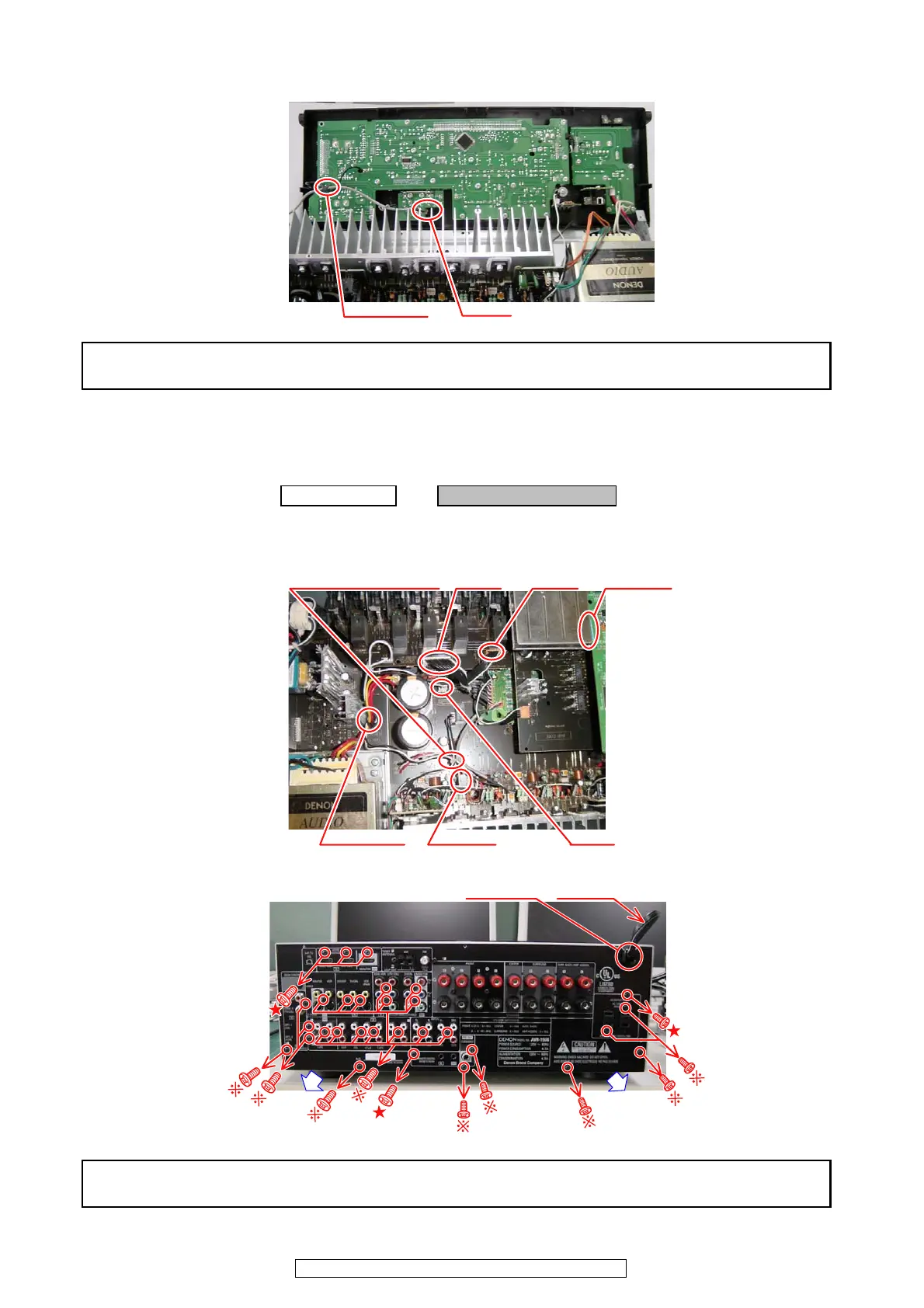

2.CHASSIS BACK ASSY
(1) Disconnect the connector wires and unscrew a screw. ( コネクタワイヤーとねじをはずす。)
Picture F
CP306
Cord holder
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in panel front assy.
Panelfrontassy の各基板のはずしかたは "EXPLODEDVIEW" を参照してください。
Proceeding (手順) : CABINET TOP → CHASSIS BACK ASSY
Picture E
CP103
CP101
CP103
CP102
FFC cable
Wire clamp band : CUT
Cord holder
Picture B
Cord bush
AC cord
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in Chassis back assy.
Chassisbackassy の各基板のはずしかたは "EXPLODEDVIEW" を参照してください。

Denon AVR-1708 Specifications

General

Speakers connectivity type	-
Receiver type	Surround
Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Power output per channel (1KHz@6 Ohm)	110 W
Power output per channel (20-20KHz@8 Ohm)	75 W
Equalizer	Yes
HDMI version	1.3a
Product color	Black
Audio decoders	DTS, DTS 96/24, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), Dolby Digital, Dolby Digital EX, Dolby Pro Logic II, Dolby Pro Logic IIx
Apple docking compatibility	iPod
Optical drive included	No
HDMI in	2
Composite video in	4
S-Video inputs quantity	3
Headphone connectivity	6.3 mm
Number of HDMI outputs	1

Weight and Dimensions

Depth	383 mm
Width	434 mm
Height	171 mm
Weight	11100 g
