Denon AVR-1708 Service Manual

14
AVR-1708/1508/688/588/488 AVC-1508
3.CPU ASSY

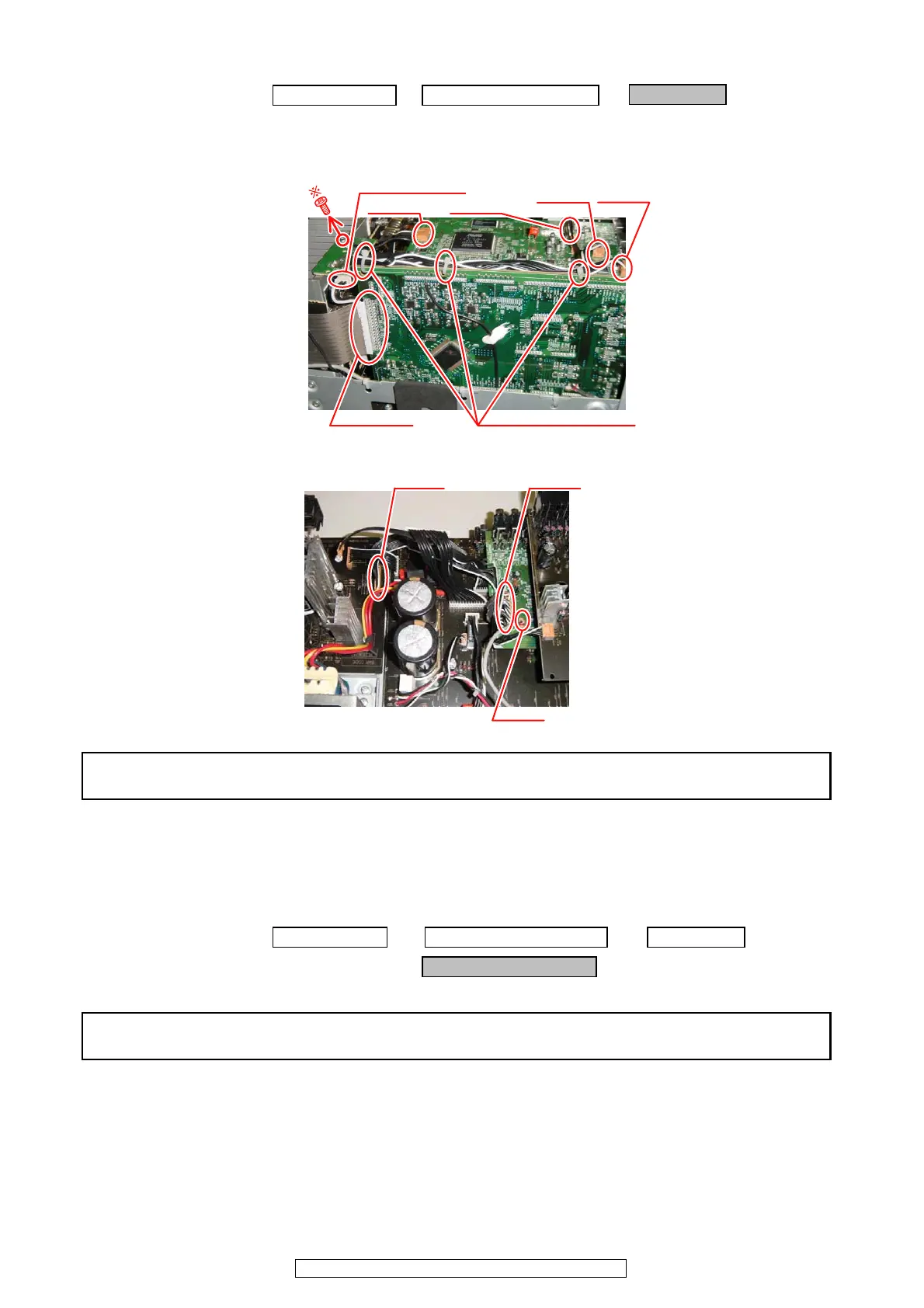

(1) Disconnect the connector wires and screw. ( コネクタワイヤーとねじをはずす。)
4. CHASSIS MAIN ASSY
Proceeding (手順) : CABINET TOP → CHASSIS BACK ASSY → CPU ASSY
Picture H
CP404
Connector wire
FFC cable Wire clamp band : CUT
CP904
CP406
CP405
Picture E
CP704CP514
CP705
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in CPU assy.
CPUassy の各基板のはずしかたは "EXPLODEDVIEW" を参照してください。
Proceeding (手順) : CABINET TOP → CHASSIS BACK ASSY → CPU ASSY
→ CHASSIS MAIN ASSY
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in chassis main assy.
Chassismainassy の各基板のはずしかたは "EXPLODEDVIEW" を参照してください。
