Denon AVR-1913 Service Manual

50

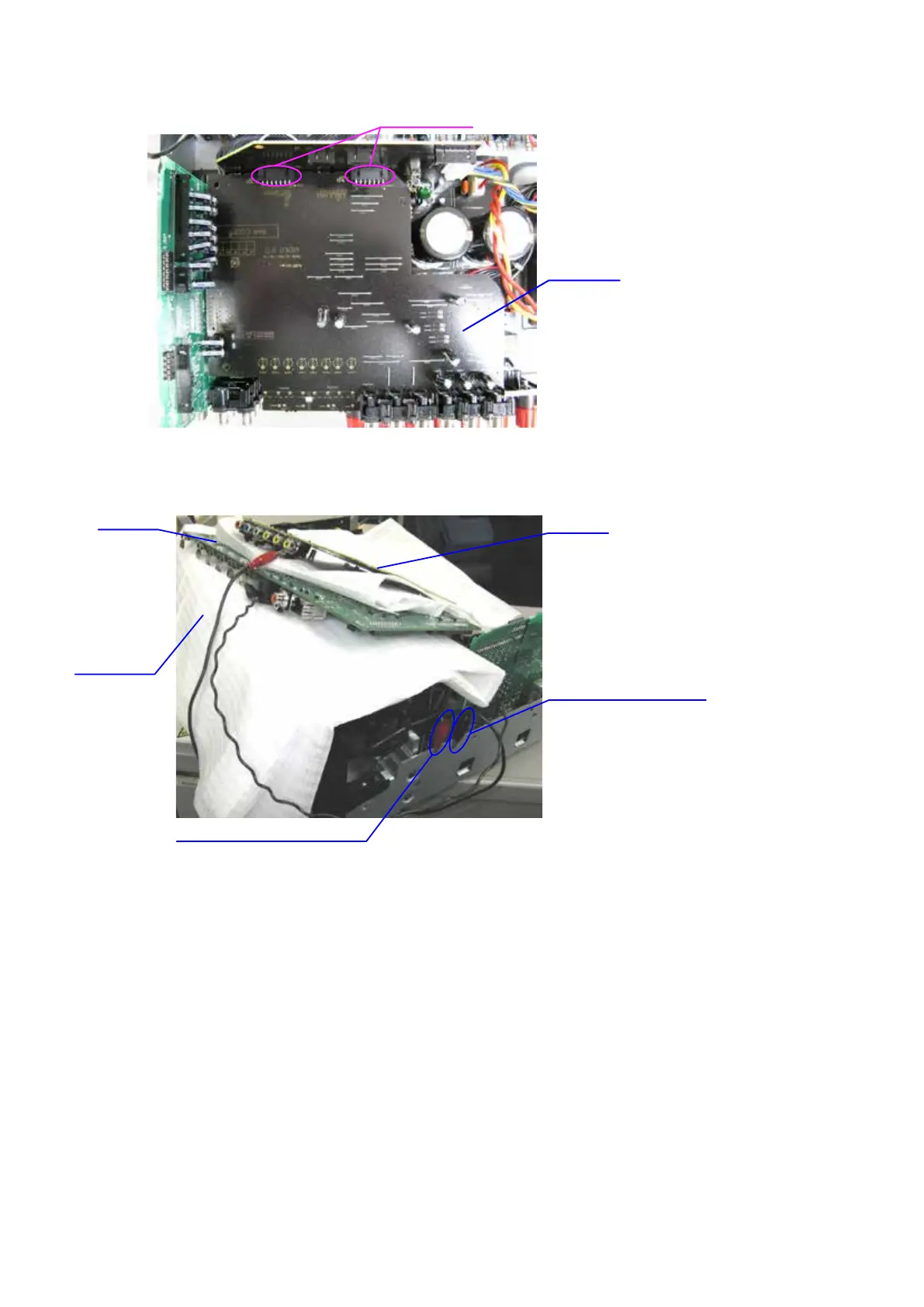

(3) Detach PCB HDMI from the chassis, and turn it over.
Please put an insulation sheet that is larger than PCB HDMI under PCB.
b
Connect the ground point of PCB to the chassis with a ground lead or the like.
PCB VIDEO
Board to board
PCB HDMI
Insulation sheet
CHASSIS-COMPOSIT CONNECTOR
CHASSIS-HDMI CONNECTOR
PCB VIDEO
